Citrix ADC MPX Series User Manual

Citrix ADC MPX
Citrix ADC MPX 25xxxTA
October 25, 2019
The Citrix ADC MPX 25100TA, MPX 25160TA, and MPX 25200TA are 2U appliances. Each model has two
8-core processors, 128 GB of memory, 8X40GE (QSFP+) ports.
The front panel of the MPX 25100TA, MPX 25160TA, and MPX 25200TA have (8X40GE QSFP+) ports.

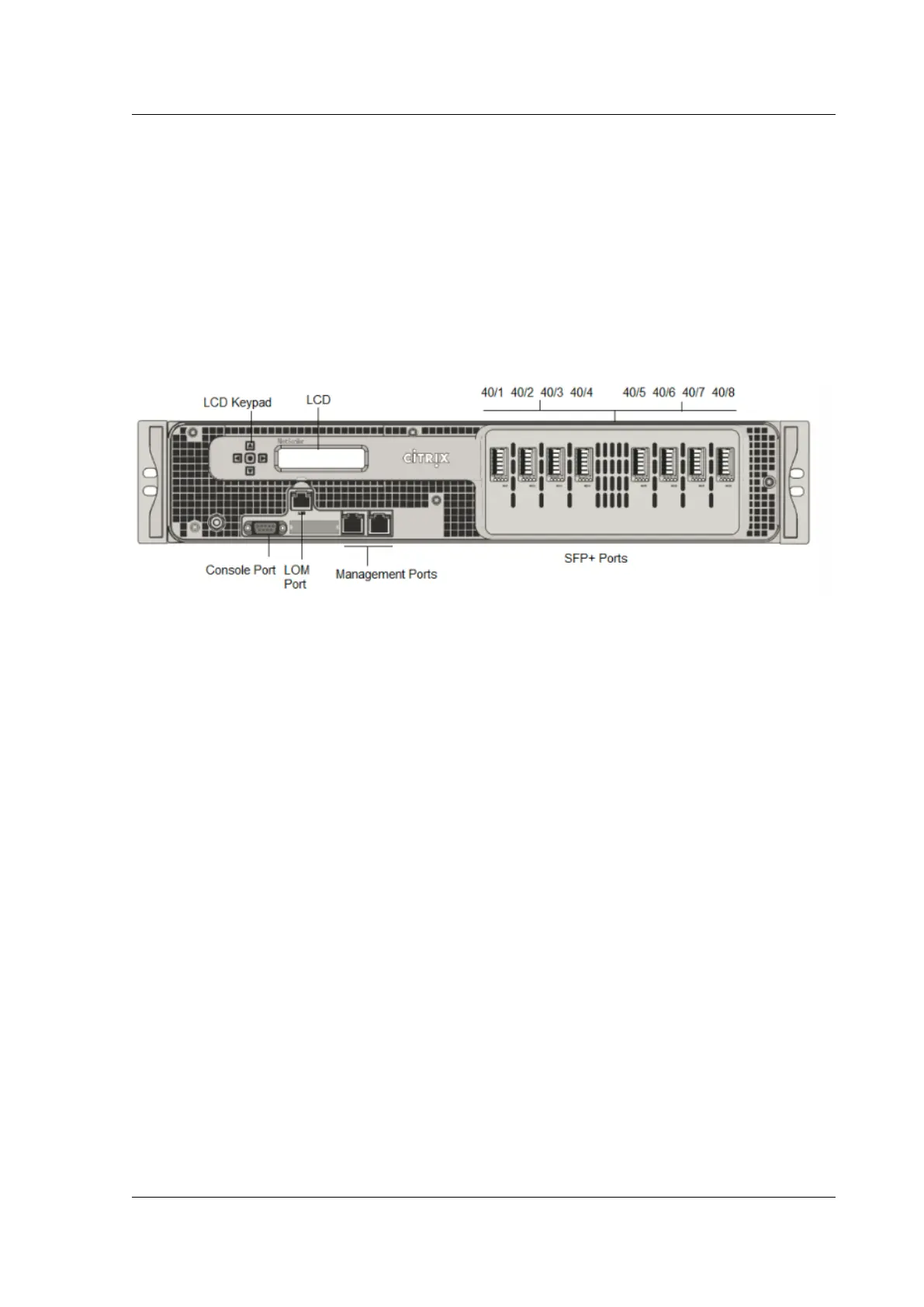

Figure 1. Citrix ADC MPX 25100TA, MPX 25160TA, and MPX 25200TA, front panel
The Citrix ADC MPX 25100TA, MPX 25160TA, and MPX 25200TA appliances have the following ports:
• RS232 serial Console Port.
• 10/100Base-T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base-T copper Ethernet Management Ports (RJ45), numbered 0/1 and 0/2 from
le to right. These ports are used to connect directly to the appliance for system administration
functions.
• Network Ports, 8 X 40GE QSFP+ ports.
Note the following points regarding the network ports on MPX 25100TA appliances:
• 10G ports do not support 1G copper or 1G fiber transceivers.
• 40G ports do not support 10G and 1G transceivers.
Figure 2. Citrix ADC MPX 25100TA, MPX 25160TA, back panel.
© 1999-2019 Citrix Systems, Inc. All rights reserved. 72

Citrix ADC MPX Series Specifications

General

Type	Application Delivery Controller
Memory	Up to 256 GB
Power Supply	Redundant
Product Series	MPX
Ports	10/25/40/100 Gbps Ethernet
Operating System	Citrix ADC
Management	Citrix ADM
Form Factor	Rack-mountable
