Citrix ADC MPX
• Four 40G QSFP+ ports
• 16 10GBASE-X SFP+ ports
• Two 10/100/1000BASE-T, RJ45 ports
• One 10/100BASE-T RJ-45 LOM port
The following figure shows the back panel of the T1120 appliance.

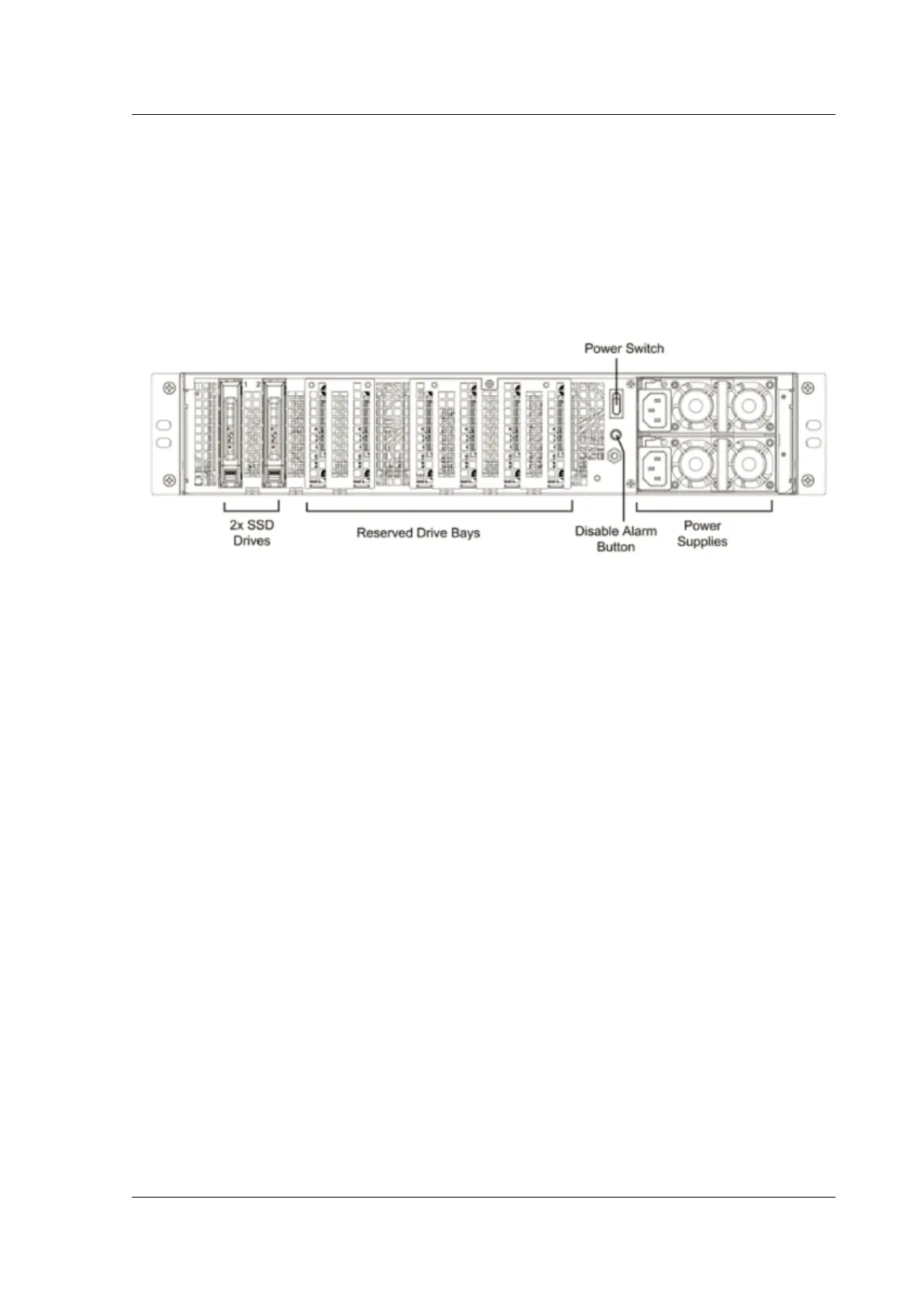

Figure 2. Citrix ADC T1120 back panel
The following components are visible on the back panel of the T1120 appliance:
• 240 GB removable solid-state drive that is used to store the Citrix ADC soware.
• Power switch, which turns o power to the appliance, just as if you were to unplug the power
supply. Press the switch for less than two seconds to turn o the power.
• Disable alarm button. This button is functional only when the appliance has two power sup-
plies. Press this button to stop the power alarm from sounding when you have plugged the ap-
pliance into only one power outlet or when one power supply is malfunctioning and you want
to continue operating the appliance until it is repaired.
• Two power supplies, each rated at 1000 watts, 100-240 volts. Each power supply has an LED
that indicates the status of the power supply.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see Installing the Hardware.
For information about performing initial configuration of your appliance, see Initial Configuration.
Citrix ADC T1200
February 25, 2019
The Citrix ADC T1200 is a 2U appliance, with a dual-core processor and 256 GB memory.
