Citrix ADC MPX Series User Manual

Citrix ADC MPX
Citrix ADC MPX 14xxx FIPS
October 25, 2019
Note
For information about configuring a Citrix ADC MPX 14030/14060/14080 FIPS appliance, see Con-
figuring the MPX 14000 FIPS appliance topic.
The Citrix ADC models MPX 14030 FIPS, MPX 14060 FIPS, and MPX 14080 FIPS are 2U appliances. Each
model has 2 quad-core processors, 64 GB of memory, sixteen 10G SFP+ ports (16x10G SFP+).

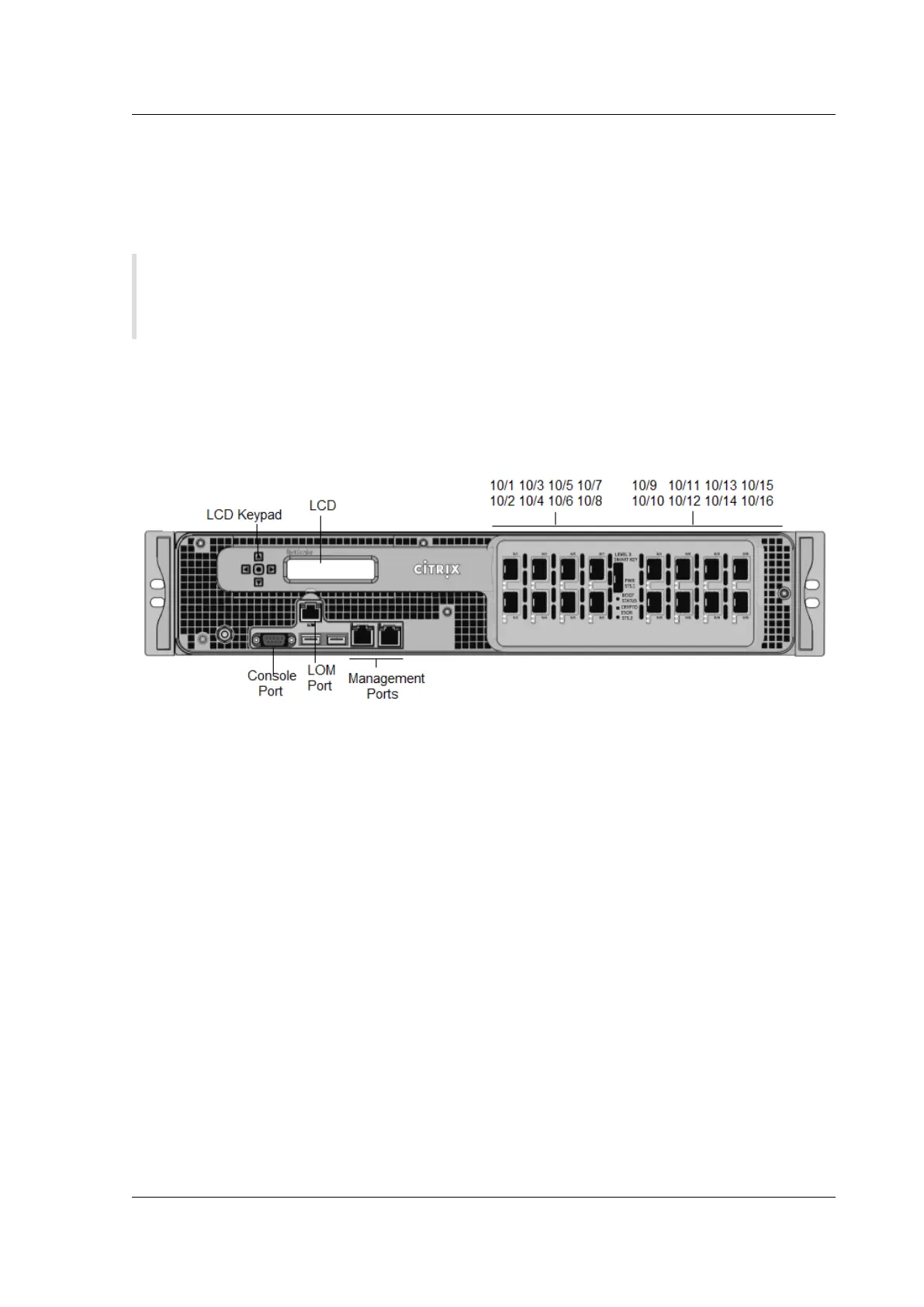

The following figure shows the front panel of the MPX 14030/14060/14080 FIPS appliances.
Figure 1. Citrix ADC MPX 14030/14060/14080 FIPS, front panel
The Citrix ADC MPX 14030/14060/14080 FIPS appliances have the following ports:
• RS232 serial Console Port.
• 10/100Base-T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base-T copper Ethernet Management Ports (RJ45), numbered 0/1 and 0/2 from
le to right. These ports are used to connect directly to the appliance for system administration
functions.
• Sixteen 10G SFP+ ports.
Note:
• 10G ports do not support 1G copper or 1G fiber transceivers.
• 40G ports do not support 10G and 1G transceivers.
The following figure shows the back panel of the MPX 14030/14060/14080 FIPS appliances.
Figure 2. Citrix ADC MPX 14030/14060/14080 FIPS appliance, back panel
