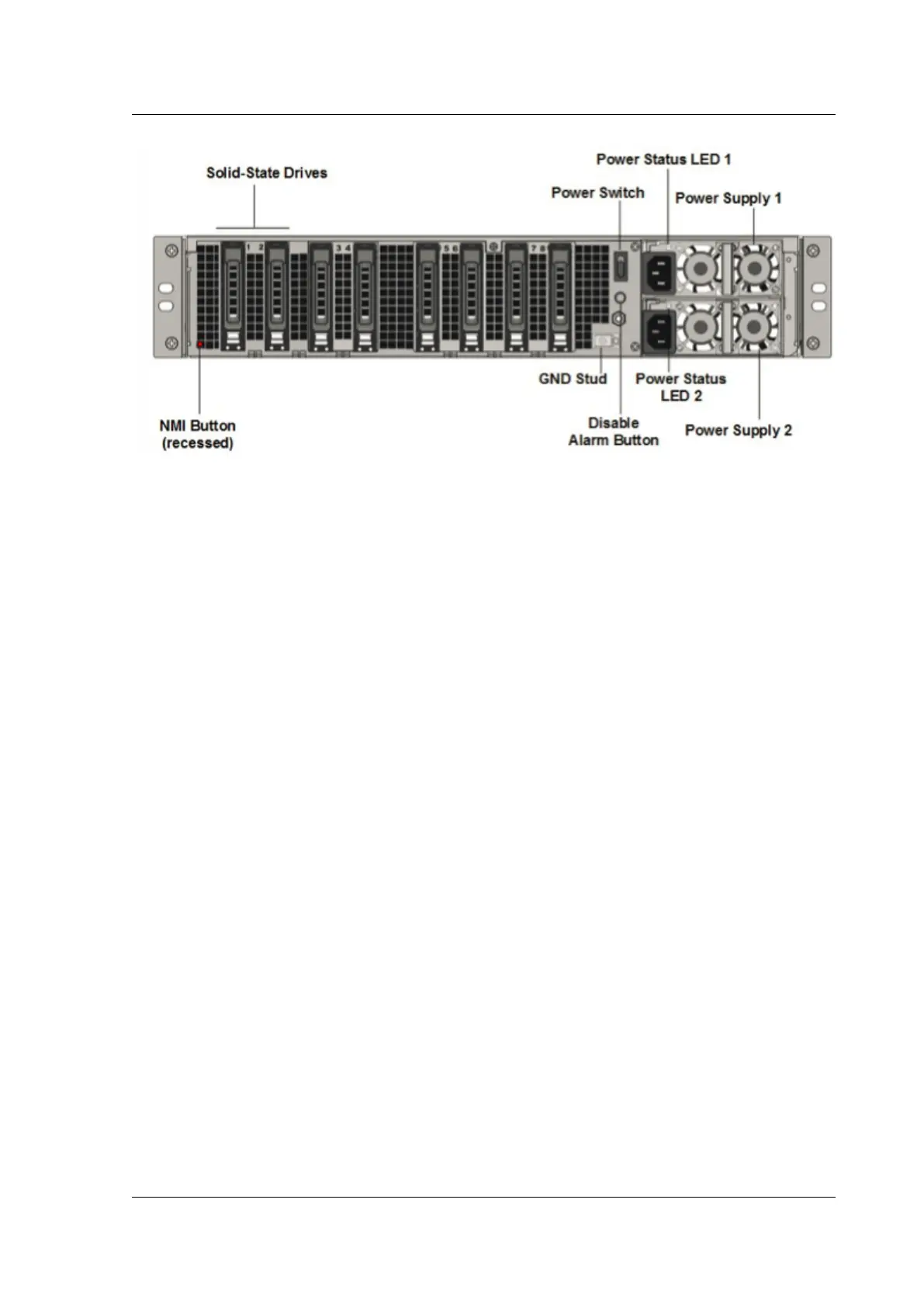

The following components are visible on the back panel of the MPX 14xxx-40S appliance:
• Two 300 GB removable solid-state drives. These appliances have a redundant array of indepen-
dent disks (RAID) devices. In a RAID configuration, the same data is stored on multiple drives to
improve performance, increase storage capacity, lower the risk of data loss, and provide fault
tolerance. The two SSDs store the same data. If one fails and you replace it, the new SSD mirrors
the other one.
• Power switch, which turns the power to the appliance on or o. Press the switch for less than
two seconds to turn o the power.
• Two powersupplies, each power supply is ratedat 1000 watts, 100–240 volts. Each power supply
has an LED that indicates the status of the power supply, as described in Common Hardware
Components.
• Disable alarm button. This button is functional only when the appliance has two power supplies.
Press this button to stop the power alarm from sounding when:
– You have plugged the appliance into only one power outlet
– One power supply is malfunctioning and you want to continue operating the appliance
until it is repaired.
• Non-maskable interrupt (NMI) button that is used at the request of Technical Support to initiate
a core dump. To press this red button, which is recessed to prevent unintentional activation,
use a pen, pencil, or other pointed object. The NMI Button is also available remotely over the
network in the LOM GUI, in the Remote Control menu. For more information about lights out
management port of the appliance, see Lights out management port of the Citrix ADC MPX ap-
pliance.
