Citrix ADC MPX
Citrix ADC MPX 14xxx-40S
October 25, 2019
The Citrix ADC MPX 14040-40S, MPX 14060-40S, MPX 14080-40S, MPX 14100-40S are 2U appliances.
Each model has two 6-core processors, 64 GB of memory, four 40G QSFP+ ports, and eight 10G SFP+
ports.
The following figure shows the front panel of the 14xxx-40S appliance.

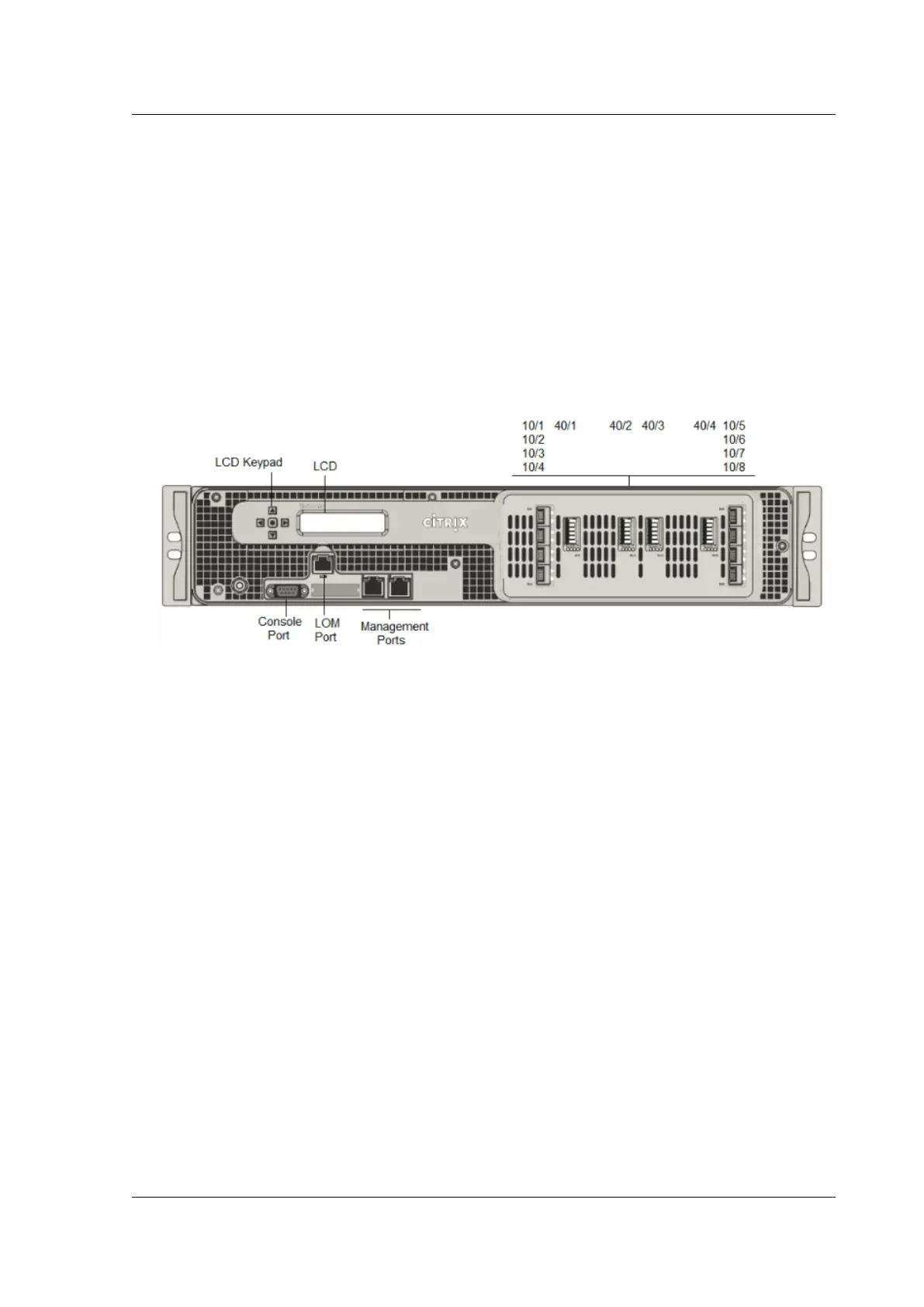

Figure 1. Citrix ADC MPX 14040/14060/14080/14100-40S (4x40G QSFP+, 8x10G SFP+), front panel
The Citrix ADC MPX 14xxx-40S appliances have the following ports:
• RS232 serial Console Port.
• 10/100Base-T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base-T copper Ethernet management ports (RJ45), also called Management
ports, numbered 0/1 and 0/2 from le to right. These ports are used to connect directly to the
appliance for system administration functions.
• Network Ports, four 40G QSFP+, eight 10G SFP+ ports.
The following figure shows the back panel of the 14xxx-40S appliance.
Figure 2. Citrix ADC MPX 14020/14020/14060/14080/14100-40S (4x40G QSFP+, 8x10G SFP+), back
panel
