• Four power supplies, each rated at 750 watts, 100-240 volts. A minimum of two power supplies
are required for proper operation. The extra power supplies act as backup. Each power supply
has an LED that indicates the status of the power supply, as described in Common hardware
components.
• Power switch, which turns o power to the appliance. Press the switch for less than two seconds
to turn o the power.
• Two 256 GB removable solid-state drives. The lemost solid-state drive stores the Citrix ADC
soware. The other solid-state drive stores user data.
• Two 1TB removable hard disk drives that are used to store user data.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see Installing the Hardware.
For information about performing initial configuration of your appliance, see Initial Configuration.
Citrix ADC MPX 241xx
February 25, 2019
The Citrix ADC MPX 24100/24150 are 2U appliances. Each model has two 8-core processors and 256
gigabytes (GB) of memory. The MPX 24100/24150 appliances are available in the twelve 1G SFP ports
and twenty-four 10G SFP+ ports (12x1G SFP + 24x10G SFP+) configuration.
The following figure shows the front panel of the MPX 24100/24150 (12x1G SFP + 24x10G SFP+) appli-
ance.

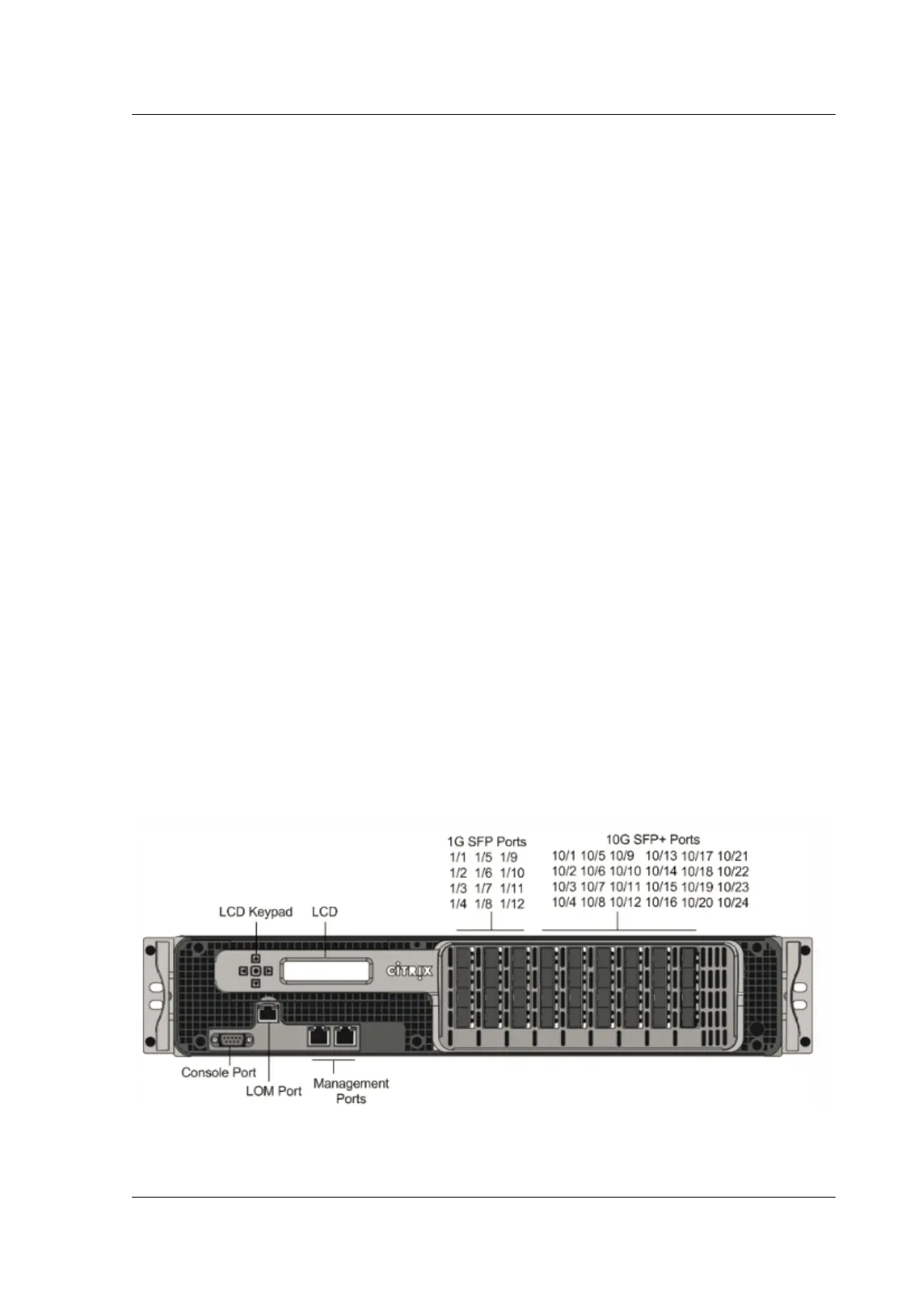

Figure 1. Citrix ADC MPX 24100/24150 (12x1G SFP + 24x10G SFP+), front panel
The Citrix ADC MPX 24xxx appliances have the following ports:
© 1999-2019 Citrix Systems, Inc. All rights reserved. 66

Citrix ADC MPX Series Specifications

General

Type	Application Delivery Controller
Memory	Up to 256 GB
Power Supply	Redundant
Product Series	MPX
Ports	10/25/40/100 Gbps Ethernet
Operating System	Citrix ADC
Management	Citrix ADM
Form Factor	Rack-mountable
