Citrix ADC MPX

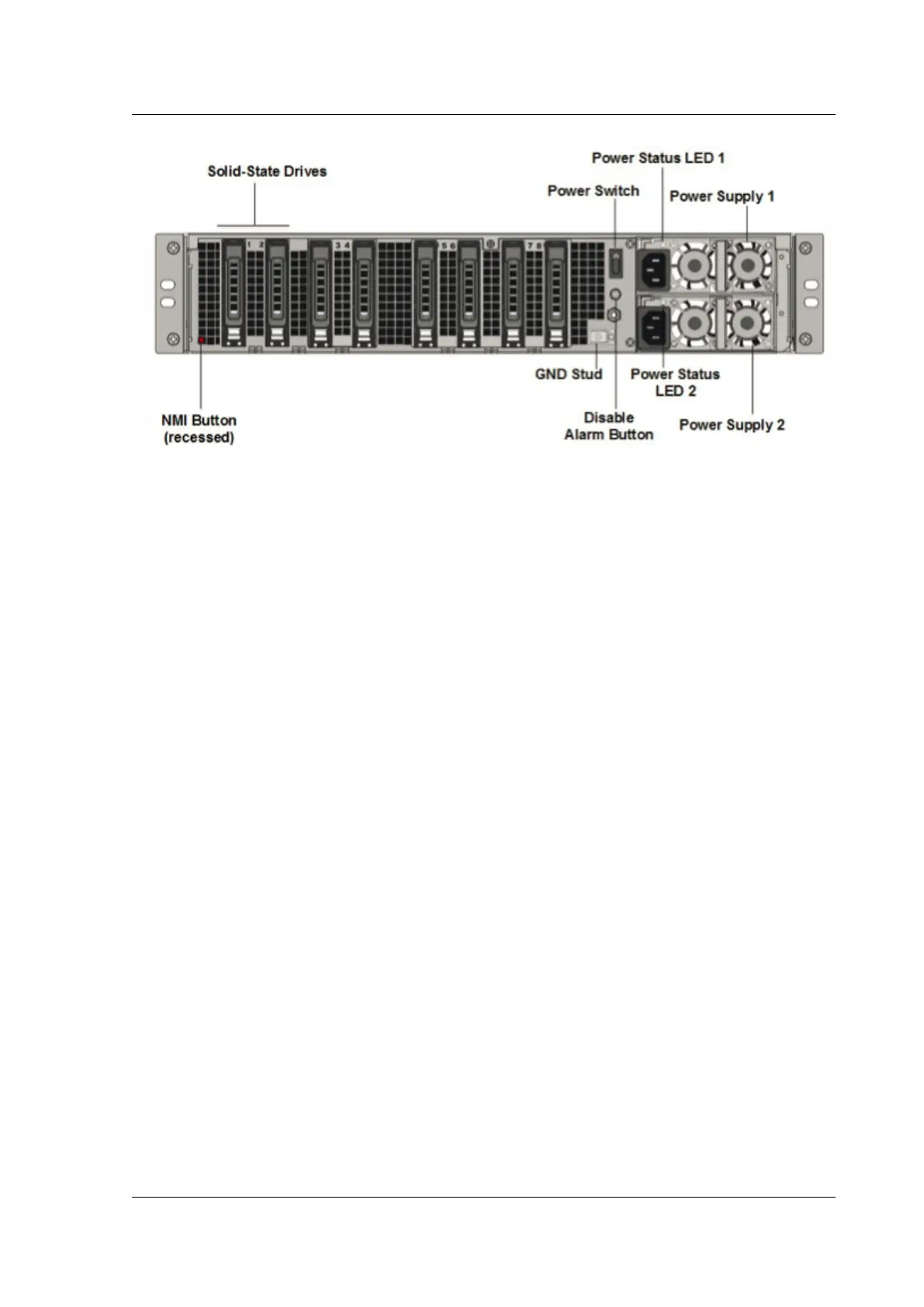

The following components are visible on the back panel of the MPX 14xxx-40G appliance:
• Two 300 GB removable solid-state drives. These appliances are a redundant array of indepen-
dent disks (RAID) devices. In a RAID configuration, the same data is stored on multiple drives to
improve performance, increase storage capacity, lower the risk of data loss, and provide fault
tolerance. The two SSDs store the same data. If one fails and you replace it, the new SSD mirrors
the other one.
• Power switch. This switch turns the power to the appliance on or o. Press the switch for less
than two seconds to turn o the power.
• Two power supplies. Each power supply is rated at 1000 watts, 100–240 volts. Each power sup-
ply has an LED that indicates the status of the power supply, as described in Common hardware
components.
• Disable alarm button. This button is functional only when the appliance has two power sup-
plies. Press this button to stop the power alarm from sounding when:
– You have plugged the appliance into only one power outlet
– One power supply is malfunctioning and you want to continue operating the appliance
until it is repaired.
• Non-maskable interrupt (NMI) button. This button is used at the request of Technical Support
to initiate a core dump. To press this red button, which is recessed to prevent unintentional
activation, use a pen, pencil, or other pointed object. The NMI Button is also available remotely
over the network in the LOM GUI, in the Remote Control menu. For more information about
lights out management port of the appliance, see Lights out management port of the Citrix ADC
MPX appliance topic.
