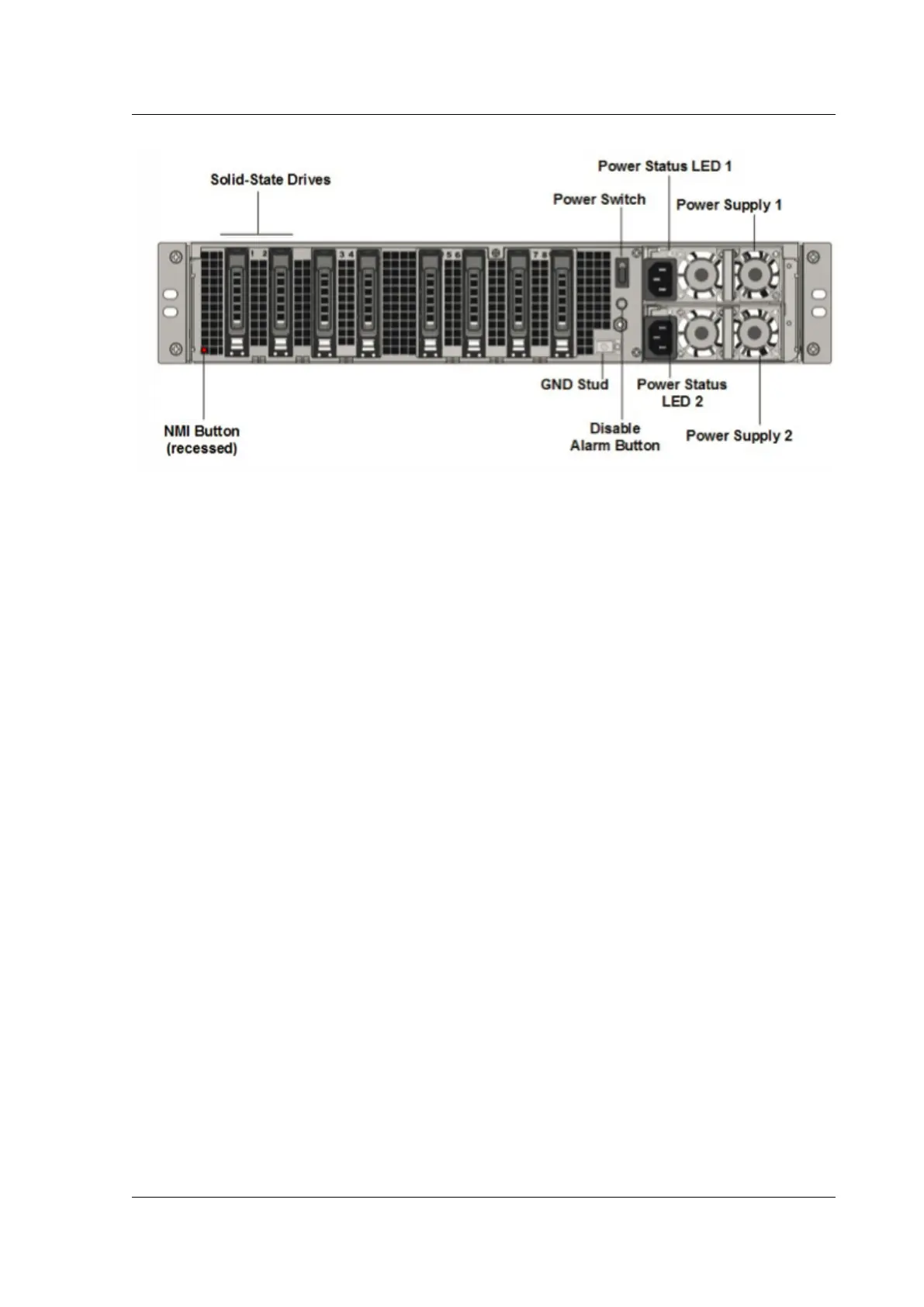

The following components are visible on the back panel of the MPX 25100T/25160T appliance:
• One 300 GB removable solid-state drive.
• Power switch, which turns power to the appliance on or o. Press the switch for less than two
seconds to turn o the power.
• Two power supplies, each rated at 1000 watts, 100-240 volts. Max power consumption is 717 W;
typical power consumption is 594 W. Each power supply has an LED that indicates the status of
the power supply, as described in in Common hardware components.
• Disable alarm button, which is functional only when the appliance has two power supplies.
Press this button to stop the power alarm from sounding when you have plugged the appliance
into only one power outlet, or when one power supply is malfunctioning, and you want to con-
tinue operating the appliance until it is repaired.
• Non-maskable interrupt (NMI) Button, used at the request of Technical Support to initiate a core
dump. To press this red button, which is recessed to prevent unintentional activation, use a pen,
pencil, or other pointed object. The NMI Button is also available remotely over the network in
the LOM GUI, in the Remote Control menu. For more information on the Lights Out Management
Port of the appliance, see Lights out management port of the Citrix ADC MPX appliance.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see Installing the Hardware.
For information about performing initial configuration of your appliance, see Initial Configuration.
