Citrix ADC MPX Series User Manual

Citrix ADC MPX

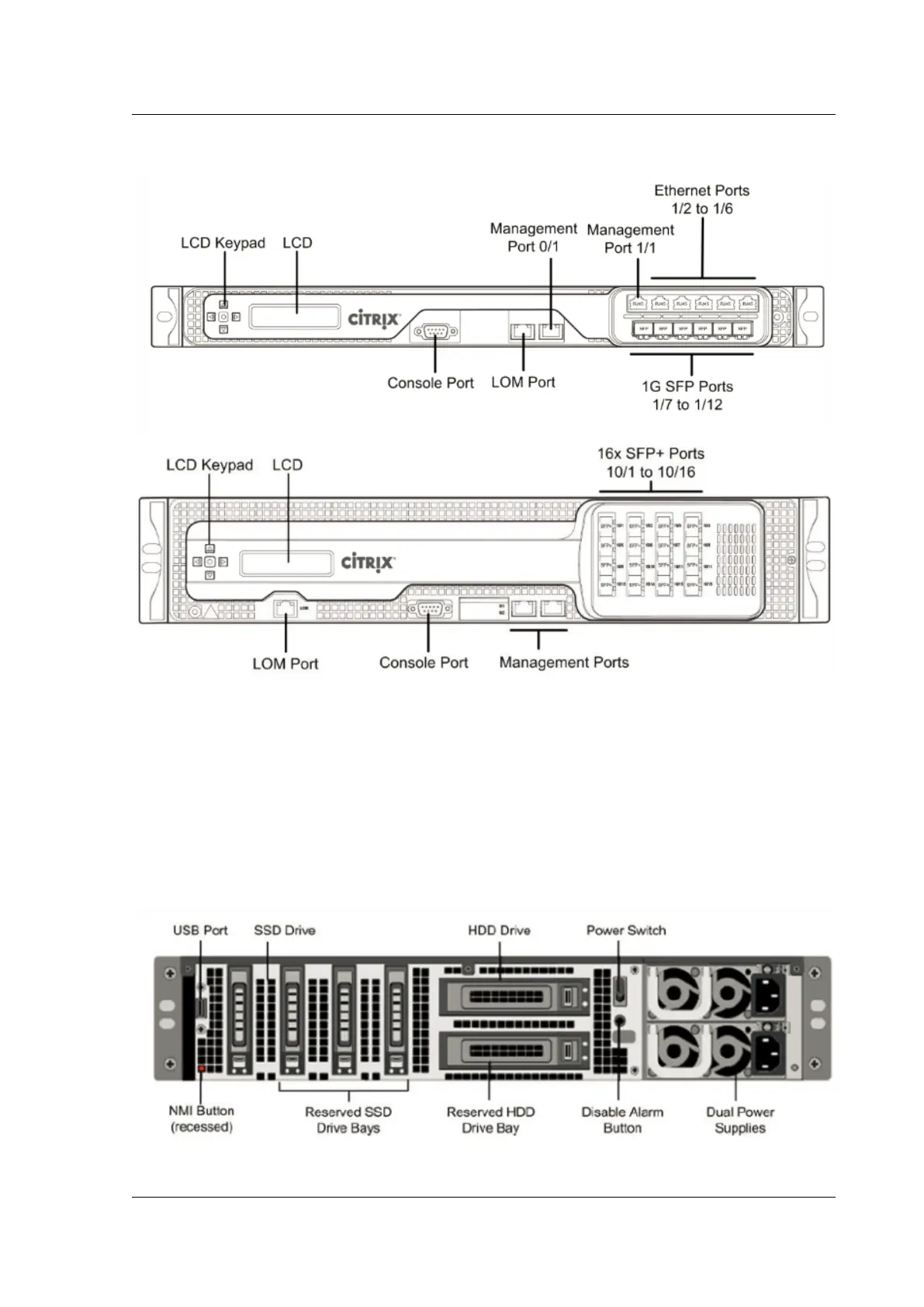

Figure 1. Citrix ADC T1100 (Gen1) and T1100 (16) front panels
The T1100 appliance has the following ports:
• Eight 10GBASE-X SFP+ data plane ports [T1100 (Gen1)]
• 16 10GBASE-X SFP+ data plane ports [T1100 (16)]
• Two 10/100/1000BASE-T, RJ45 management plane ports
• One 10/100BASE-T, RJ-45 LOM ports
The following figure shows the back panel of the T1100.
Figure 2. Citrix ADC T1100 back panel
© 1999-2019 Citrix Systems, Inc. All rights reserved. 84

Citrix ADC MPX Series Specifications

General

Type	Application Delivery Controller
Memory	Up to 256 GB
Power Supply	Redundant
Product Series	MPX
Ports	10/25/40/100 Gbps Ethernet
Operating System	Citrix ADC
Management	Citrix ADM
Form Factor	Rack-mountable
