Citrix ADC MPX

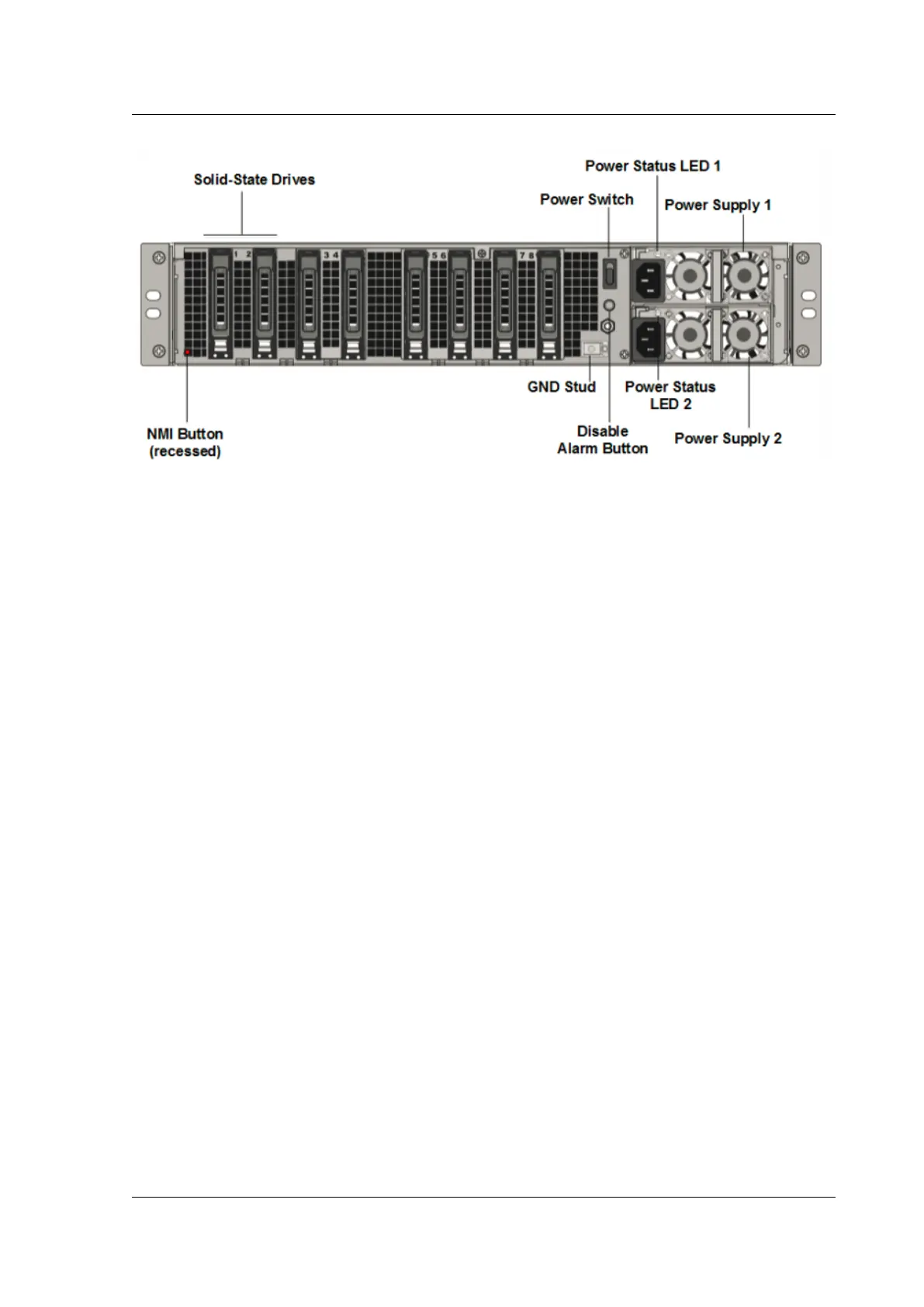

The following components are visible on the back panelof the MPX 14020/14030/14040/14060/14080/14100
appliance:
• Two 240 GB removable solid-state drives (SSDs). These appliances are a redundant array of in-
dependent disks (RAID) devices. In a RAID configuration, the same data is stored on multiple
drives to improve performance, increase storage capacity, lower the risk of data loss, and pro-
vide fault tolerance. The two SSDs store the same data. If one fails and you replace it, the new
SSD mirrors the other one.
• Power switch, which turns power to the appliance on or o. Press the switch for less than two
seconds to turn o the power.
• Two power supplies, each rated at 1000 watts, 100–240 volts. Each power supply has an LED
that indicates the status of the power supply, as described in Common hardware components.
• Disable alarm button, which is functional only when the appliance has two power supplies.
Press this button to stop the power alarm from sounding when:
– You have plugged the appliance into only one power outlet
– One power supply is malfunctioning and you want to continue operating the appliance
until it is repaired.
• Non-maskable interrupt (NMI) Button, used at the request of Technical Support to initiate a core
dump. To press this red button, which is recessed to prevent unintentional activation, use a pen,
pencil, or other pointed object. The NMI button is also available remotely over the network in
the LOM GUI, in the Remote Control menu.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see Installing the Hardware.
For information about performing initial configuration of your appliance, see Initial Configuration.
