Citrix ADC MPX
The following figure shows the back panel of the MPX 11500/13500/14500/16500/18500/20500 appli-
ance.

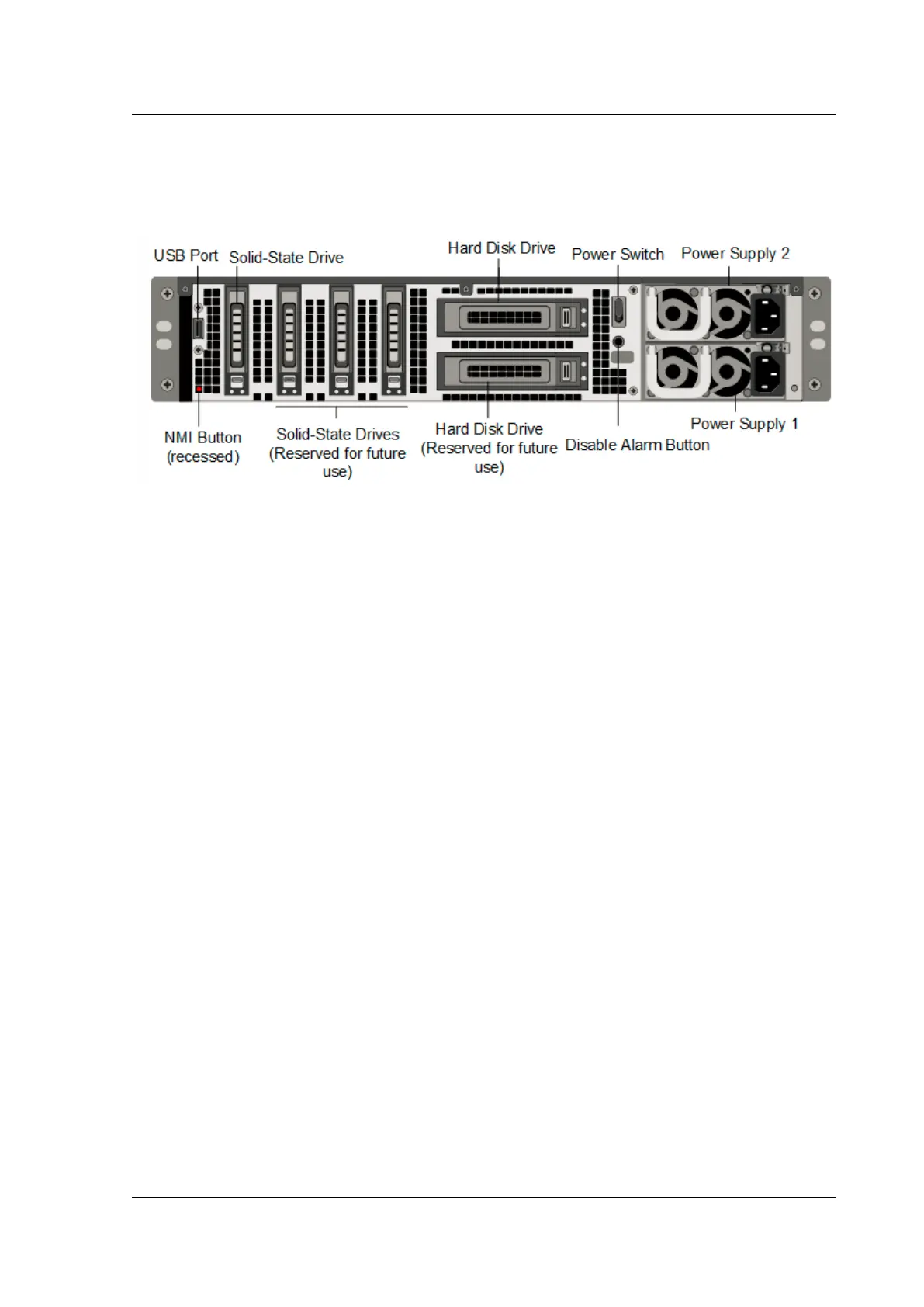

Figure 2. Citrix ADC MPX 11500/13500/14500/16500/18500/20500 appliance, back panel
The following components are visible on the back panelof the MPX 11500/13500/14500/16500/18500/20500
appliance:
• 160 GB removable solid-state drive that is used to store the Citrix ADC soware.
• USB port (reserved for a future release).
• Power switch, which turns o power to the appliance, just as if you were to unplug the power
supply. Press the switch for five seconds to turn o the power.
• Non-maskable interrupt (NMI) Button that is used at the request of Technical Support and pro-
duces a core dump on the appliance. You must use a pen, pencil, or other pointed object to
press this red button, which is recessed to prevent unintentional activation.
• Two removable hard-disk drives that are used to store user data.
• Disable alarm button. This button is functional only when the appliance has two power sup-
plies.
Press this button to stop the power alarm from sounding when you have plugged the appliance into
only one power outlet or when one power supply is malfunctioning and you want to continue operat-
ing the appliance until it is repaired.
• Two power supplies, each rated at 960 watts, 110-220 volts. Maximum power consumption is
650 watts. Typical power consumption is 500 watts.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see “Installing the Hardware.”
For information about performing initial configuration of your appliance, see “Initial Configuration.”
