Citrix ADC MPX Series User Manual

Citrix ADC MPX
Note: The USB Port is reserved for a future release.

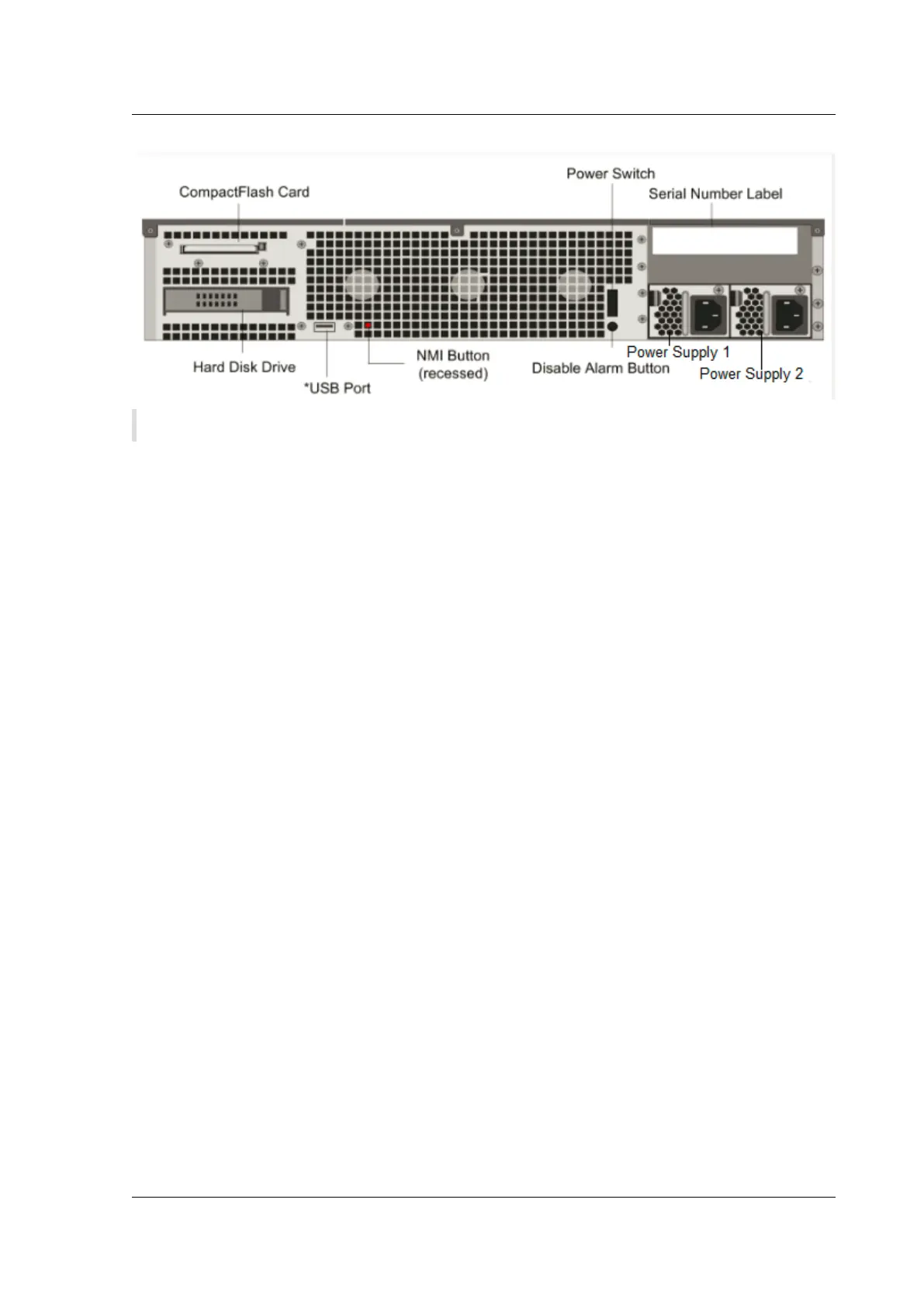

The following components are visible on the back panel of the MPX 9700/10500/12500/15500, includ-
ing the 10G model and FIPS model:
• Four GB removable CompactFlash Card that is used to store the Citrix ADC soware.
• Power Switch, which turns o power to the appliance, just as if you were to unplug the power
supply. Press the switch for five seconds to turn o the power.
• Removable Hard Disk Drive that is used to store user data.
• USB Port (reserved for a future release).
• Non-maskable interrupt (NMI) Button that is used at the request of Technical Support and pro-
duces a core dump on the appliance. You must use a pen, pencil, or other pointed object to
press this red button, which is recessed to prevent unintentional activation.
• Disable Alarm Button. This button is functional only when the appliance has two power sup-
plies.
Press this button to stop the power alarm from sounding when you have plugged the appliance
into only one power outlet or when one power supply is malfunctioning and you want to con-
tinue operating the appliance until it is repaired.
• Two power supplies, each rated at 450 watts, 110-220 volts. Maximum power consumption is
360 watts.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see “Installing the Hardware.”
For information about performing initial configuration of your appliance, see “Initial Configuration.”
© 1999-2019 Citrix Systems, Inc. All rights reserved. 41

Citrix ADC MPX Series Specifications

General

Type	Application Delivery Controller
Memory	Up to 256 GB
Power Supply	Redundant
Product Series	MPX
Ports	10/25/40/100 Gbps Ethernet
Operating System	Citrix ADC
Management	Citrix ADM
Form Factor	Rack-mountable
