Citrix ADC MPX
• Eight 10G SFP+ ports numbered 10/1, 10/2, 10/3, and 10/4 on the top row from le to right, and
10/5, 10/6, 10/7, and 10/8 on the bottom row from le to right.

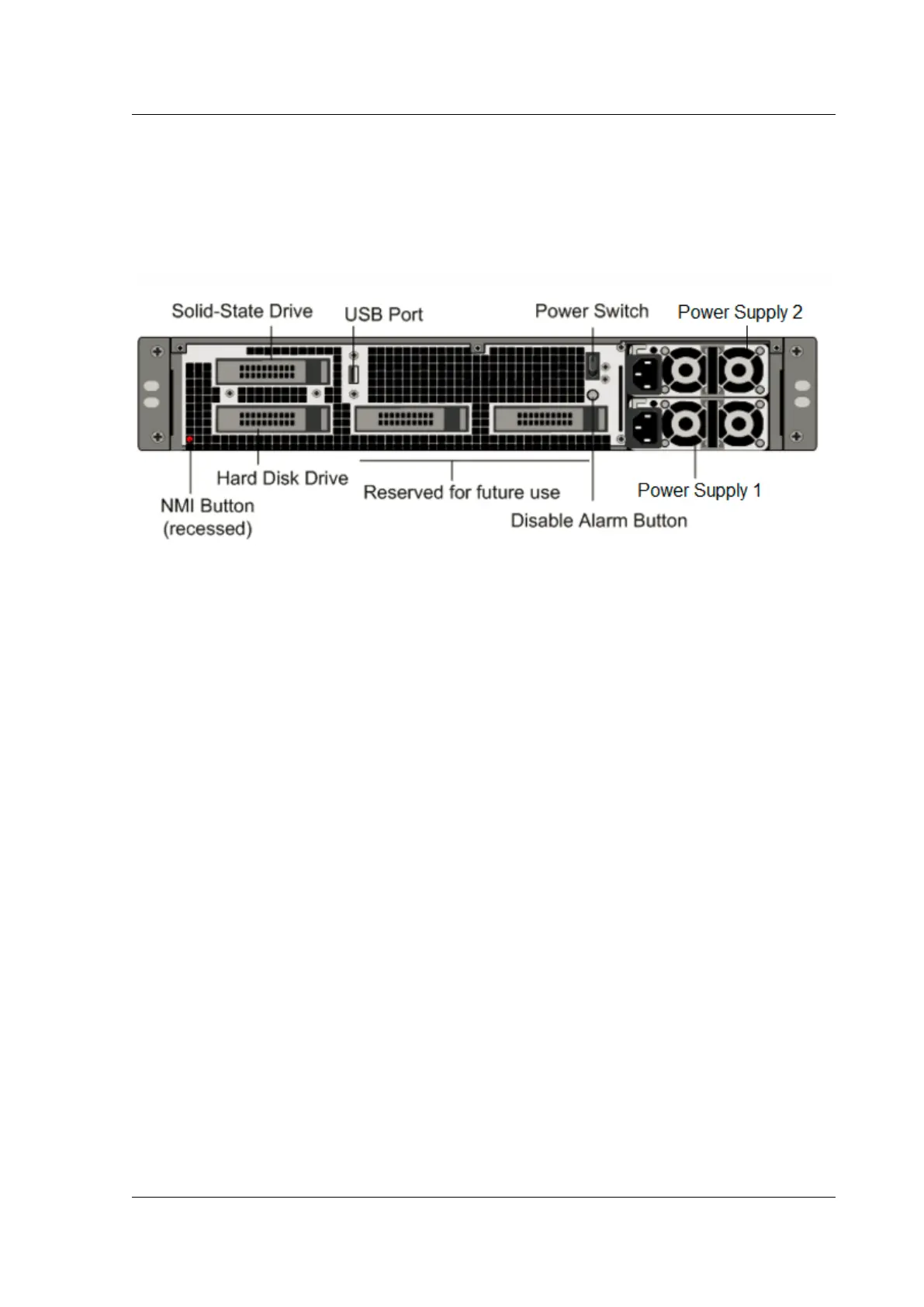

The following figure shows the back panel of the MPX 17500/19500/21500 appliance.
Figure 2. Citrix ADC MPX 17500/19500/21500 appliance, back panel
The following components are visible on the back panel of the MPX 17500/19500/21500 appliance:
• 160 GB removable solid-state drive that is used to store the Citrix ADC soware.
• USB port (reserved for a future release).
• Power switch, which turns o power to the appliance, just as if you were to unplug the power
supply. Press the switch for five seconds to turn o the power.
• Non-maskable interrupt (NMI) button that is used at the request of Technical Support and pro-
duces a core dump on the appliance. You must use a pen, pencil, or other pointed object to
press this red button, which is recessed to prevent unintentional activation.
• Removable hard-disk drive that stores user data.
• Disable alarm button. This button is functional only when the appliance has two power sup-
plies.
Press this button to stop the power alarm from sounding when you have plugged the appliance
into only one power outlet or when one power supply is malfunctioning and you want to con-
tinue operating the appliance until it is repaired.
• Two power supplies, each rated at 1000 watts, 110-220 volts. Maximum power consumption is
500 watts.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see Installing the Hardware.
For information about performing initial configuration of your appliance, see Initial Configuration.
© 1999-2019 Citrix Systems, Inc. All rights reserved. 61
