Citrix ADC MPX
Note: To use a cable with an RJ-45 converter, insert the optional converter provided into the
console port and attach the cable to it.
2. Insert the RJ-45 connector into the serial port of the computer or terminal.
Connect the power cable
The number of power cables shipped with an appliance depends on the number of power supplies
on the appliance. Appliances that come with two power cables can also operate if only one power
cable is connected. Appliances that come with four power cables can also operate if only two power
cables are connected. A separate ground cable might not be required, because the three-prong plug
provides grounding.
To connect the appliance to the power source
1. Connect the power cable to one of the inlet receptacles on the back of the appliance. Connect
the other end of the power cable to a power outlet.

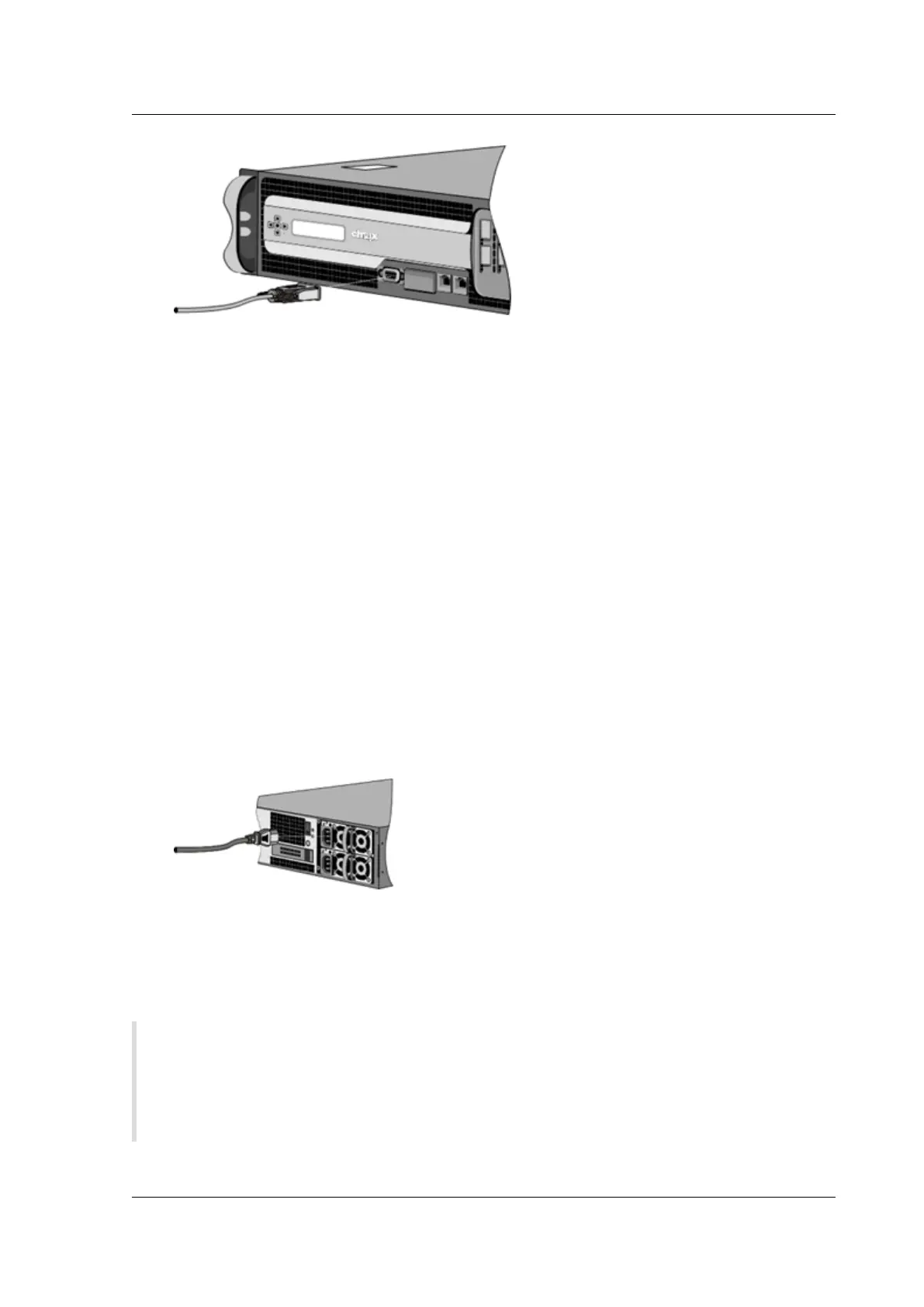

Figure 10. Insert a power cable
2. If your appliance has more than one power supply, repeat this process. The additional power
supply is a redundant, hot-swappable power supply.
3. The Citrix logo and the LCD on the front of the appliance illuminate aer the appliance starts,
and the LCD indicates the operational status of the appliance.
Note
Appliances with two power supplies emit a high-pitched alert if one power supply fails or if you
connect only one power cable to the appliance. Press the small red button on the back panel of
the appliance to silence the alarm.
