Citrix ADC MPX Series User Manual

Citrix ADC MPX
• Can I mix DAC and fiber transceivers on the same appliance?
Yes. You can mix DAC and fiber transceivers on the same appliance. Each 10G port supports both
options.
• Can I mix SFP+ fiber and DAC in ports that are part of the same link aggregation channel (LAC)?
No. There must be symmetry between all elements in the same LAC.
• Which transceivers use the MPO type connector?
Only 40G QSFP+ SR4 transceiver and 100G QSFP28 SR4 transceivers use the MPO type connec-
tor. All other fiber transceivers use the LC type connector.
• Are special adapters required for 25G, 50G, and 100G ports?
A 100G port can support five speeds: 10G, 25G, 40G, 50G, and 100G. 1G speed is not supported
on the 100G port. 50G and 100G ports use the same transceiver. The appliance determines the
speed, and not the port.
Only 50G/100G (QSFP28) and 40G (QSFP+) transceivers can be directly used on a QSFP28
interface. Use a QSA28 adapter on a QSFP28 interface to use 10G (SFP+) and 25G (SFP28)
transceivers.

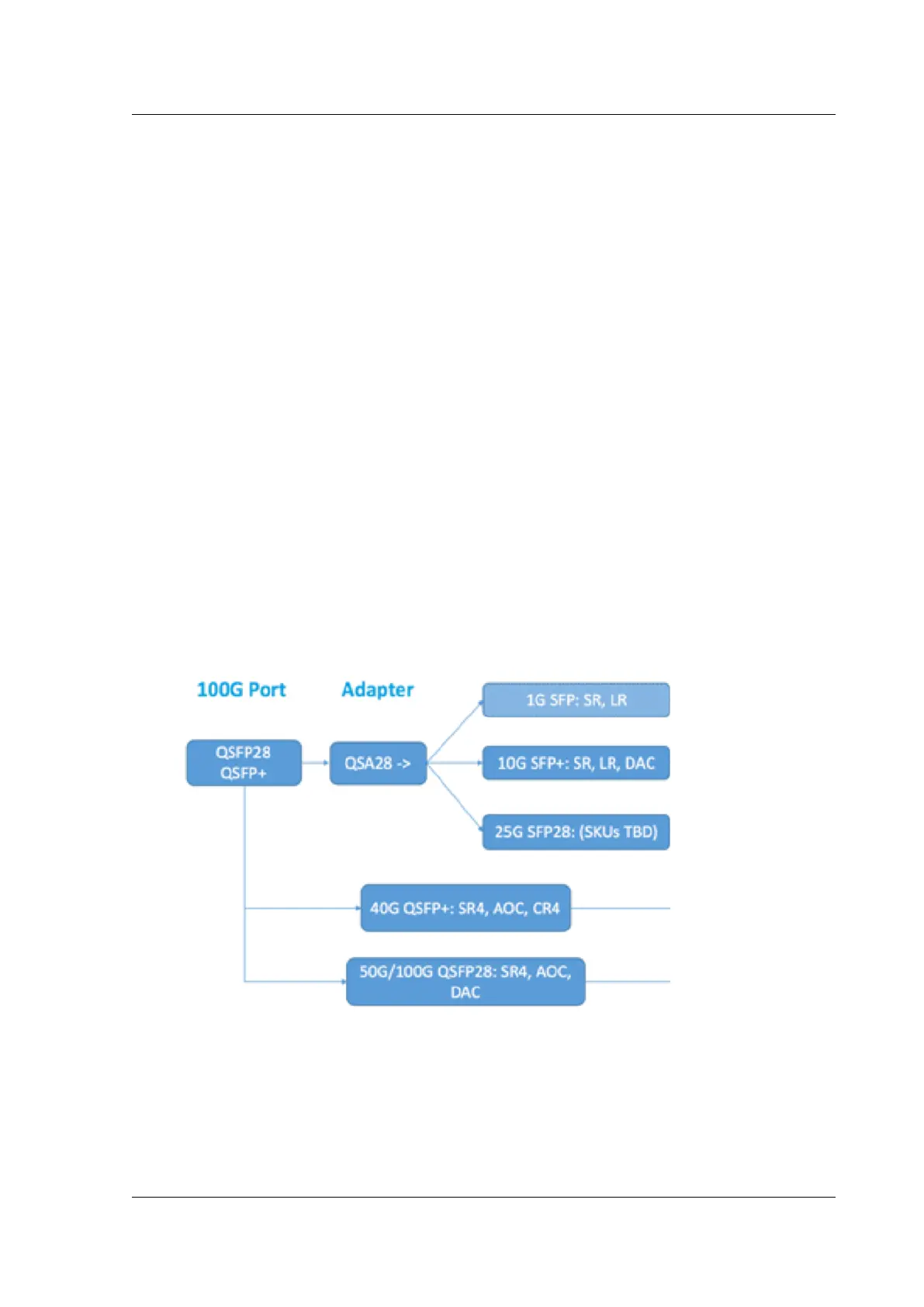

The following diagram shows the transceiver compatibility.
© 1999-2019 Citrix Systems, Inc. All rights reserved. 175

Citrix ADC MPX Series Specifications

General

Type	Application Delivery Controller
Memory	Up to 256 GB
Power Supply	Redundant
Product Series	MPX
Ports	10/25/40/100 Gbps Ethernet
Operating System	Citrix ADC
Management	Citrix ADM
Form Factor	Rack-mountable
