Citrix ADC MPX Series User Manual

Citrix ADC MPX
For information on the soware releases supported on the Citrix ADC hardware platforms, see
Hardware-Soware Release Matrix.

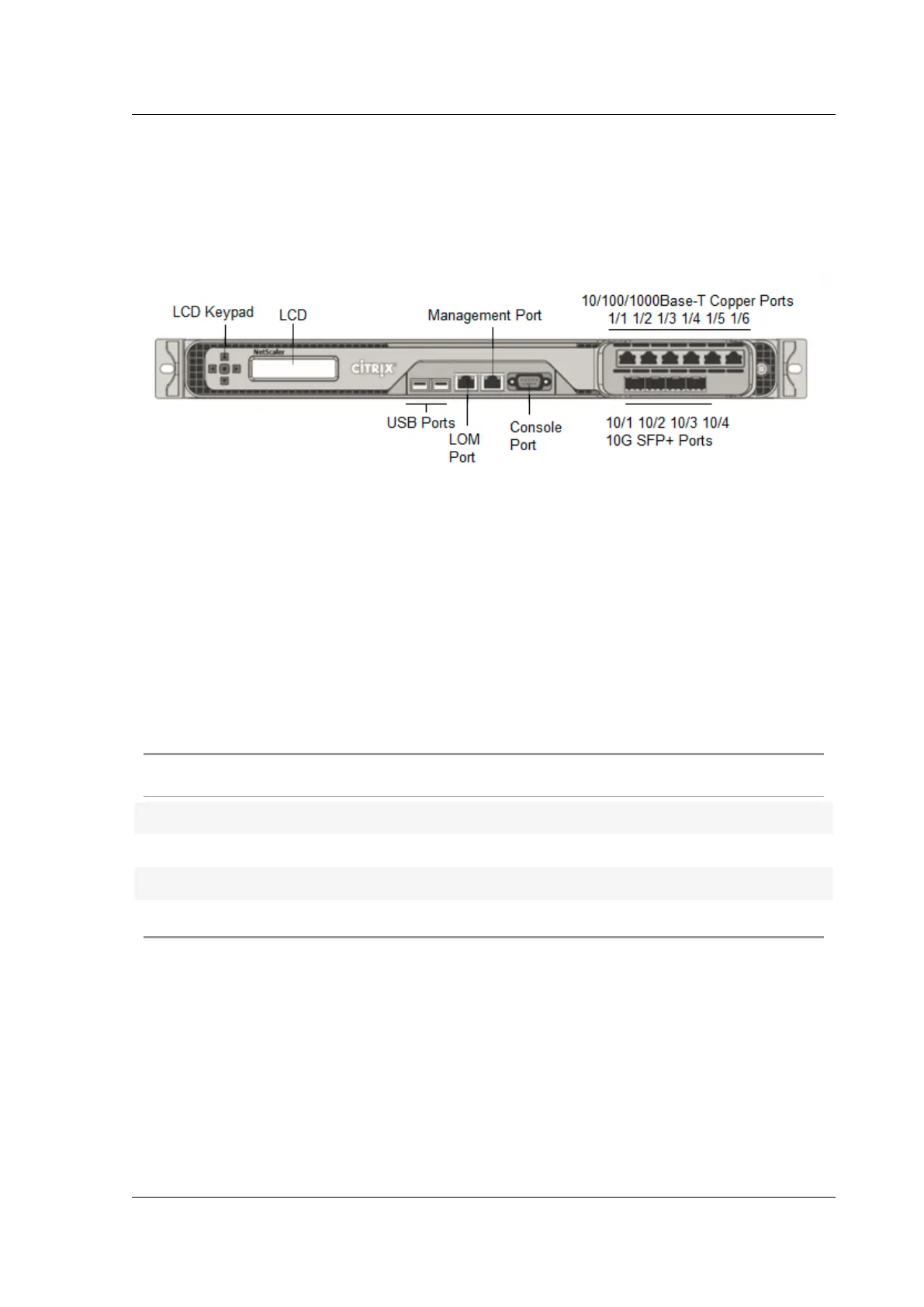

The following figure shows the front panel of the MPX 89xx series appliances.
Figure 1. Citrix ADC MPX 89xx, front panel
The Citrix ADC MPX 89xx series appliances have the following ports:
• RS232 serial Console Port.
• One 10/100/1000Base-T RJ45 copper Ethernet LOM Port. Use this port to remotely monitor and
manage the appliance independently of the Citrix ADC soware.
• One 10/100/1000Base-T RJ45 copper Ethernet Management Port, numbered 0/1. This port is
used to connect directly to the appliance for Citrix ADC administration functions.
• Six 10/100/1000Base-T RJ45 copper Ethernet Ports, numbered 1/1 to 1/6 from le to right.
• Four 10G/1G SFP+ Ethernet Ports, numbered 10/1 to 10/4 from le to right.
The following table indicates the LED status for the Management and LOM ports:
LED Color LED Indicates
OFF No connection or 10 Mbps speed
Flashing YELLOW Active
Flashing GREEN 100 Mbps speed
AMBER 1 Gbps speed
The following figure shows the back panel of the MPX 89xx appliance.
Figure 2. Citrix ADC MPX 89xx, back panel
© 1999-2019 Citrix Systems, Inc. All rights reserved. 37

Citrix ADC MPX Series Specifications

General

Type	Application Delivery Controller
Memory	Up to 256 GB
Power Supply	Redundant
Product Series	MPX
Ports	10/25/40/100 Gbps Ethernet
Operating System	Citrix ADC
Management	Citrix ADM
Form Factor	Rack-mountable
