Citrix ADC MPX
The Citrix ADC MPX 26xxx-50S appliances are 2U appliances. These appliances have two 14-core pro-
cessors and 256 GB of memory. The appliances have four 50G and 16 25G network ports.
For information about the soware releases supported on the Citrix ADC hardware platforms, see Cit-
rix ADC MPX hardware soware compatibility matrix.
The following figure shows the front panel of the Citrix ADC MPX 26xxx-50S appliances.
Figure 1. Citrix ADC MPX 26xxx-50S, front panel
The Citrix ADC MPX 26xxx-50S appliances have the following ports:
• RS232 serial console port.
• One 10/100/1000Base-T RJ45 copper Ethernet LOM Port. Use this port to remotely monitor and
manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base-T RJ45 copper EthernetManagement Ports, numbered 0/1 and 0/2. These
ports are used to connect directly to the appliance for Citrix ADC administration functions.
• Four 50G ports, numbered 50/1 to 50/4.
• Sixteen 25G ports, numbered 25/1 through 25/16.

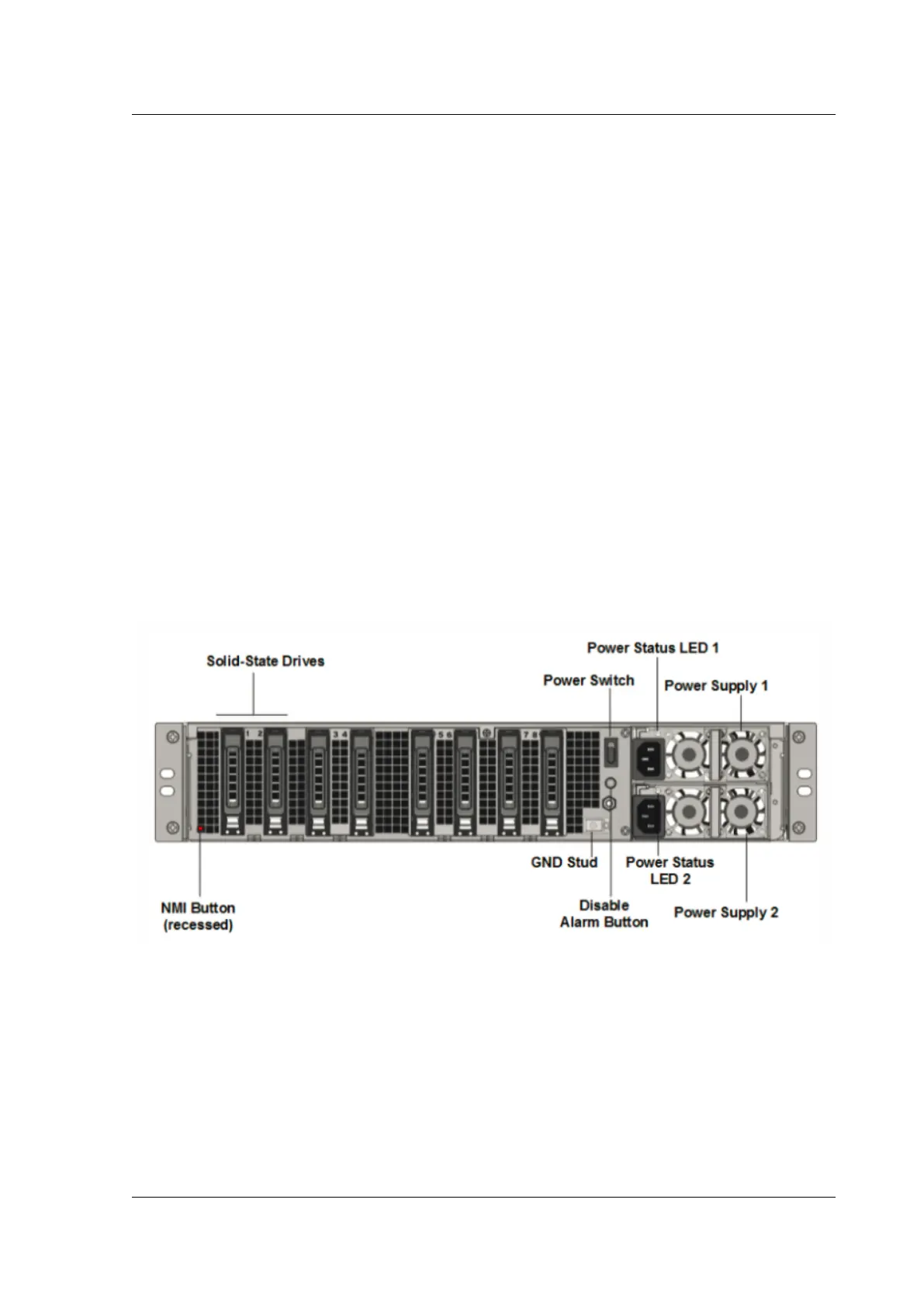

The following figure shows the back panel of the MPX 26xxx-50S appliances.
Figure 2. Citrix ADC MPX 26xxx-50S, back panel
The following components are visible on the back panel of the Citrix ADC MPX 26xxx-50S appliances:
• Two 480 GB removable solid-state drive (SSD). These appliances have a redundant array of in-
dependent disks (RAID) devices. In a RAID configuration, the same data is stored on multiple
drives to improve performance, increase storage capacity, lower the risk of data loss, and pro-
vide fault tolerance. The two SSDs store the same data. If one fails and you replace it, the new
SSD mirrors the other one.
• Power switch, which turns power to the appliance on or o.
