Citrix ADC MPX Series User Manual

Citrix ADC MPX
The following figure shows the front panel of the Citrix ADC MPX 26000-100G and Citrix ADC MPX
26000T-100G appliances.

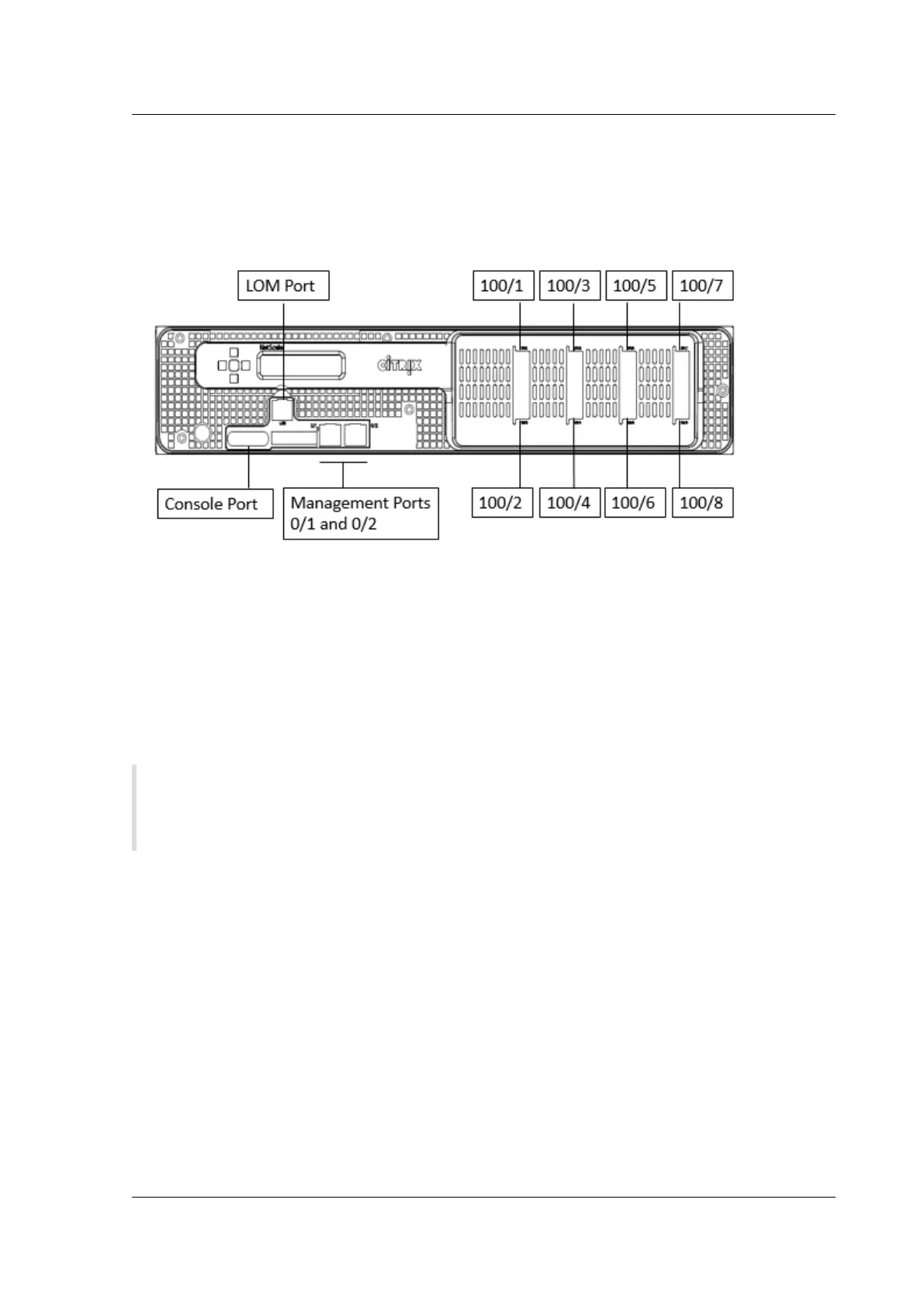

Figure 1. Citrix ADC MPX 26000-100G and Citrix ADC MPX 26000T-100G, front panel
The Citrix ADC MPX 26000-100G and Citrix ADC MPX 26000T-100G appliances have the following ports:
• RS232 serial Console Port.
• One 10/100/1000Base-T RJ45 copper Ethernet LOM Port. Use this port to remotely monitor and
manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base-T RJ45 copper EthernetManagement Ports, numbered 0/1 and 0/2. These
ports are used to connect directly to the appliance for Citrix ADC administration functions.
• Eight 100G Ethernet Ports, numbered 100/1 to 100/8.
Note: There areno native10G portson 26000-100G.The 100G portssupport native40G/50G/100G
transceivers, DAC & AoCs. To support native 10G & 25G transceivers, DAC & AoCs, use an SFP+ to
QSFP+ adapter.
The following figure shows the back panel of the Citrix ADC MPX 26000-100G and Citrix ADC MPX
26000T-100G appliances.
Figure 2. Citrix ADC MPX 26000-100G and Citrix ADC MPX 26000T-100G, back panel
© 1999-2019 Citrix Systems, Inc. All rights reserved. 80

Citrix ADC MPX Series Specifications

General

Type	Application Delivery Controller
Memory	Up to 256 GB
Power Supply	Redundant
Product Series	MPX
Ports	10/25/40/100 Gbps Ethernet
Operating System	Citrix ADC
Management	Citrix ADM
Form Factor	Rack-mountable
