276
ENGINE

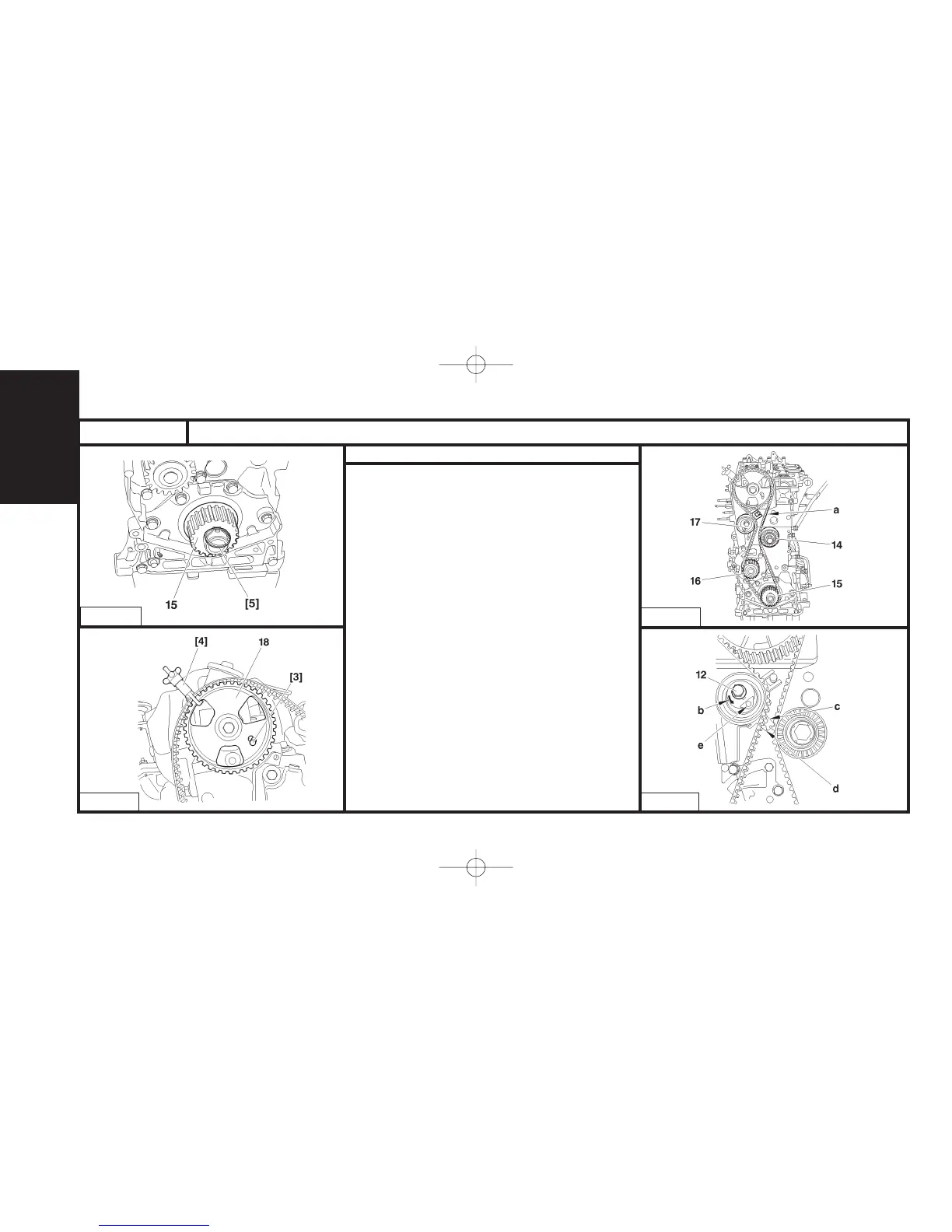

CHECKING AND SETTING THE VALVE TIMING
Engine: RHR
Refitting.
Centre the crankshaft pinion (15), using tool [5].
Reposition the timimg belt on the pulley (18).
Put the tool [4] in place
(tighten moderately)
.
Reposition the timimg belt, strip «a» well tensioned
in the following order:
- Guide roller (14).
- Crankshaft pinion (15).
- Coolant pump pinion (16).
- Tensioner roller (17).
Remove tools [4] and [5].
Bring the index «d» outside the plate at «c», by
turning the tensioner roller in the direction of the
arrow «b», using a hexagonal spanner at «e».
Tighten screw (12) of the tensioner roller (17) to
2,1 ± 0,2 m.daN.
Lock the flywheel, by means of tool [6].
Refit the auxiliaries drive pulley (7).
Tighten the screw (8) to 7 ± 0,7 m.daN.
Remove tools [6], [2] and [3].
B1EP1FFC
B1EP1FGC
B1EP1FHC
B1EP1FJC
C4
