Page 26 WS2H and WS3 Manual
Relay Trigger Settings
Trigger Units Range Increment Default
Time Min-
utes
0-240 1 10
Cycle Slow
Rinse
Volume Gal-
lons
1-200
200-1000
1000-
10000
1
5
10
20
Volume Liters 5-750
750-4000
4000-
38000
5
20
40
75
Relay Duration Settings
Trigger Units Range Increment Default
Time Min-
utes
:01-2:00
2:00-20:00
20-240
:01
:05
1
3:00

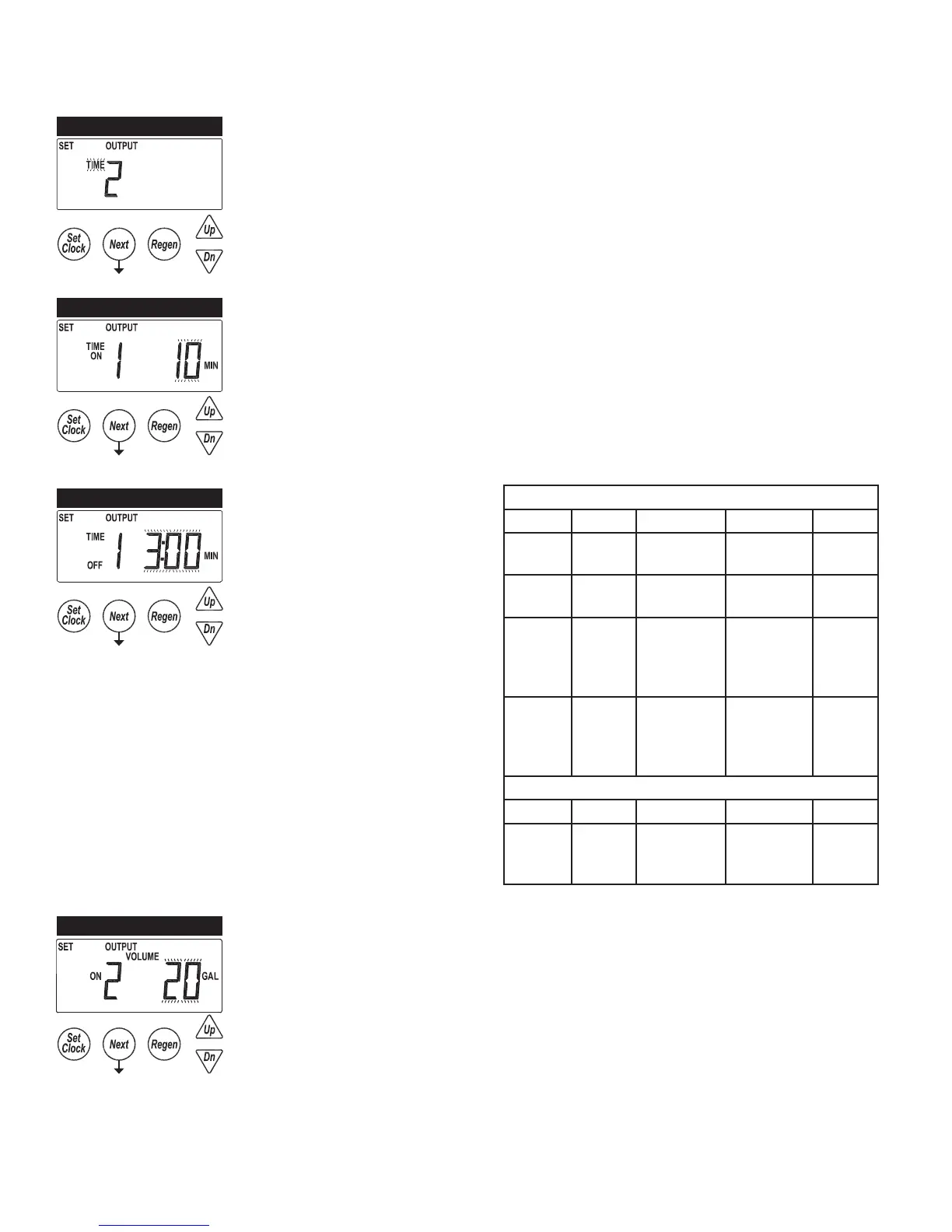

TIMER SCREENS (CONTINUED)
TIMER 3 – Set Trigger for Output 2
• Trigger options are the same as for output 1
TIMER 3
TIMER 4 – Set Output 1 Trigger
• Set the trigger point in these screens are based on the selection in the previous screens
TIMER 4
TIMER 5 – Set the relays ON
time duration
• A unit’s ON time does not
accumulate; ie a unit set to
trigger the relay every 10
gallons and stay on for 5
minutes is owing 10 gpm.
The unit would not add 5
minutes every 10 gallons,
it would reset the 5 minute
countdown every 10 gallons
• A unit which is manually
stepped through regeneration
will reset the relay.
TIMER 5
TIMER 6
Select Relay 2 output “ON”, per units previously selected.
Time
Time after the start of a regen before relay is actuated.
Cycle
Select a cycle which will actuate output 1.
Volume
Volume of water interval during service between relay actuations.
TIMER 6
