Clear-Com LQ series - Basic Setup (LAN); Setting Up Your LQ Environment

13
399G116 Rev D
2 Basic setup (LAN)
2.1 Setting up your LQ environment
Prepare your environment by gathering the following equipment:
• LQ units (LQ #1 and LQ #2)
• (2) provided power supply units (PSUs)
• (2) Straight-through Ethernet cables
• (1) Network connection with dynamic host control protocol (DHCP) server
present
• (2) 2-wire or 4-wire devices to provide an audio connection to each LQ
1) Using the Ethernet cable, connect LQ #1 to LQ #2 using either using either
LAN port on the rear of the unit.
2) Using another Ethernet cable, connect LQ #1 to your DHCP enabled network.

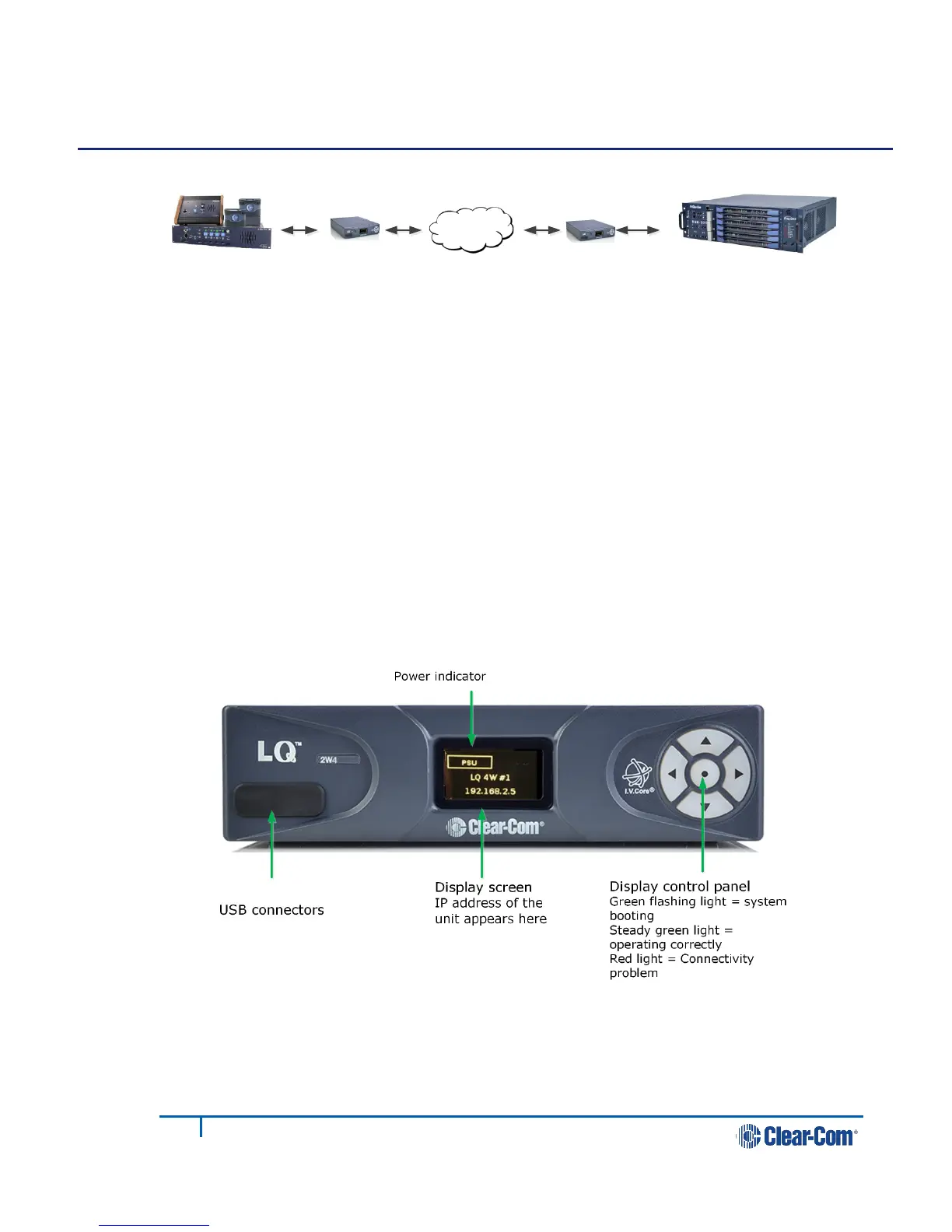

Figure 2-1 LQ device front panel display (4-Wire)
Note: The IP address will be allocated by DHCP (default mode). In the event
that the network does not serve DHCP or there is no network
connection, the IP address will revert to a link-local address. See 8
Link-local environments for more information.
LAN,WAN,
Internet
4-wire
2-wire
