3) Connect the provided PSU to each LQ device. Each device will display an IP
address on the front panel display.
4) Connect audio equipment to Port A of each LQ device.

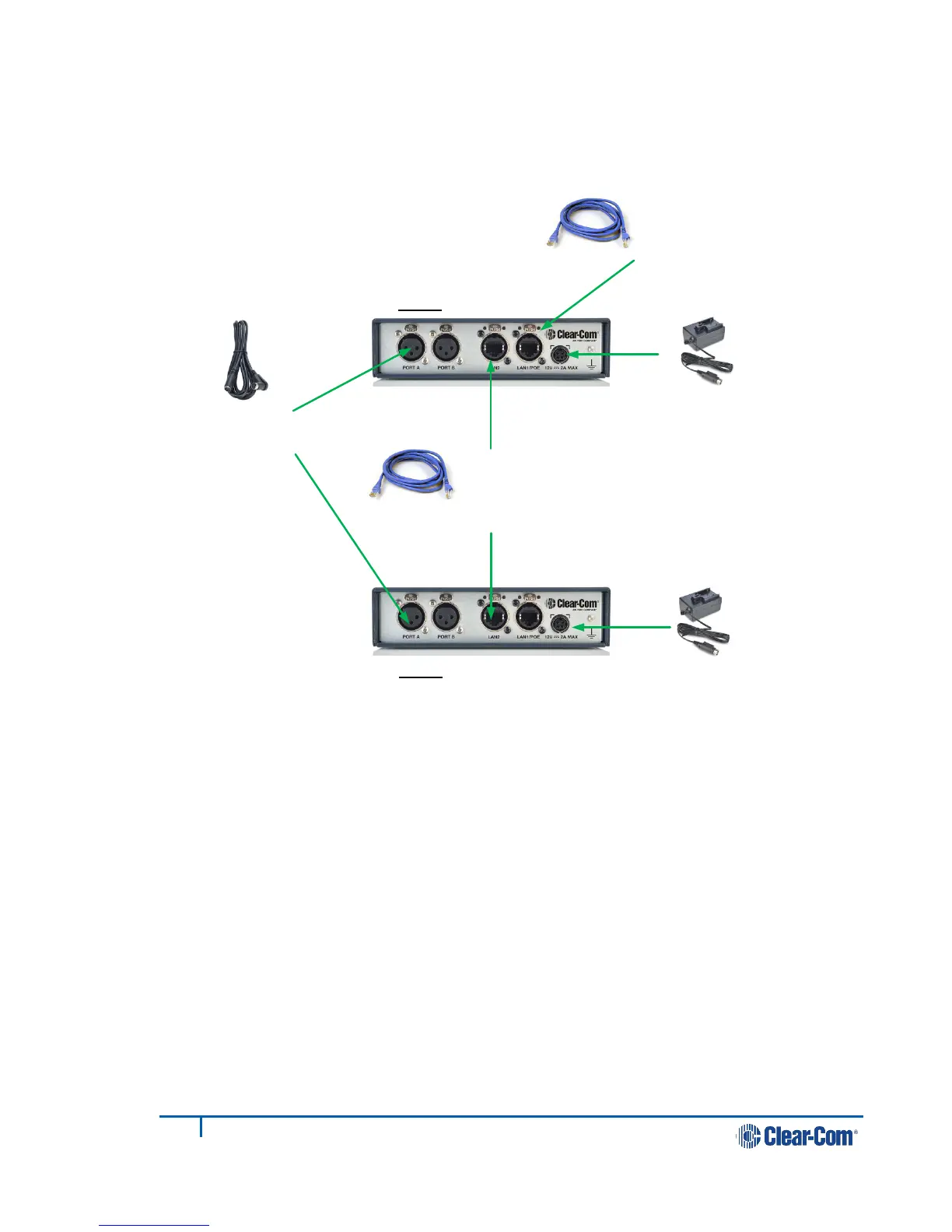

Figure 2-2 Basic setup
2.2 Accessing the Core Configuration Manager (CCM)
From a computer, open a Web browser. Enter the IP Address as displayed on the
LQ #2 device in the address field of the Web browser (Chrome, Safari, Firefox, IE,
Opera). This takes you to the Core Configuration Manager.
Note: Default username and password for the CCM: admin, admin.
1. Connect LQ #1 to
LQ #2 using either
LAN port
LQ #1
LQ #2
2. Connect DHCP
enabled server to
either LAN port
3. Connect
power supply
4. Connect audio
equipment
