12.1 Connecting 2-wire equipment
When connecting 2-wire equipment the following functions should be taken into
consideration:
• Auto-null
Note: Every time equipment is changed on a 2-wire port you should auto-
null.
• Enable/Disable the partyline power
• Line Termination.
These functions can be found in the 2-wire port settings page of the CCM. Navigate
to Device > A/B on any unit in the Link-Group and click ‘+’ to expand options.

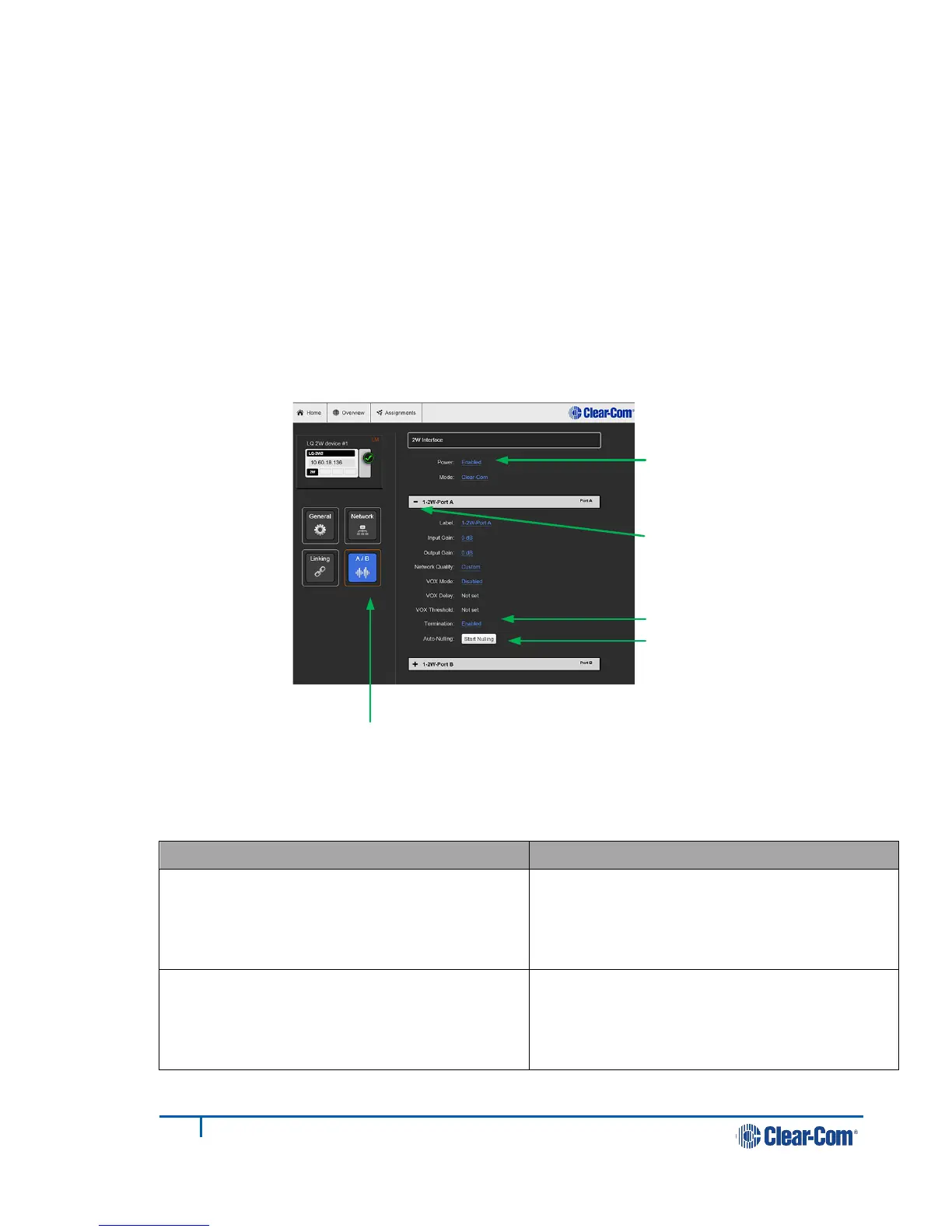

Figure 12-1 2-wire port options
Equipment Port settings
Encore RS beltpack 701/2/3 Power: Enabled
Termination: Enabled
Auto-nulling: Start auto-nulling
Encore MS-702/4
Encore PK-7
Encore PS-702/4
Power: Disabled
Termination: Disabled
Auto-nulling: Start auto-nulling
Table 2 Interconnectivity port settings guidelines
Navigate to
Device > A/B
Enable/disable
power
Termination
Auto-null
Click ‘+’ to
expand port
options
