12.3 Connecting an Eclipse Pico or MVX card to an
Encore device using LQ

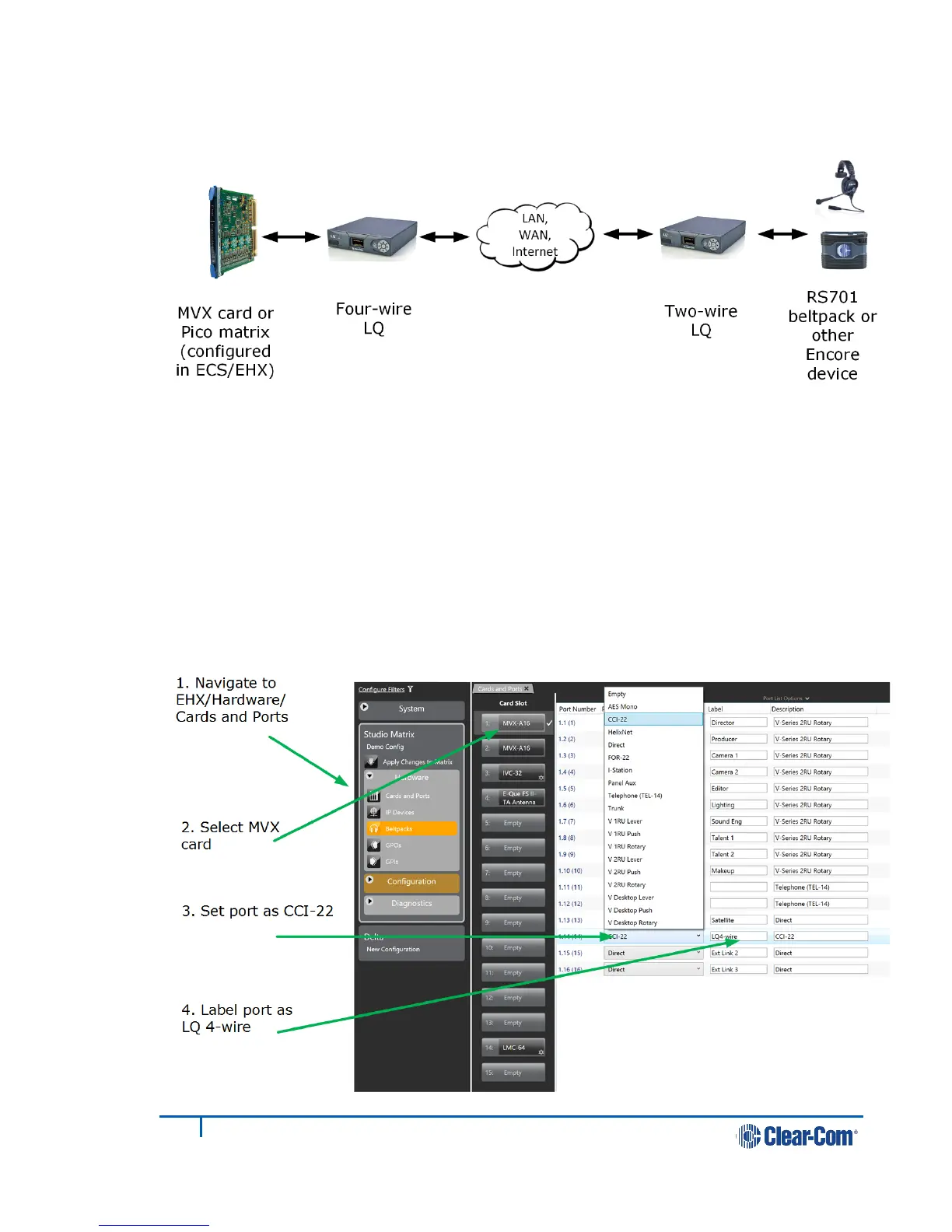

Figure 12-2 Connecting an Encore device to a matrix over IP
When setting up this connection, care must be taken to configure the port in the
EHX software correctly. This is because, in this case, the port must be declared as
a CCI-22 device as the port detection device on the LQ will recognise it as such.
1) From the EHX software, navigate to EHX/System/Cards and Ports.
2) Select the MVX card port.
3) Select a CCI-22 device from the list.
4) It is advisable to label the port as an LQ 4-wire device to avoid confusion.
