11.4 Example audio assignment via a Pico matrix

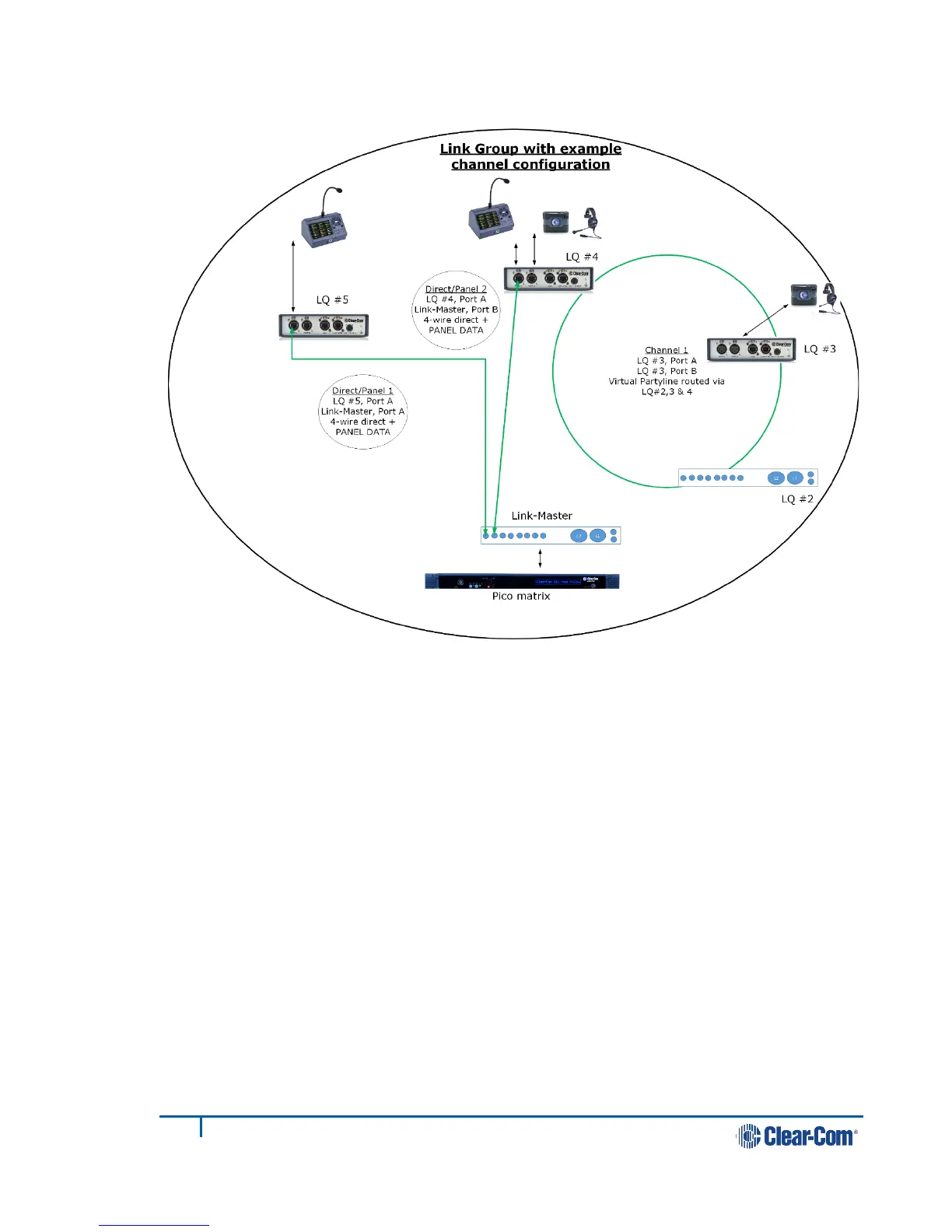

Figure 11-4 Example audio assignment
Note: A 4-wire direct connection is between two points. A channel can accommodate
many audio routes in a partyline.
