12.2 Connecting to 4-wire equipment
Note: To minimize noise, use screened (shielded) cable when connecting 4-wire ports.
12.2.1.1 Pin-out configuration
Pin-out configuration can be set on all LQ Series 4-wire interfaces. This is a
software switch that switches the configuration of the pins on the RJ45 etherCON
connectors, according to the device you are connecting to. See Table 1 above.
Pin-out configuration is set ‘to Matrix’ by default. To set the pin configuration of a
device:

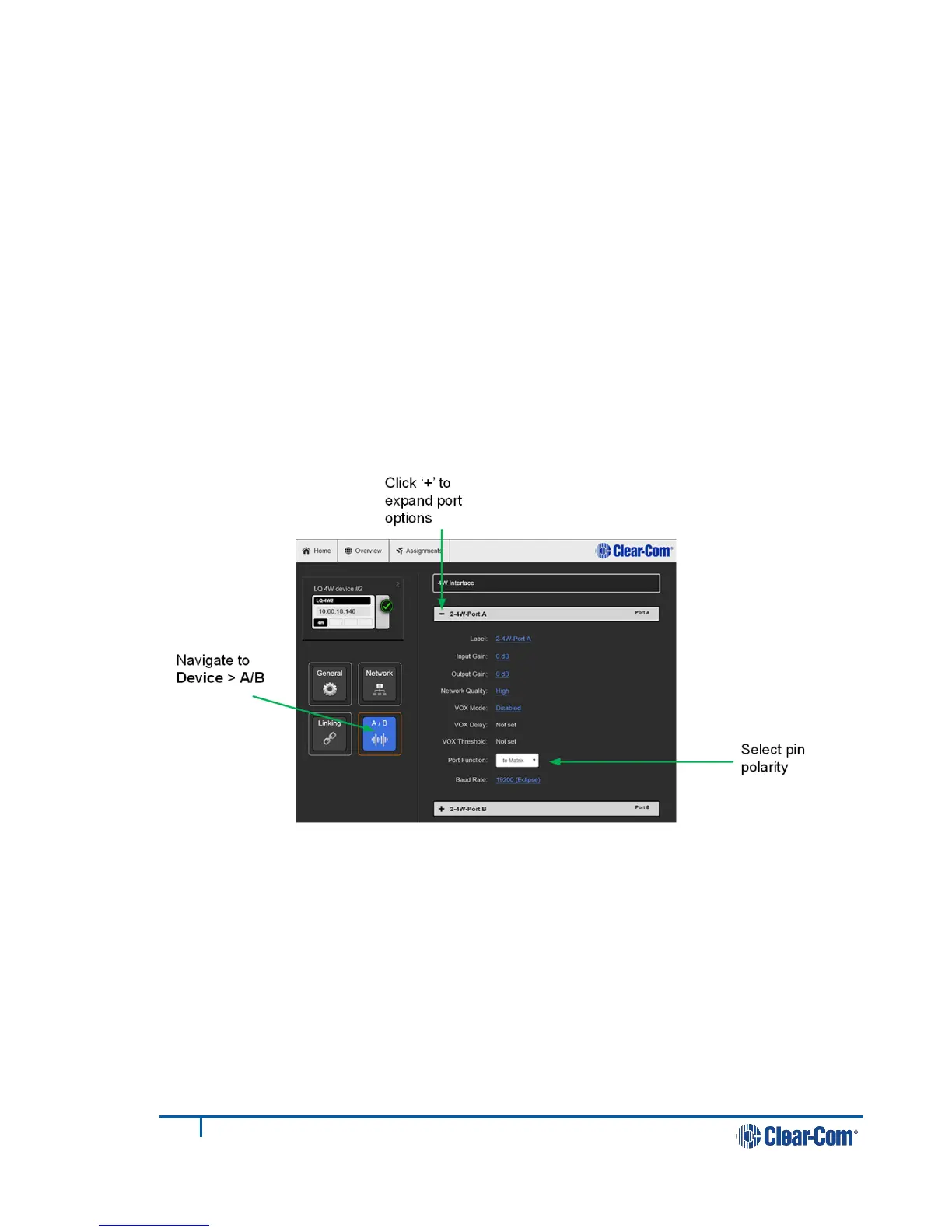

1) Access the CCM for any unit in the Link-Group.
2) Navigate to Device > A/B and click ‘+’ to expand options.
3) Select either ‘to Matrix’ or ‘to Panel’ and either press the <ENTER> key or
click the blue check mark to submit changes.
