Note: A 4-Wire Direct must be selected before ports can be assigned to it.
Note: A 4-Wire Direct cannot be assigned to a route twice so it must be unassigned from
a direct box as necessary before assignment.
11.2.1 Port availability status
Port assignment status is represented by the following three colors:
• White: connected, audio is being transmitted
• Yellow: connection pending, connection status unknown
• Red: device is unreachable
• If one of the devices is displaying three yellow dots, the connection is
pending.
11.3 Modifying a channel/4-wire direct label
Clicking on a blue channel/4-wire direct header will allow you to change the name
of the channel or direct. Enter the new channel/direct name and press <ENTER>
key or click the blue check mark to apply changes.

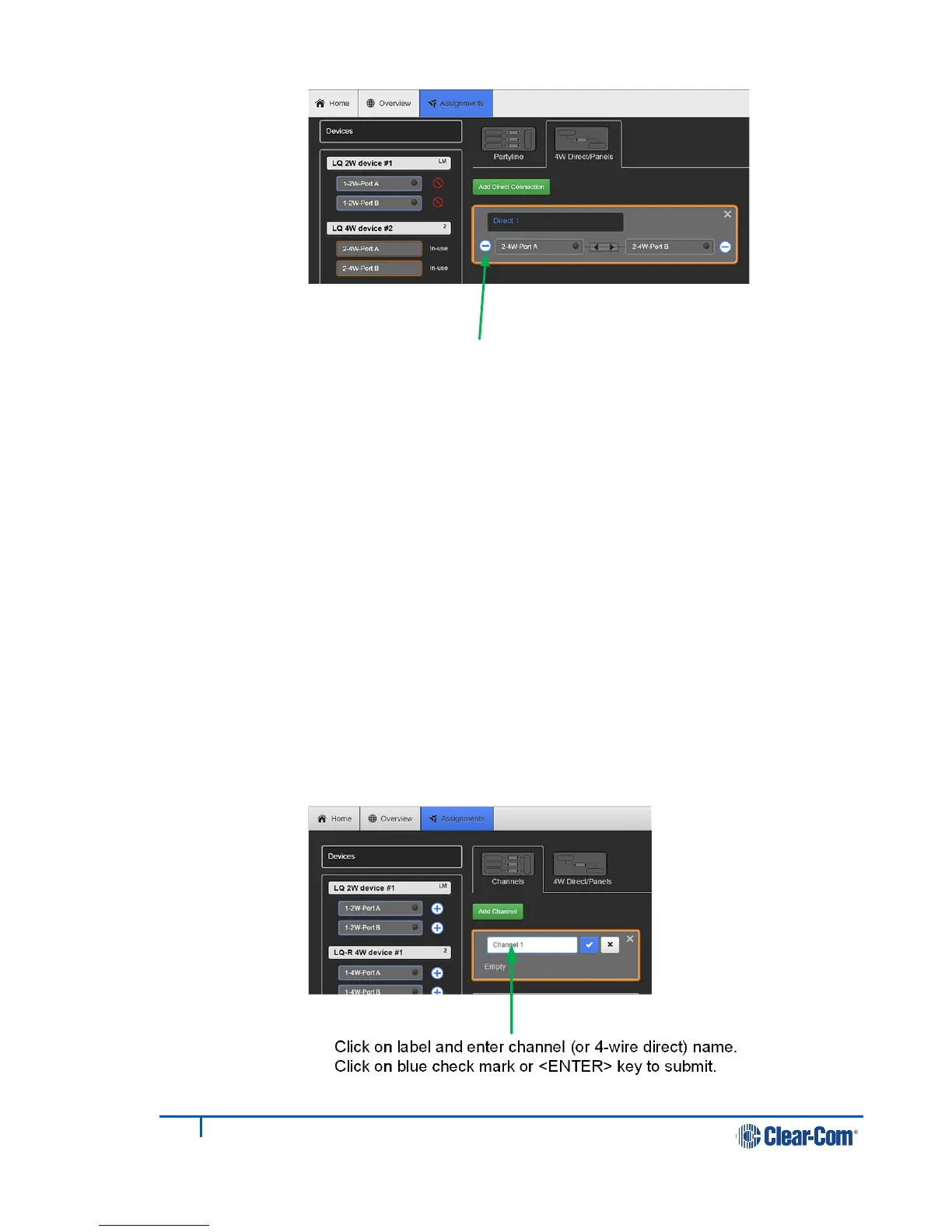

Figure 11-3 Modifying a channel/direct label
Click ‘-‘ to
remove port
from Direct 1
To Next Page
