Clear-Com LQ series User Manual

63
399G116 Rev D
Note: The connection between the MVX or Pico and the LQ device is a 4-wire connection,
even though it is declared as a 2-wire connection.
See 5.16 Port Function in the Eclipse 8.5.1 EHX Software User Guide for more
information on port function.

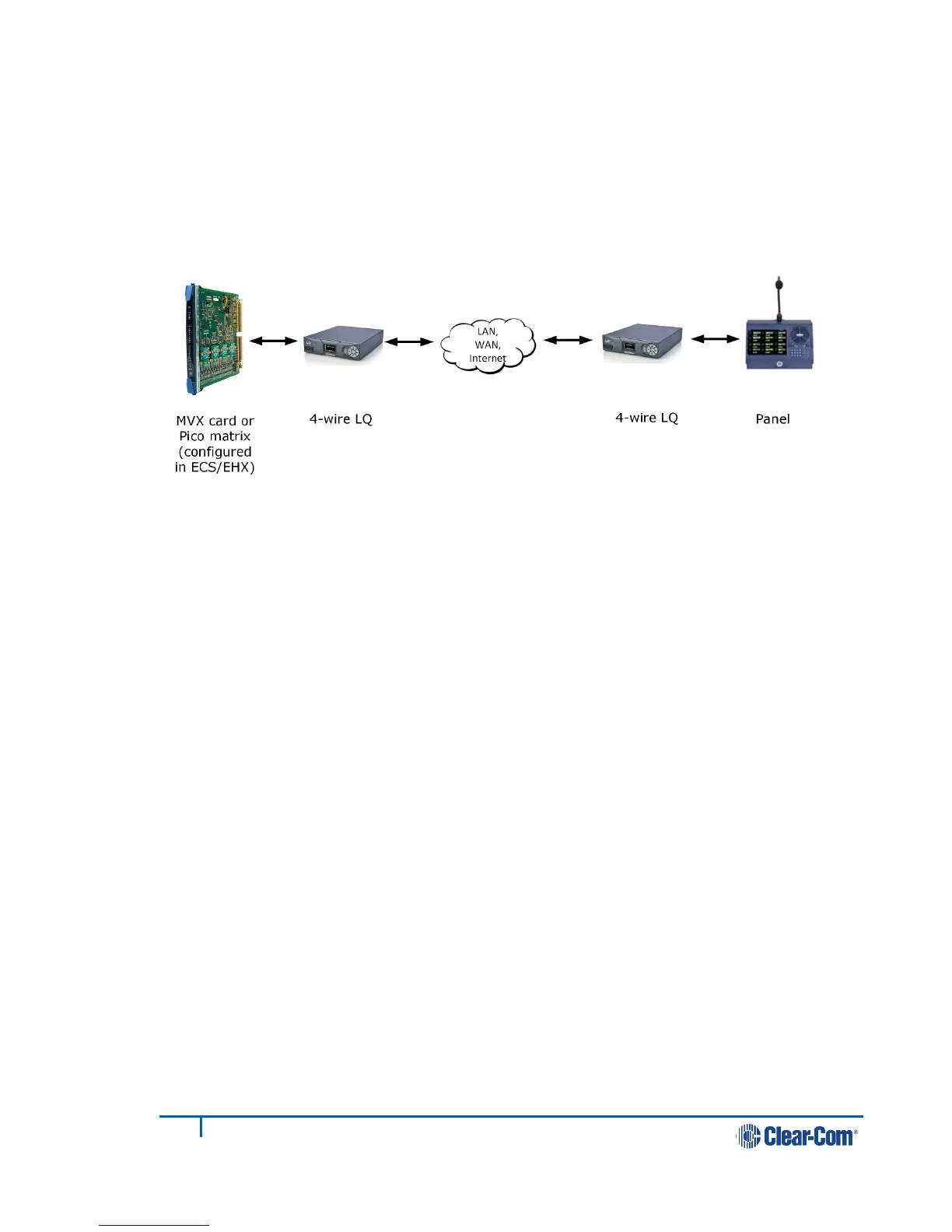

12.4 Connecting an Eclipse Pico or MVX card to a panel
using LQ
When setting up this connection, the MVX port to the LQ should be declared as a
panel in the EHX software.
See 5.16 Port Function in the Eclipse 8.5.1 EHX Software User Guide for more
information on port function.
12.4.1 Setting pin configuration 4-wire ports
See 15 Technical specifications for pin-outs.
