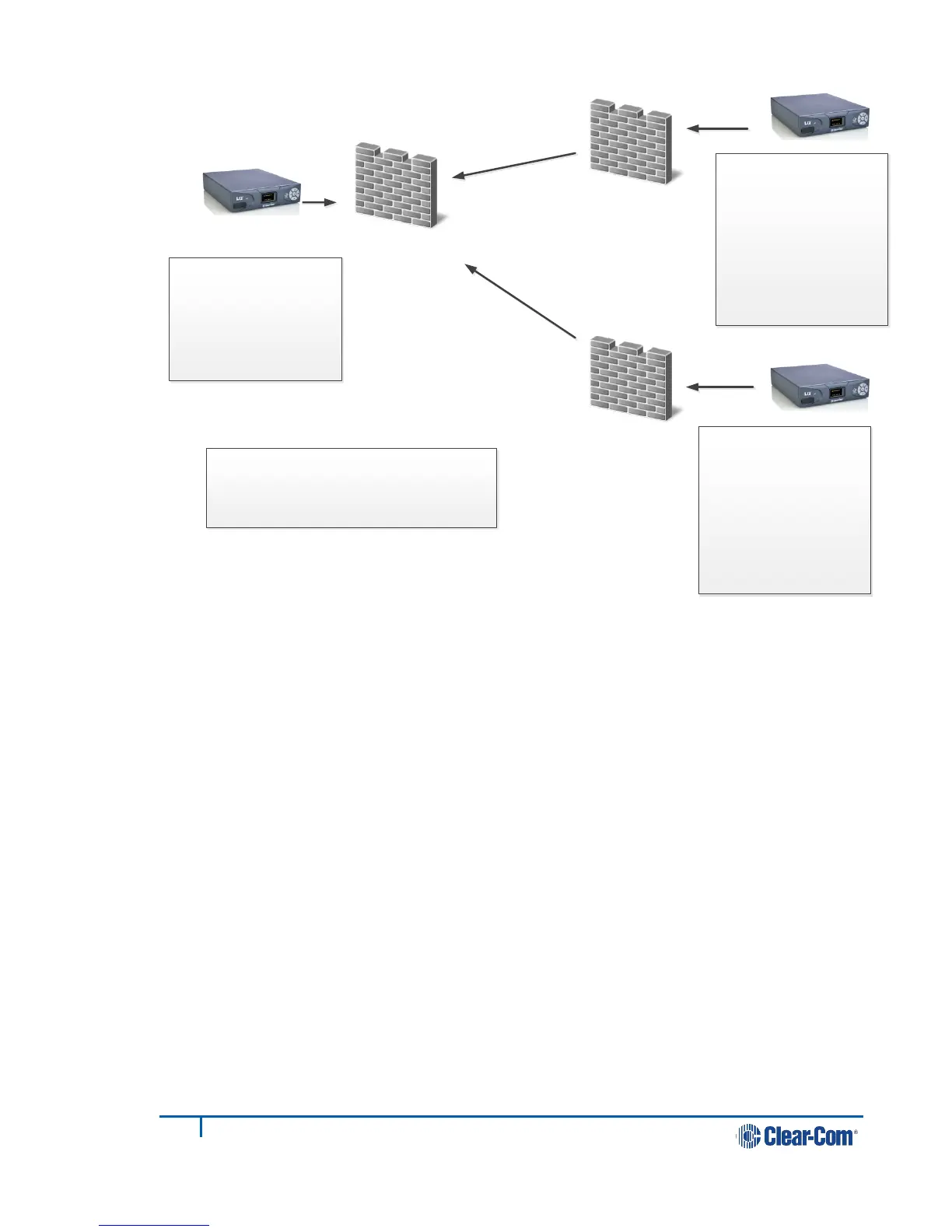

Note: The external port set on the Networking page is the interface port (655), in this
example port-forwarded to 6301.
Note: The external port set on the Linking page is the management port (80), in this
example port- forwarded to 6300.
External IP:
34.50.63.7
External IP:
39.56.12.8
External IP:
36.40.16.3
Link-Master
LQ #2
LQ #3
Networking page
Internal IP:
192.168.10.4
External IP: 34.50.63.7
External port: 6301
Networking page
Internal IP: 192.168.0.1
External IP:36.40.16.3
External port: 6301
Linking page
Link-Master IP:
34.50.63.7:6300
Example port forwarding rules:
Port 6300 forwarded to port 80
Port 6301 forwarded to port 655
Networking page
Internal IP: 192.168.0.4
External IP:39.56.12.8
External port: 6301
Linking page
Link-Master IP:
34.50.63.7:6300
