ID–Lite-2.0 User guide, ©ComAp – January 2011 8
ID-Lite-2.0 User guide.pdf
Any analog value from controller may be shown in that way. All outputs operate as pwm signal at
1200Hz.

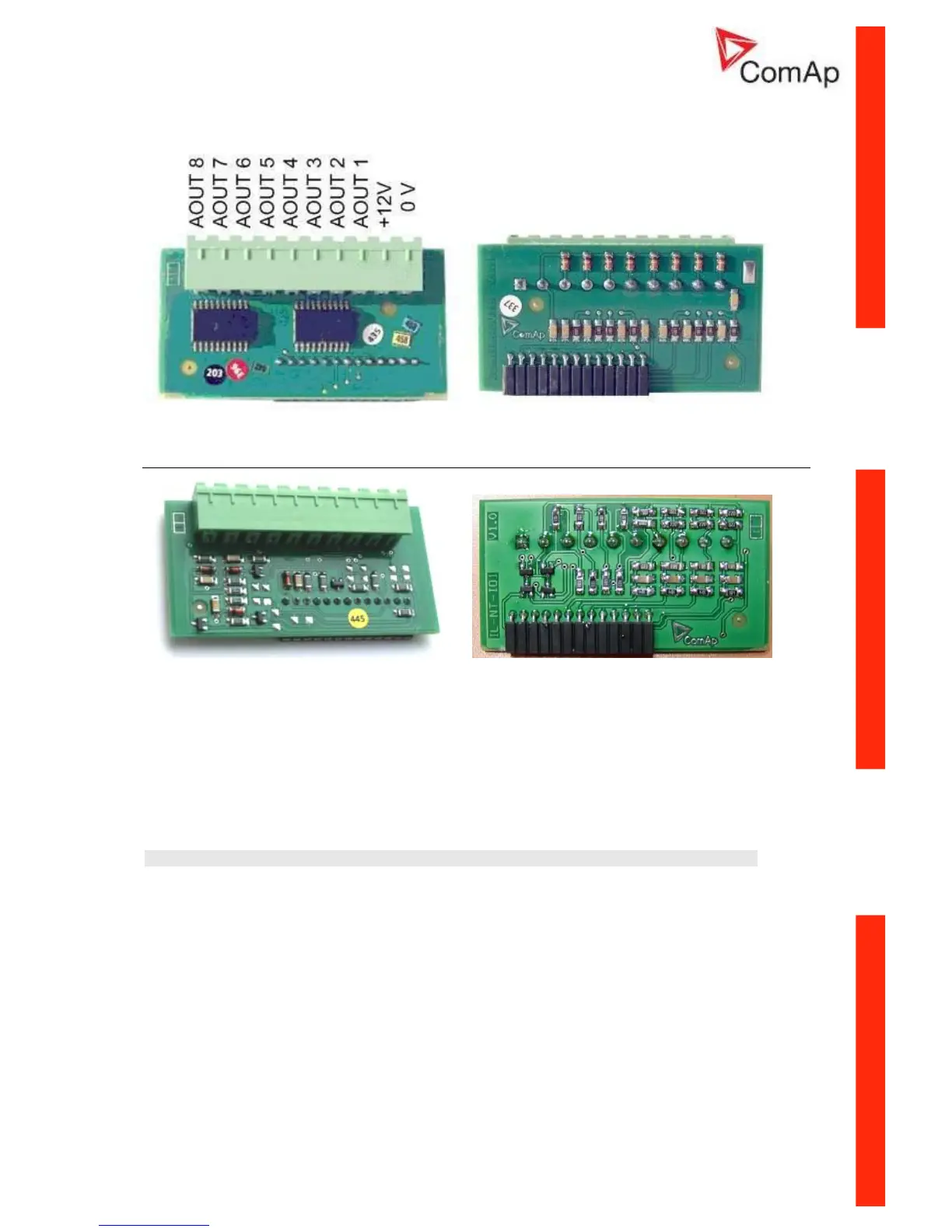

IL-NT IO1 – extension I/O module
Module structure and wiring is on the drawing below.
The GND terminal is internally wired with battery minus power supply terminal. The +VBat has to be
wired to battery plus power supply on IL-NT-DCU controller. It is possible to connect up to four
Proportional valves.
Analog output - AOUT1 to AOUT4 characteristic
Output voltage corresponds to setpoints setting (see below) – depending on engine conditions
(controller binary inputs state).
There should be up to one volt lover voltage compare to adjusted % of +VBat voltage.
The Analog output short to ground connection longer than 1 sec can damage the output circuit.
