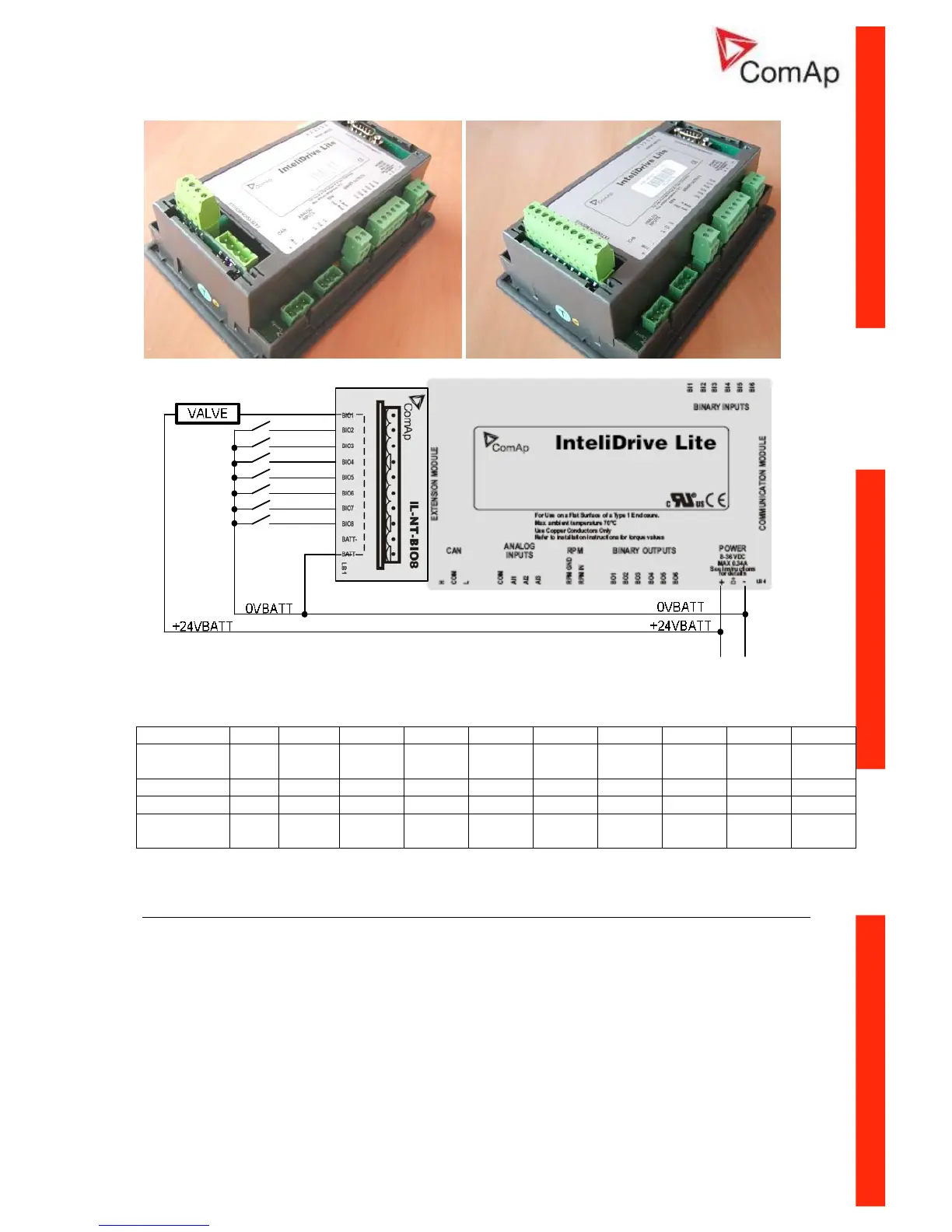

IL-NT BIO8 BATT- terminal has to be connected to 0VBAT in case at least one Binary output is
configured or to both BATT- when more than four Binary outs are connected.
1 2 3 4 5 6 7 8 9 10
IL-NT
AOUT8
0V +VBatt AOUT1 AOUT2 AOUT3 AOUT4
AIN2 AIN3 AIN4 n.c. n.c. I out U out PWM
out
n.c.
IB-Lite Ethernet communication plug-in card
IB-Lite is a plug-in card with Ethernet 10/100 Mbps interface in RJ45 connector. The card is internally
connected to both COM1 and COM2 serial channels and provides an interface for connecting a PC
with LiteEdit or InteliMonitor through ethernet/Internet network, for sending active e-mails and for
integration of the controller into a building management (Modbus/TCP protocol).
This card enables to monitor and control the drive over web browser from any location with internet
access using appropriate security measures. In conjunction with AirGate server connection the card
also enables to monitor the drive in WebSupervisor management system.
Card inserts into expansion slot back on the controller. To insert the module, please follow the
instructions for IL-NT RS232 module, procedure is analogous.
