Alarm management
Following alarms are available:
• Sensor fail
• Warning
• Shut down
Sensor fail (FLS)
Sensor fail is detected when measured value is 6% out of selected sensor characteristic. Sensor fail is
indicated by ##### symbol instead measured value.
Warning (WRN)
When warning comes up, only alarm outputs and common warning output are closed.
Possible warnings:
See List of possible events
Shut down (SD)
When the shut-down alarm comes up, ID-Lite opens outputs FUEL SOLENOID, STARTER and
PRESTART to stop the engine immediately. Alarm outputs and common shutdown output are closed.
Active or not reset protection disables start.
Hint:
Engine running only alarms are activated Engine protect: Eng prot del after the engine RPM >
Engine params: Starting RPM during the engine starting procedure.
Possible shut-down alarms:
See List of possible events

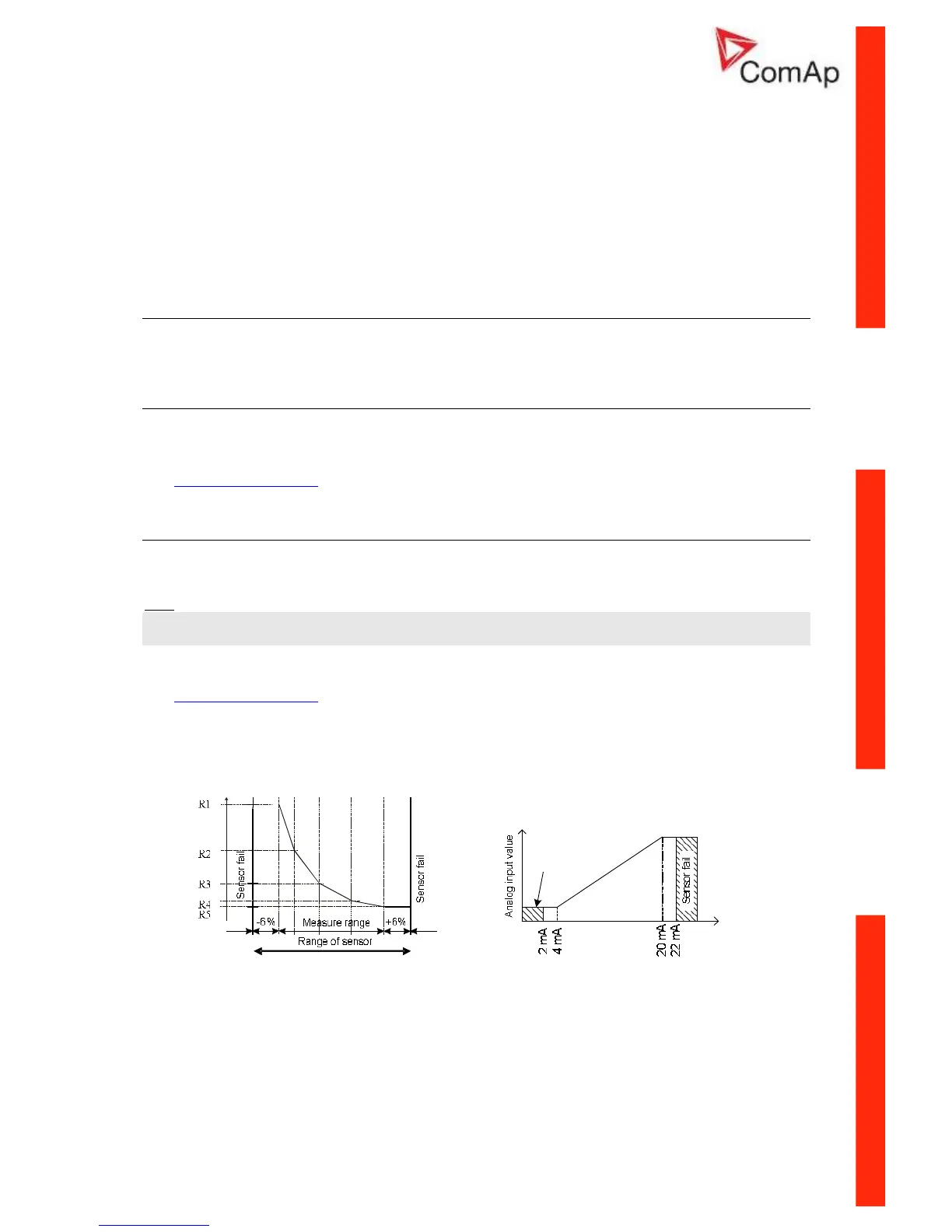

Sensor fail detection
Sensor fail Fls is detected when measured value is 6 percent out of range. Controller screen displays
in this case string #### instead measured value.
100%
0%
mA
Sensor fail
