IL-NT AIO 4xAIN + 1x AOUT Optional plug-in
IL-NT IO1 4xBIN + 4xAOUT Optional plug-in
IL-NT BIO8 8x BIN or BOUT Optional plug-in
External modules
IL-NT RD Remote display Optional external for DCU
IGL-RA15 Remote annunciator Optional external for DCU
IL-NT RS232 communication module

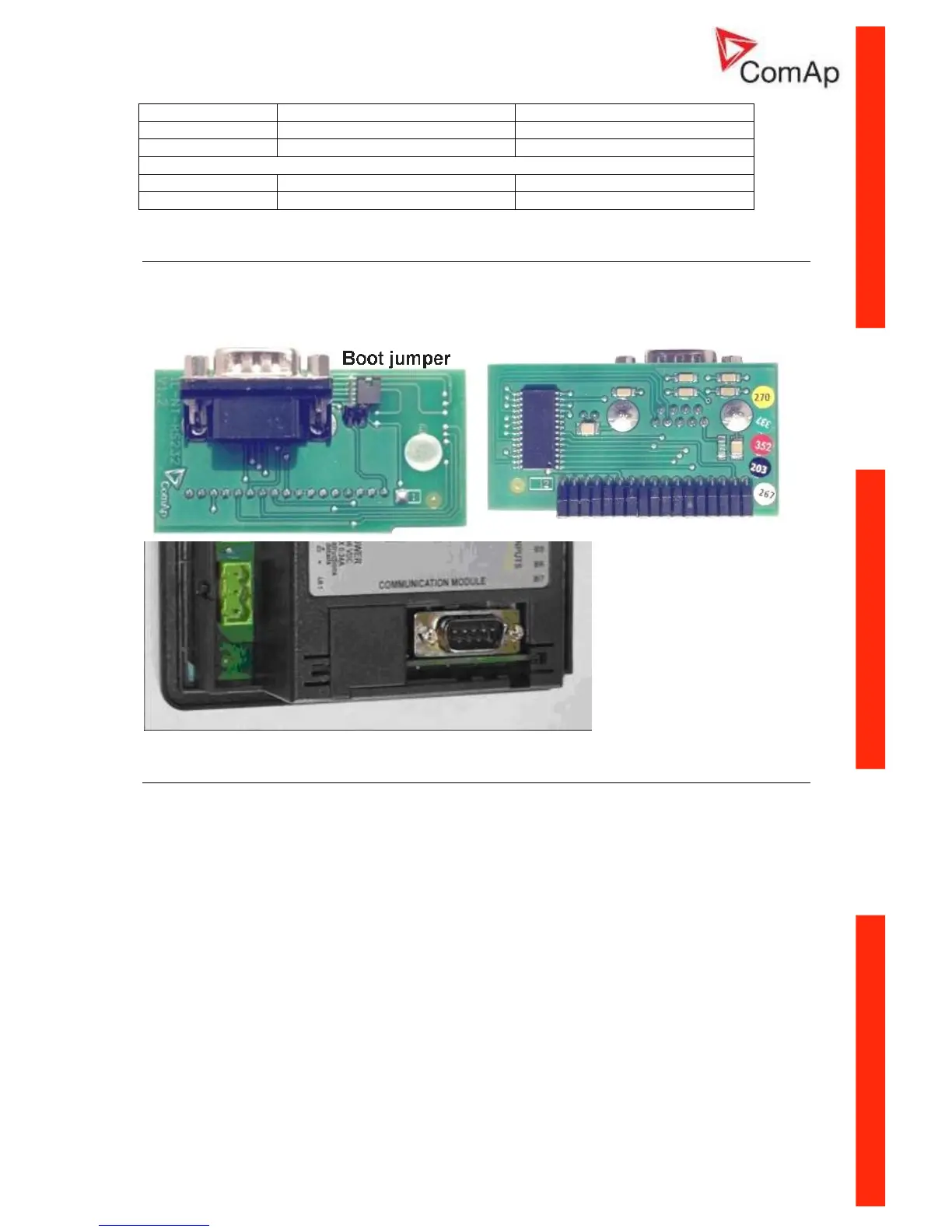

IL-NT RS232 is optional plug-in card to enable InteliDrive-Lite for RS232 communication. This is
required for computer or Modbus connection. Card insert into expansion “Communication module” slot
back on the controller.
IL-NT RS232-485 communication module
IL-NT RS232-485 is optional plug-in RS232 and RS485 communication interface. This is required for
computer or Modbus connection. The IL-NT RS232-485 is a dual port module with RS232 and RS485
interfaces at independent COM channels. The RS232 is connected to COM1 and RS485 to COM2.
To insert the module, please follow the instructions for IL-NT RS232 module, procedure is analogous.
You must open the cover first (use screwdriver to open) and then insert the module into slot. Once you
have inserted it, the module will snap under plastic teeth. It is supposed to be installed permanently.
Should you need to remove it, the safest way is to remove whole back cover and than remove module
manually.
