4.6.1 AMF application: 3 Phase 4 Wires
G
L1 L1 L2 L3
L3
L2
L1
GENERATOR MAINS
L2 N
N
Figure 4.5

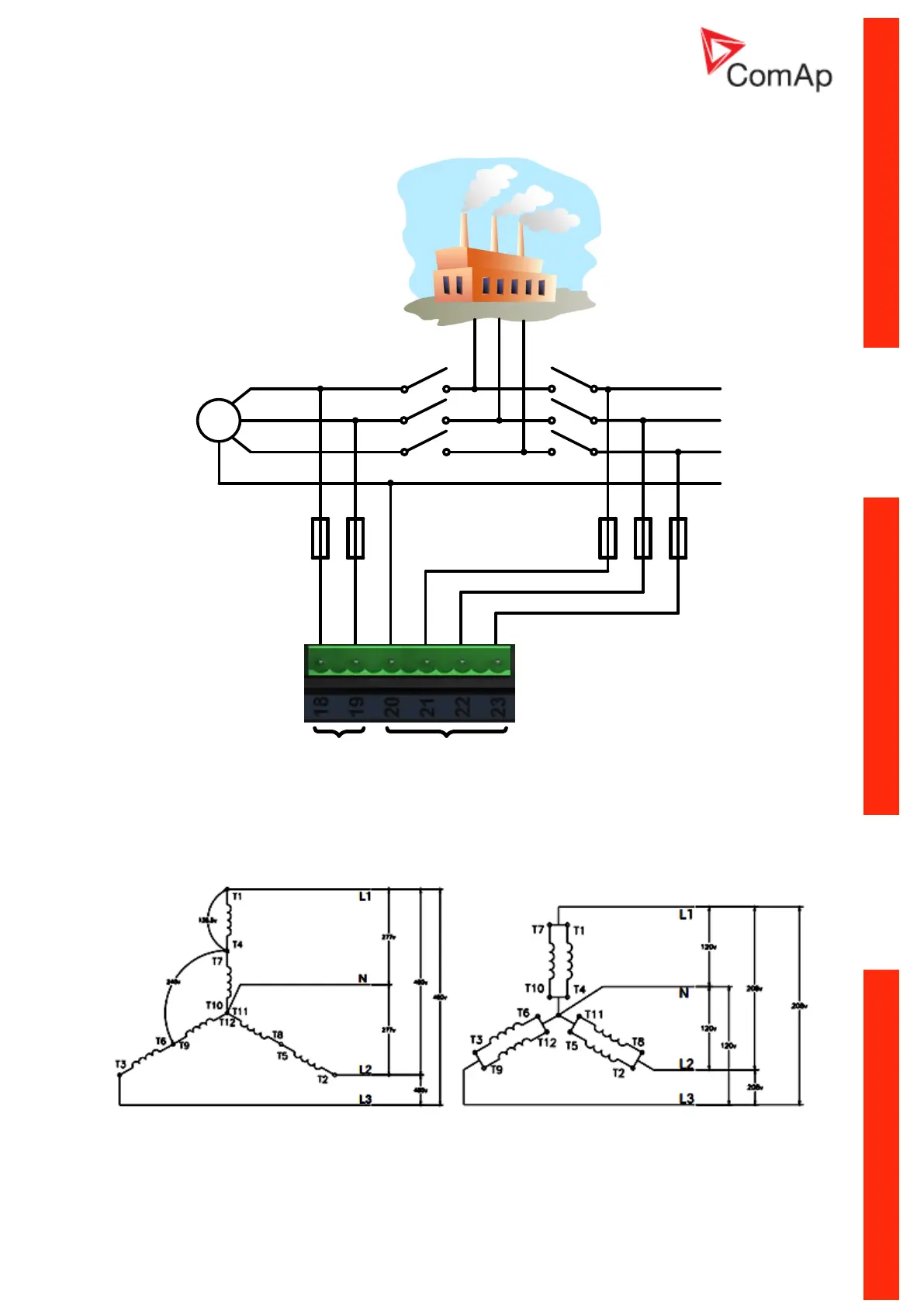

AMF APPLICATION 3 PHASE 4 WIRES TERMINALS CONNECTION
Three phase “wye” measurement – 3PY
Figure 4.6
STAR CONNECTION
