4.6.2 AMF application: 3 Phase 3 Wires
G
L2 L1 L2 L3
L3
L2
L1
GENERATOR MAINS
L1
Figure 4.7

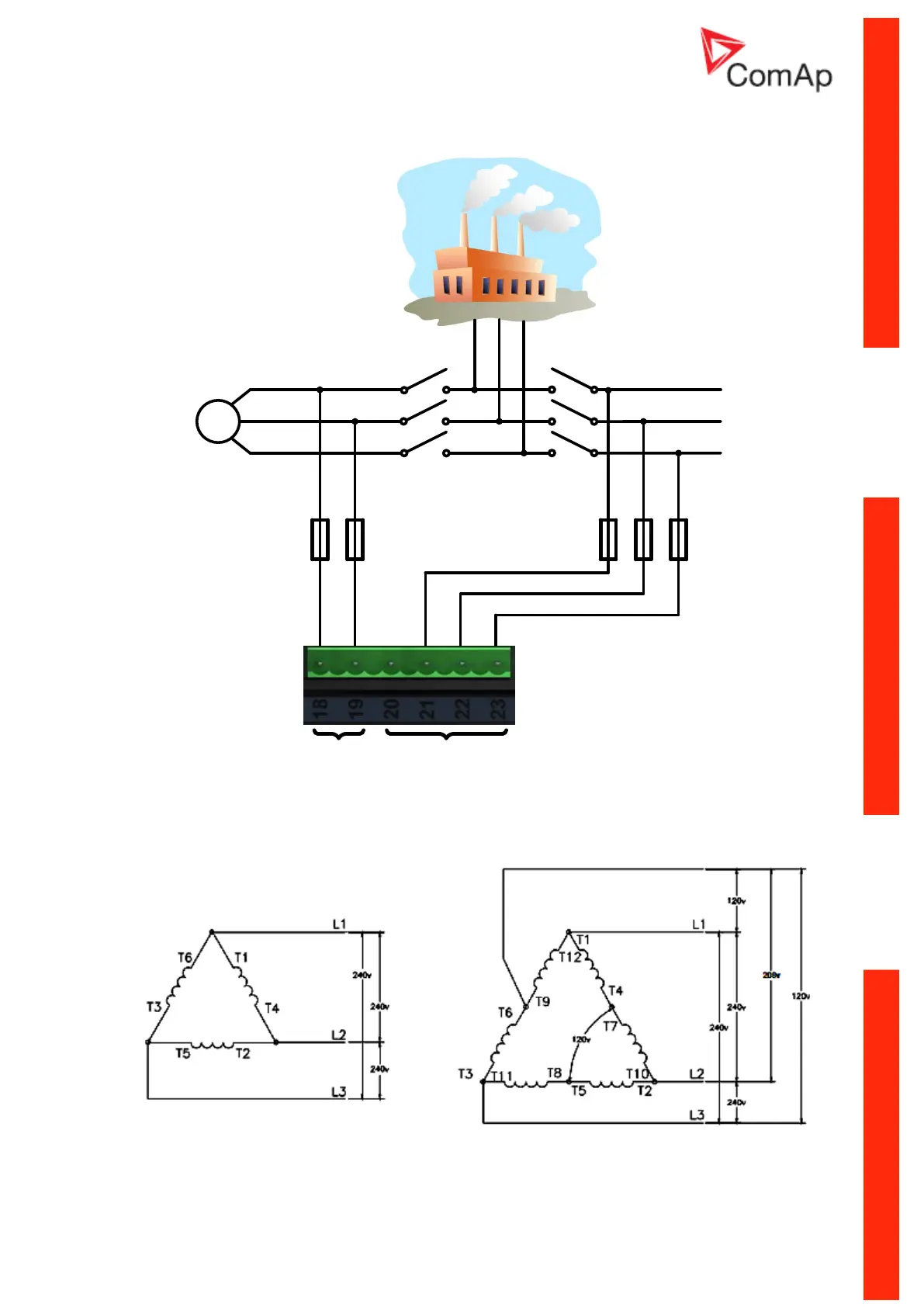

AMF APPLICATION 3 PHASE 3 WIRES & LINE TO LINE TERMINALS CONNECTION
Three phase “delta” measurement – 3PD
Figure 4.8
DELTA CONNECTION (LEFT), HIG-LEG DELTA CONNECTION (RIGHT)
