4.6.3 AMF application: Split Phase
G
L1 L1 L2 N
L2
L1
GENERATOR MAINS
L2 N
N
Figure 4.9

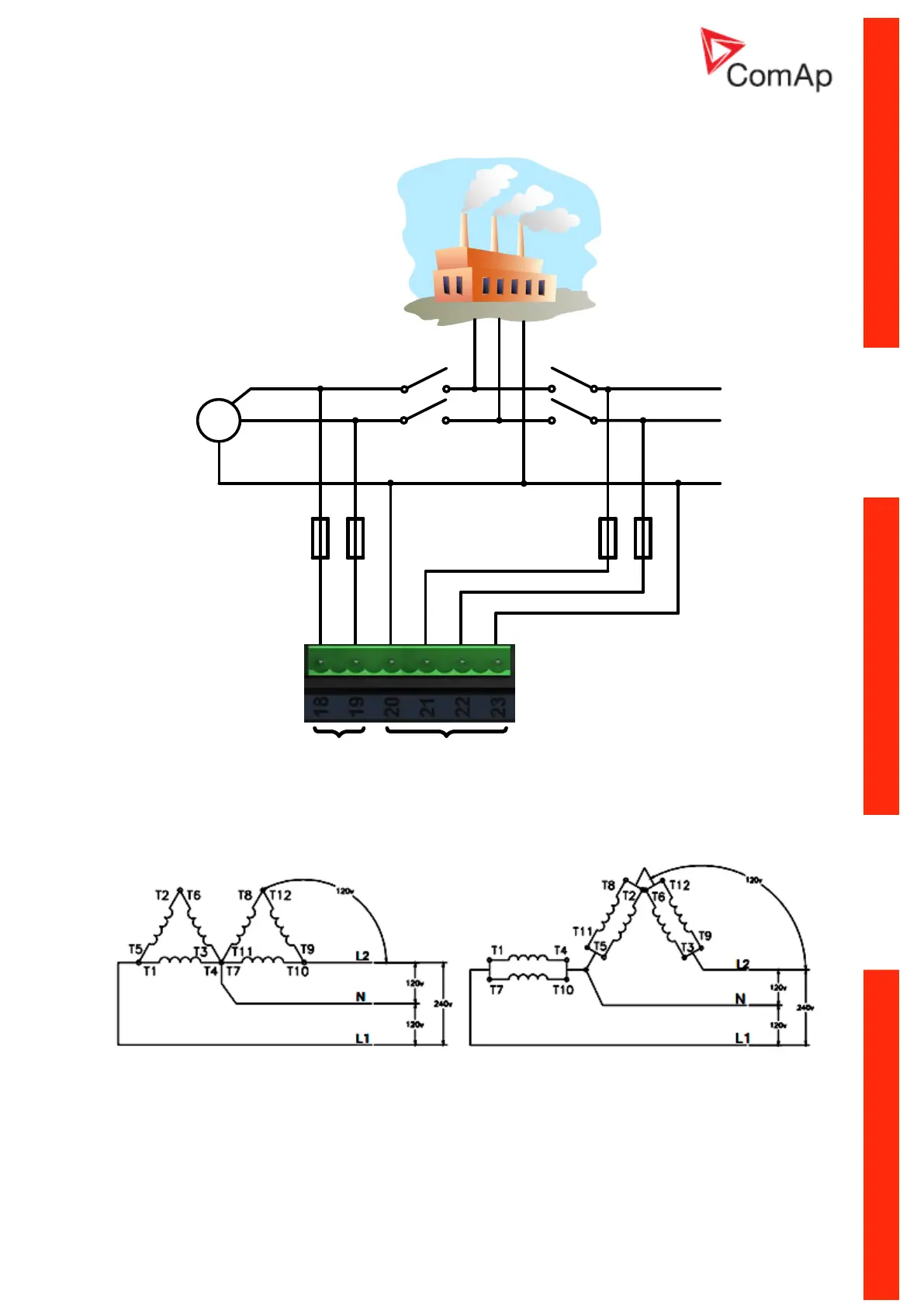

AMF APPLICATION SPLIT PHASE TERMINALS CONNECTION
Split-phase measurement – 1PH
Figure 4.10
DOUBLE DELTA CONNECTION (LEFT), ZIG ZAG(DOG LEG) CONNECTION (RIGHT)
