I25
Coolant Temperature Analog
Analog input for coolant temperature measurement. When the measured value exceeds the preset
threshold, the red LED above Stop button will blink, the general shutdown symbol will be displayed
on the LCD’s upper right corner, the coolant temperature symbol will be displayed on event log with
running hours stamp, and the shutdown procedure will occur. For more details see Shutdown
procedure in chapter 12 Alarm, Events and History Management.
Default threshold is 90°C. You can choose one from four default resistive sensors (VDO, Datcon) or
you can create your own sensor curve.
You can setup shutdown threshold (E05 Coolant Temperature Shutdown) in Engine parameters
and protection group.
NOTE:
Input has 5s delay.

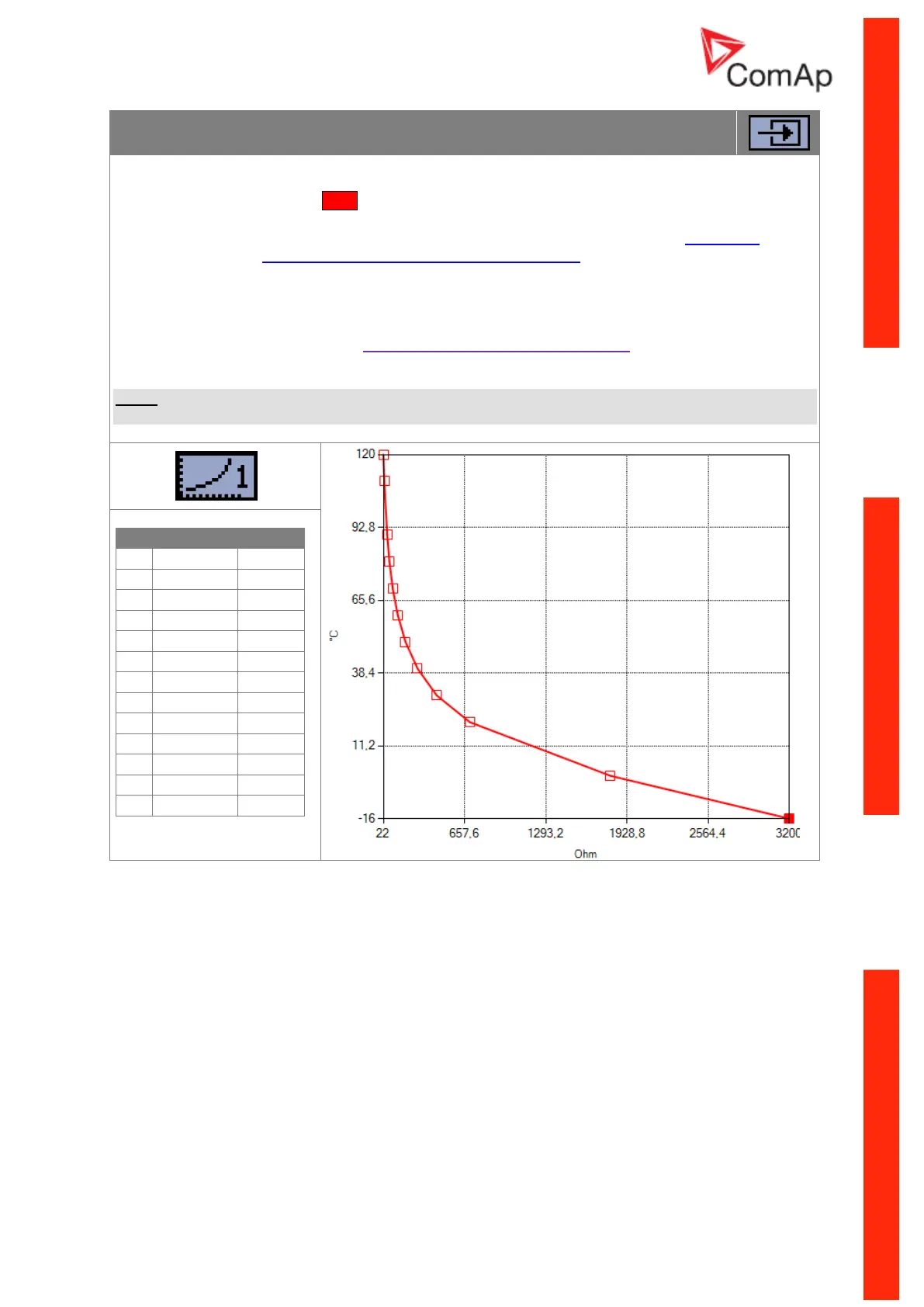

VDO 40-120 °C
Ohm
°C
1
22
120
2
29
110
3
52
90
4
69
80
5
95
70
6
135
60
7
195
50
8
290
40
9
440
30
10
700
20
11
1800
0
12
3200
-16
