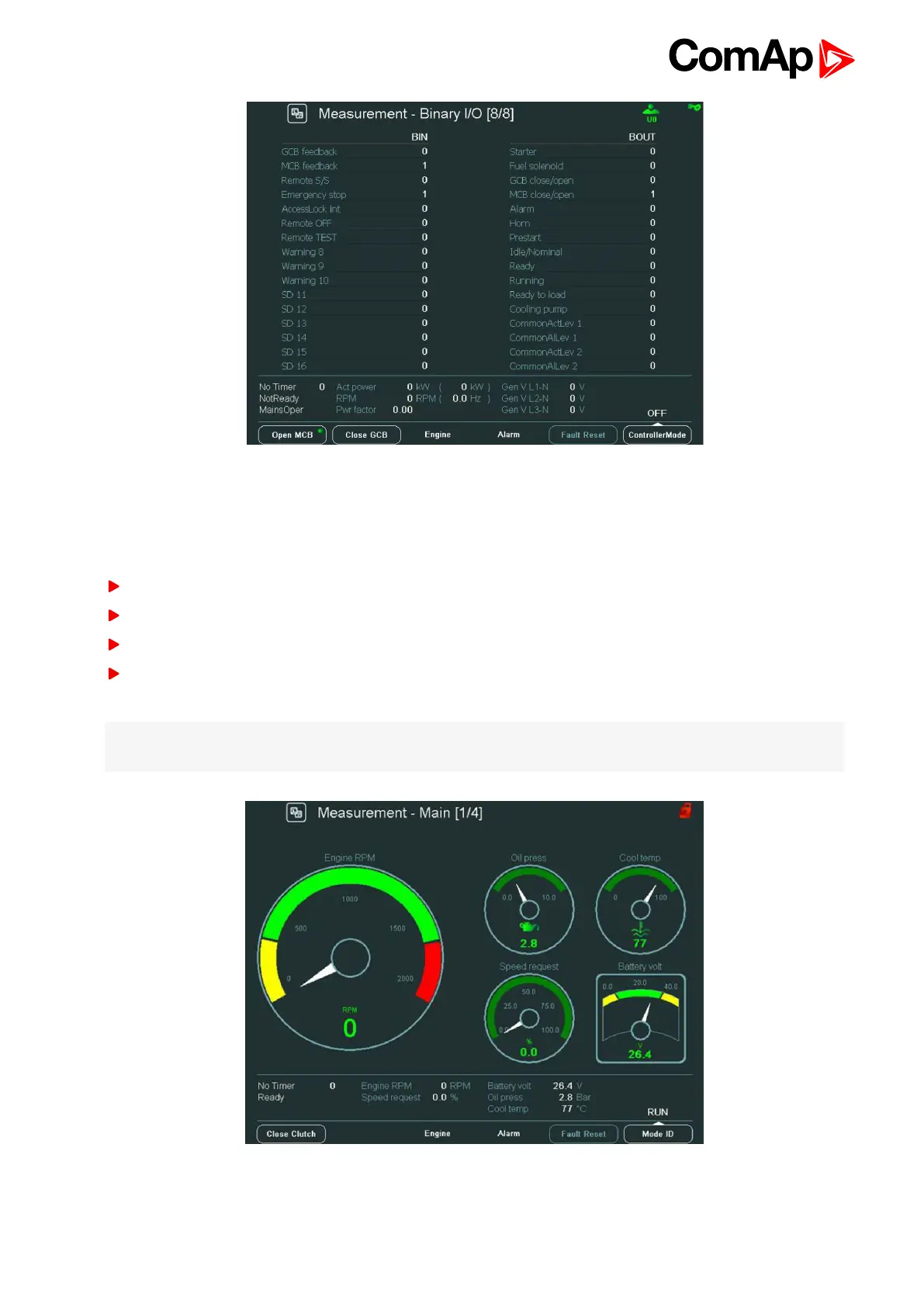

Image 4.13 Binary 1/0 screen
4.1.2 ID measurement screens
ID standard measurement screens come after each other in the following order:
Main
Analog inputs
Binary 1/0
Statistics
Other screens can follow, depends on controller configuration (ECU, extension modules, etc.).
Note: What do numbers in the bracket [1/4] in the top of screen mean? The first number is the number of
a screen sequence. The second number is total number of screens in Measurement block.
