4.2.2 Trends - channels
On this screen you can set displayed values (channels). Either Analog or Binary values can be assigned to each
channel.
Analog value selection
To set displayed values, press Channels button. The following screen appears:

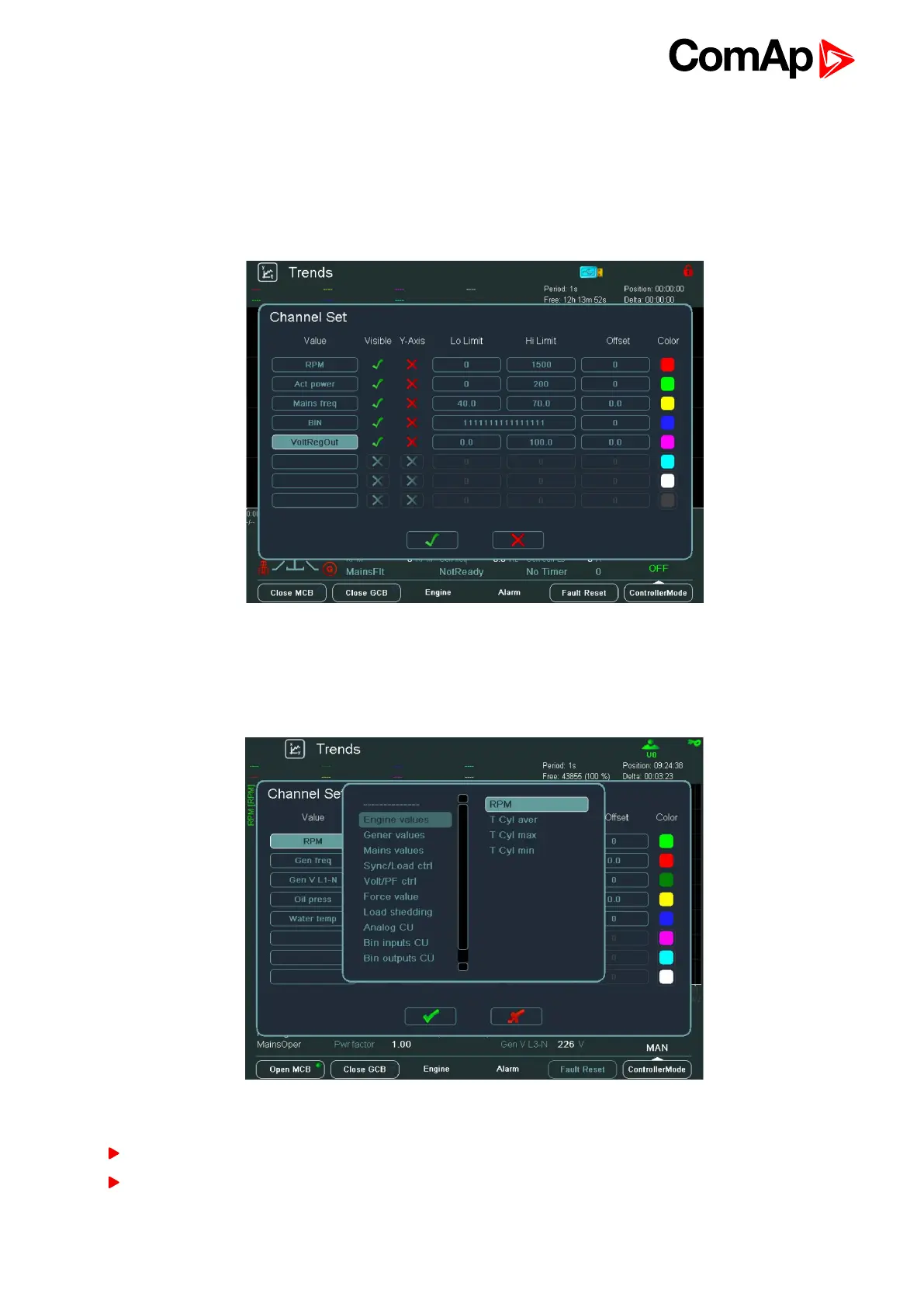

Image 4.19 Channel set menu
To change a value or to choose a new one in unallocated channel, use ↑ ↓ buttons to move up and down in the
column Value and press Enter.
Image 4.20 Channel trends settings
Use ↑ ↓ buttons in the left column to select a group of values.
Use → ← buttons to go to the right column, use ↑ ↓ buttons to select a certain value and press Enter.
