InteliVision 8
74

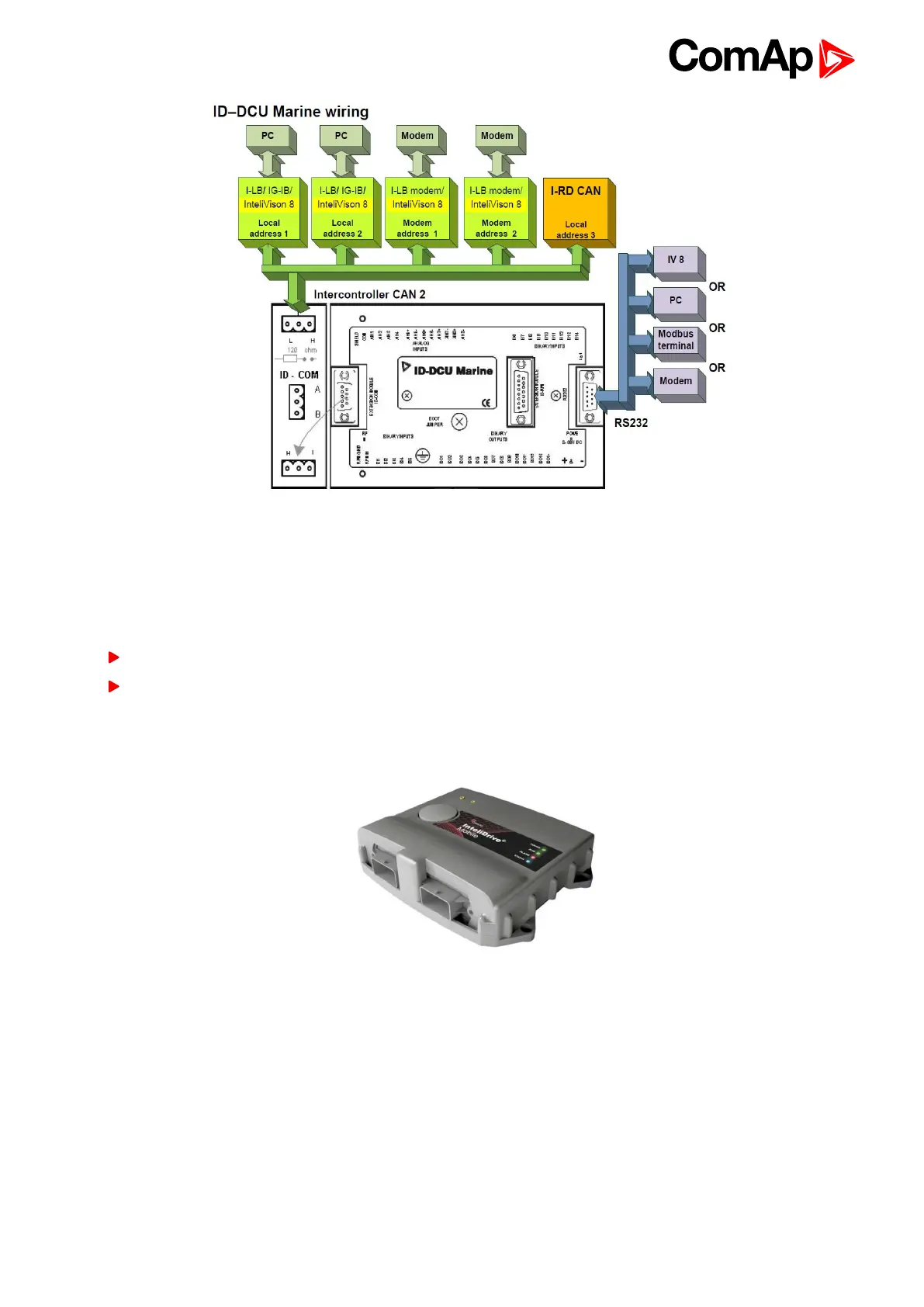

Image 9.6 InteliDrive – DCU Marine wiring
9.3.1 ID-Mobile wiring
InteliVision 8 can be connected also to ID-Mobile. ID-Mobil has 2 communication interfaces, which can be used
for communication with InteliVision 8:
RS485
CAN2
Since ID-Mobile has a waterproof cover, it has not free-accessible communication ports. All ports and
inputs/output are merged to 2 large waterproof connectors.
Image 9.7 ID-Mobile and connectors
