InteliVision 8
66
8 Screen modification
8.1 User definable SoftKeys buttons 66
8.2 Support of color palette 68
8.3 Transparency attribute 69
8.4 Support of Tier 4 Final symbols 70
6 back to Table of contents
InteliVision 8 measurement screens are predefined in each configuration. However if they are not a user
convenient, the user can modified them. InScreen modification (page 66)you can see the example of the
screen change.
The user can easily modify the screens himself by drag&drop with using predefined commands and pictures in
Graphical Editor, which is available for free in GenConfig. More information how to work with graphical editor
you can find in online help in GenConfig.

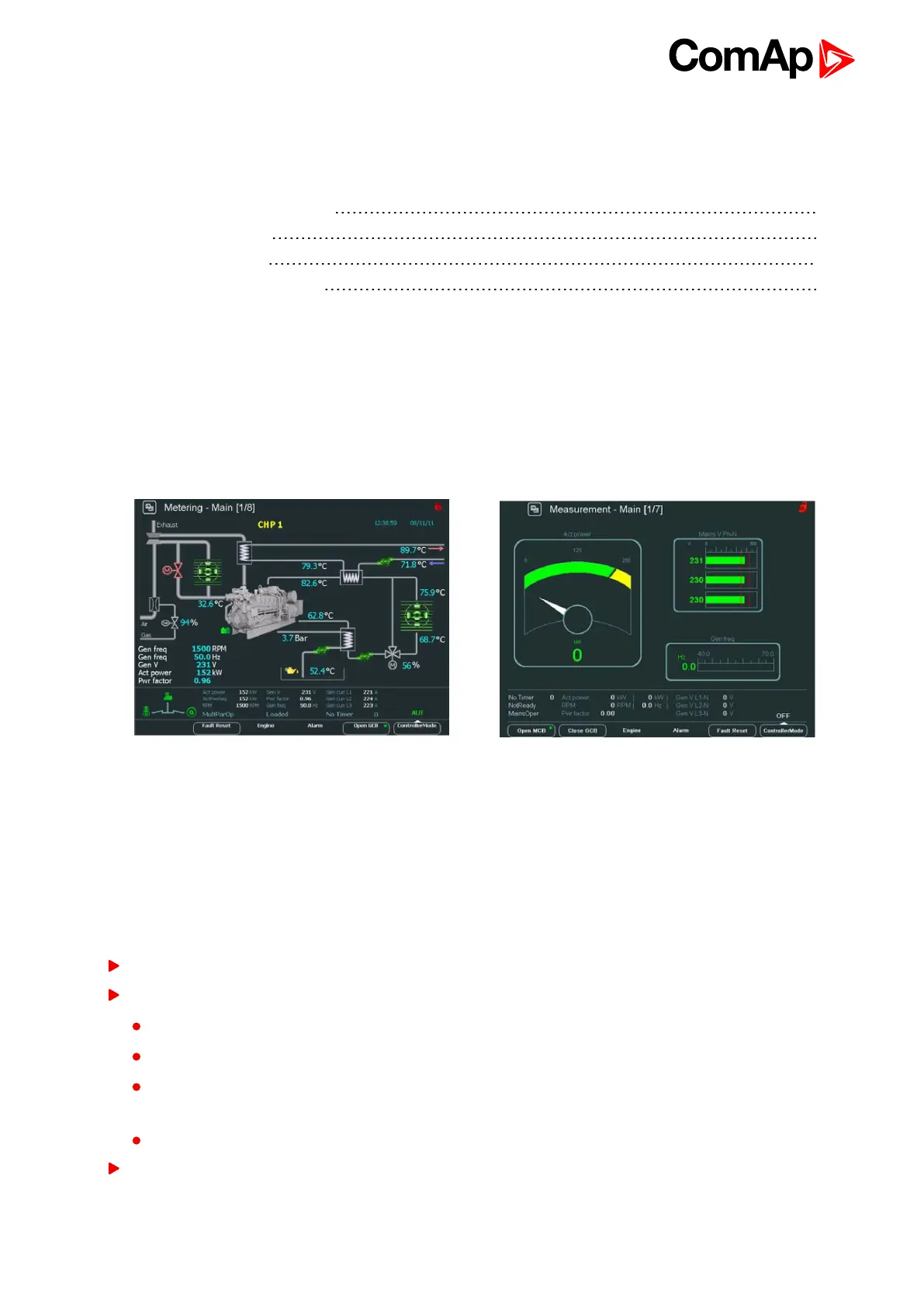

Image 8.1 Modification of the main screen of InteliVision 8
8.1 User definable SoftKeys buttons
The user has possibility to assign various functions to SoftKeys buttons - buttons on the bottom of Intelivision
see User definable SoftKeys buttons on page 66. Different functions can be assigned to any SoftKeys
button of any screen. The functions can be easily defined in new graphical Screen Editor (SE).
Pre-defined functions
Fast jump to any Measurement & Setpoints screen – SoftKeyLink command in Screen Editor
Binary signal activation - SoftKeyCmd command in Screen Editor
Set button - each press of a button sets binary signal to 1
Reset button - each press of a button sets binary signal to 0
Toggle button - 1. press set binary signal to 1 or 0 and next press set value to opposite value. Initial value
can be defined.
Pulse generator (the button generates pulse 1)
Genset commands (start, stop, MCB on, faultReset etc. ) - SoftKeyCmd command in Screen Editor
