ROBOT HANDLING, ASSEMBLY AND FIRST START
3.4.2 Connection to the electric power supply mains
To connect the Robot to the power supply:
– Check that the power supply voltage and frequency of the electric network are
compatible with the electrical characteristics of the Robot (230 V, 50 Hz
respectively);
– make sure that the Robot is powered off (main switch open in 0 - OFF position);
– connect the power cord to the power supply (A);
– connect the power cord to the Robot base (B);
– connect the power cord to the power outlet (input voltage 90÷264 Vac, frequency
47÷63 Hz) (C).

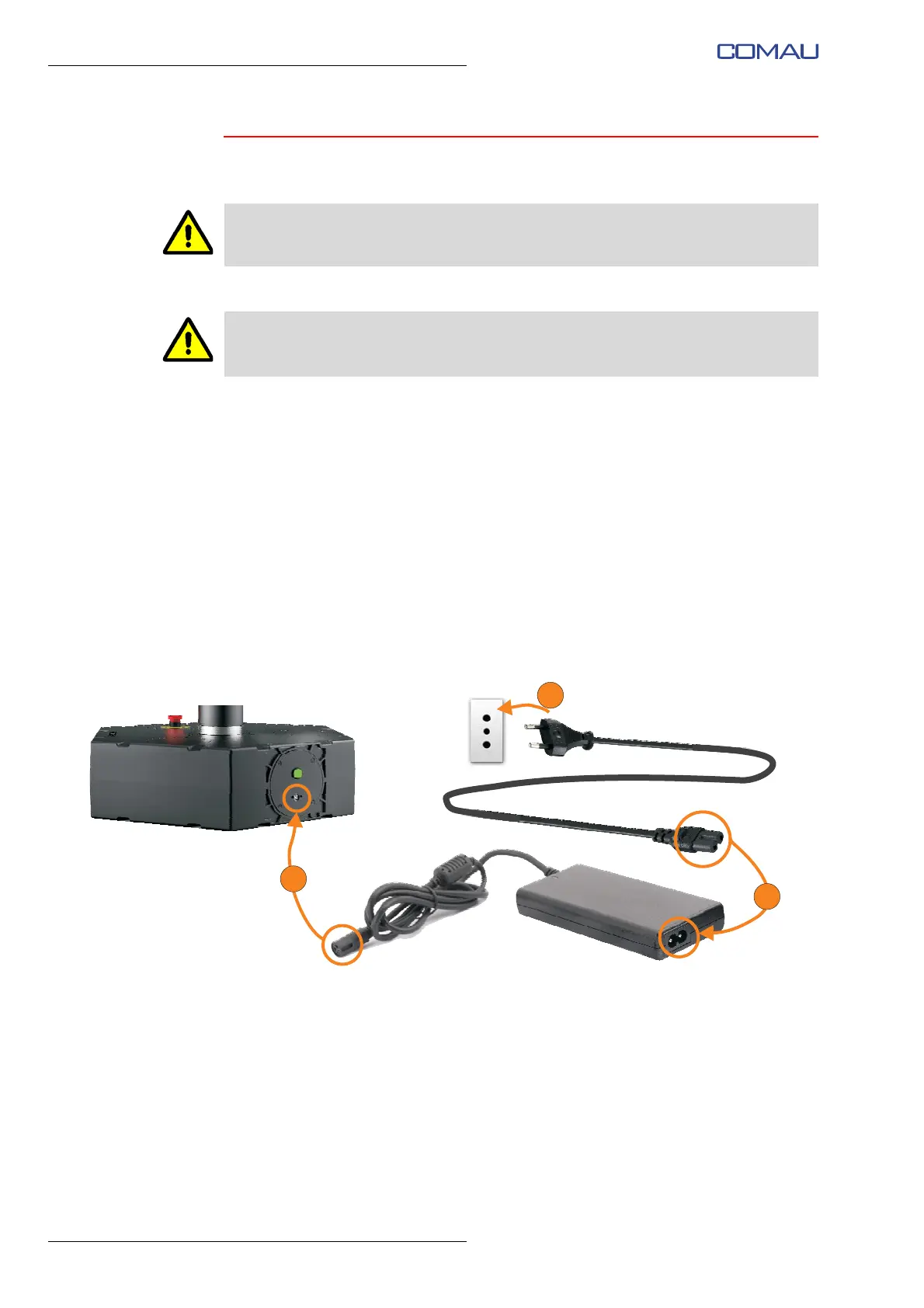

Fig. 3.2 - Connection to electrical power mains
Representative figure illustrating the power supply with European 2-pole plug (Type C - CEE 7/16)
Use only the power supply provided as standard with the Robot;
Check the integrity of the power cord and the power supply; in case the power cord is
damaged, do not connect it to the electrical mains and contact the Comau Service
Centre.
Electrical socket
90÷264 Vac
47÷63 Hz
A
B
C
