6.2.5 How to fix the marker on the e.DO Marker Holder
The e.DO Marker Holder consists of 2 main parts:
– a base flange (A) (to be fixed to the Robot)
– a marker holder (B) (to be fixed on the base flange)

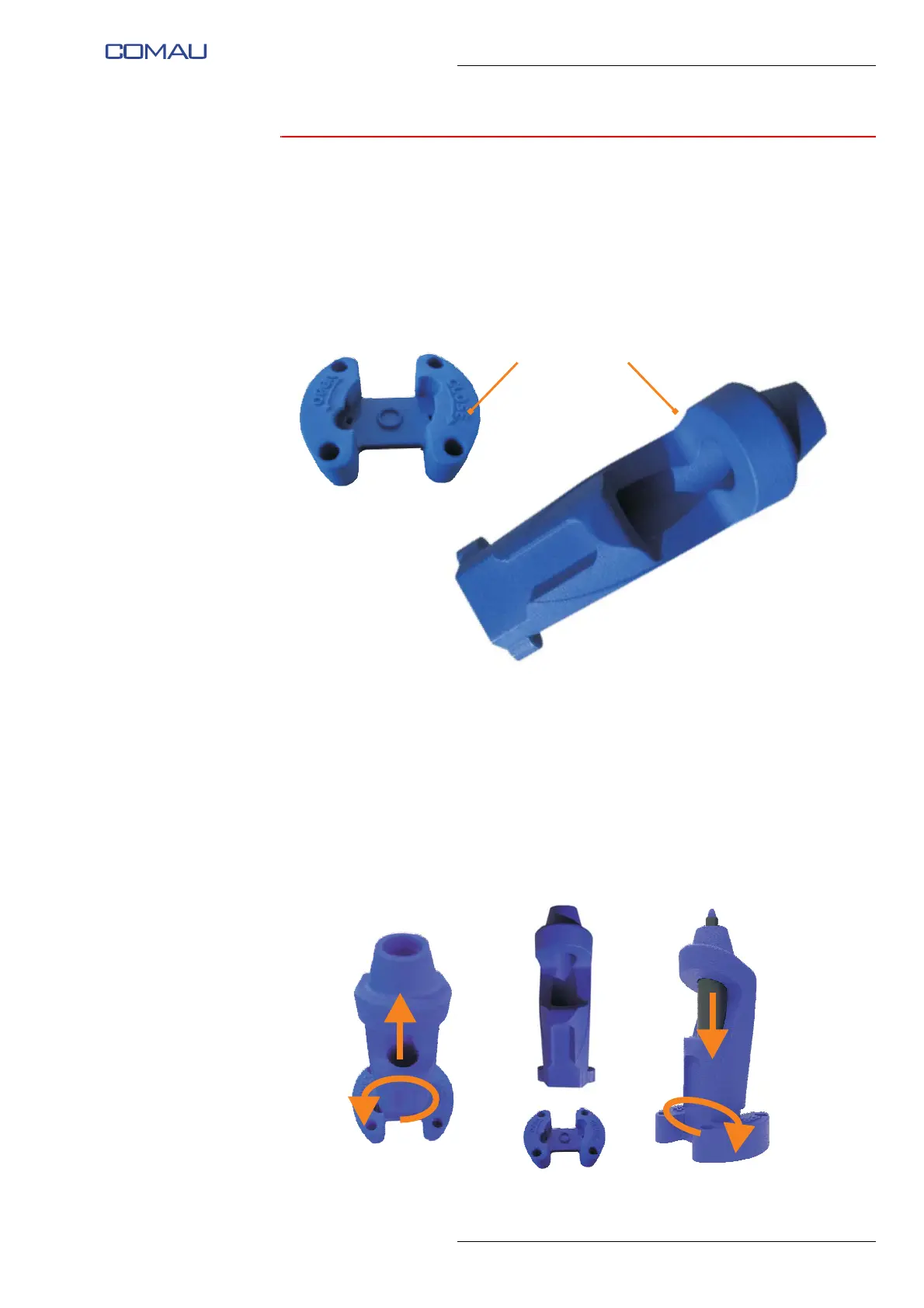

Fig. 6.3 - e.DO Marker Holder - Composition
To fix the marker on the e.DO Marker Holder you need to:
– remove the marker holder (B) from the base flange (A), turning it counterclockwise,
as indicated by the arrow “OPEN” stamped on the flange itself;
– insert the felt-tip marker into the marker holder (B);
– reposition the marker holder (B) on the base flange (A) matching the “teeth” on the
marker holder with the corresponding notches on the flange;
– fix the marker holder (B) to the base flange (A), turning it clockwise, as indicated
by the arrow “CLOSE” stamped on the flange itself.
