Comelit VIP System - Easycom Door-Entry Phone Art. 6203; VIP Switchboard Art. 1952

11
2
3
1
2
3
1
GND
AL
CFP
S-
S+
Floor door call contact terminal
Alarm contact terminal
Common terminal for alarm contact and oor door call
Ringtone repetition terminals

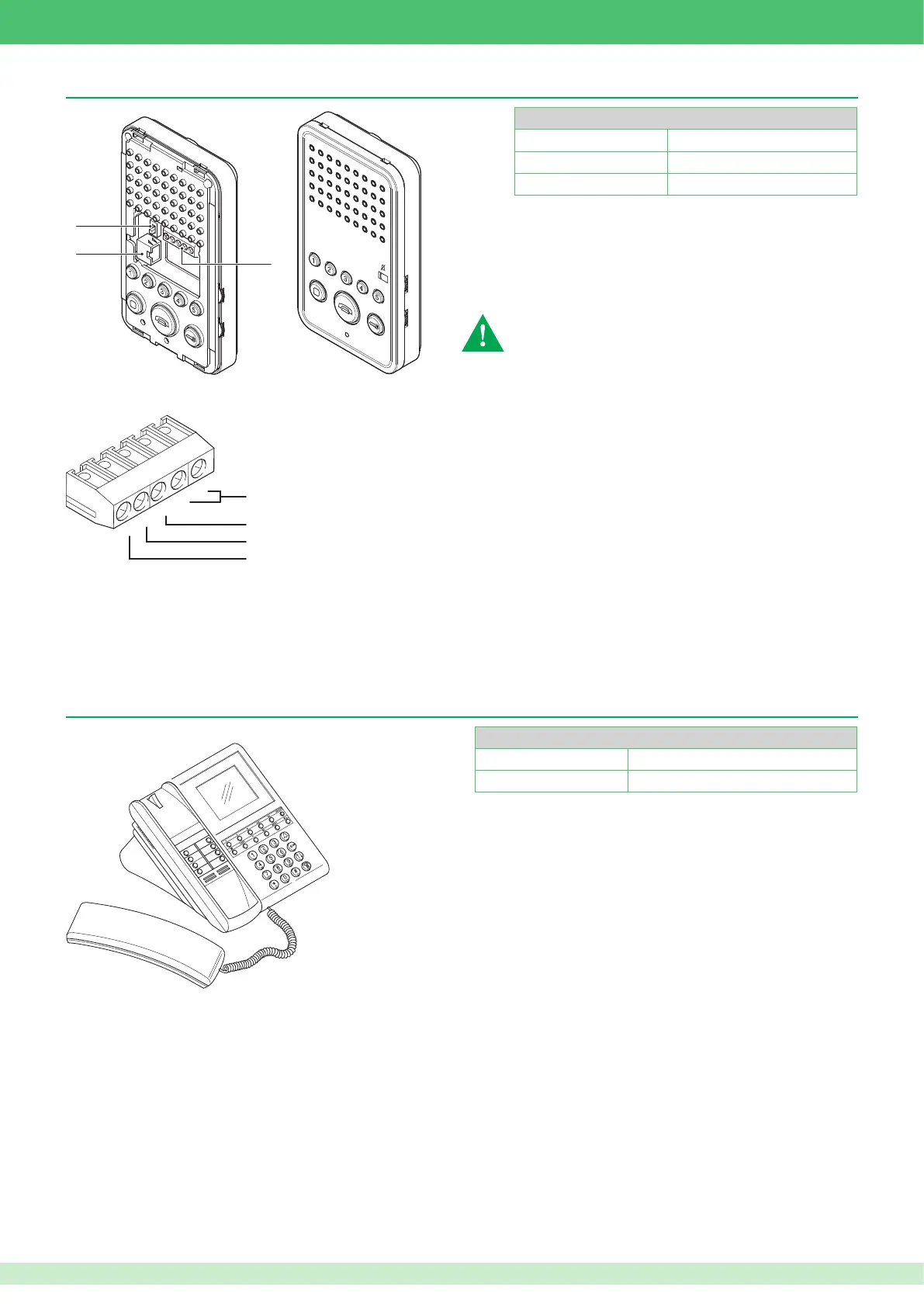

Easycom door-entry phone Art. 6203
VIP switchboard Art. 1952
1. Connection terminals
2. VIP - POE selector for tting to the latter if the internal unit is used on a standard - not VIP - PoE network
3. RJ45 Ethernet connector for connecting the internal unit to the VIP network
For wiring details, refer to the diagrams section at the end of this manual.
Use VIP Manager software Art. 1449 to congure the internal unit (see specic manual).
For wiring details, refer to the diagrams section at the end of this manual.
We recommend using VIP Manager software Art. 1449 to congure the internal unit (see specic manual). However, the main parameters can also be
congured directly, on the device itself (see page 67).
Tec hni cal ch ara cte ris tic s
Absorption Min. 0.7 W Max. 2.6 W
Power supply 36/57 Vdc 3A Max.
Dimensions H: 16 cm W: 9.1 cm D: 2.7 cm
Tec hni cal ch ara cte ris tic s
Absorption Min. 0.7 W Max. 2.6 W
Power supply 36/57 Vdc 3A Max.
The Easycom door-entry phone Art. 6203 manages up to
3 slave devices, not 15 as with other internal units.
