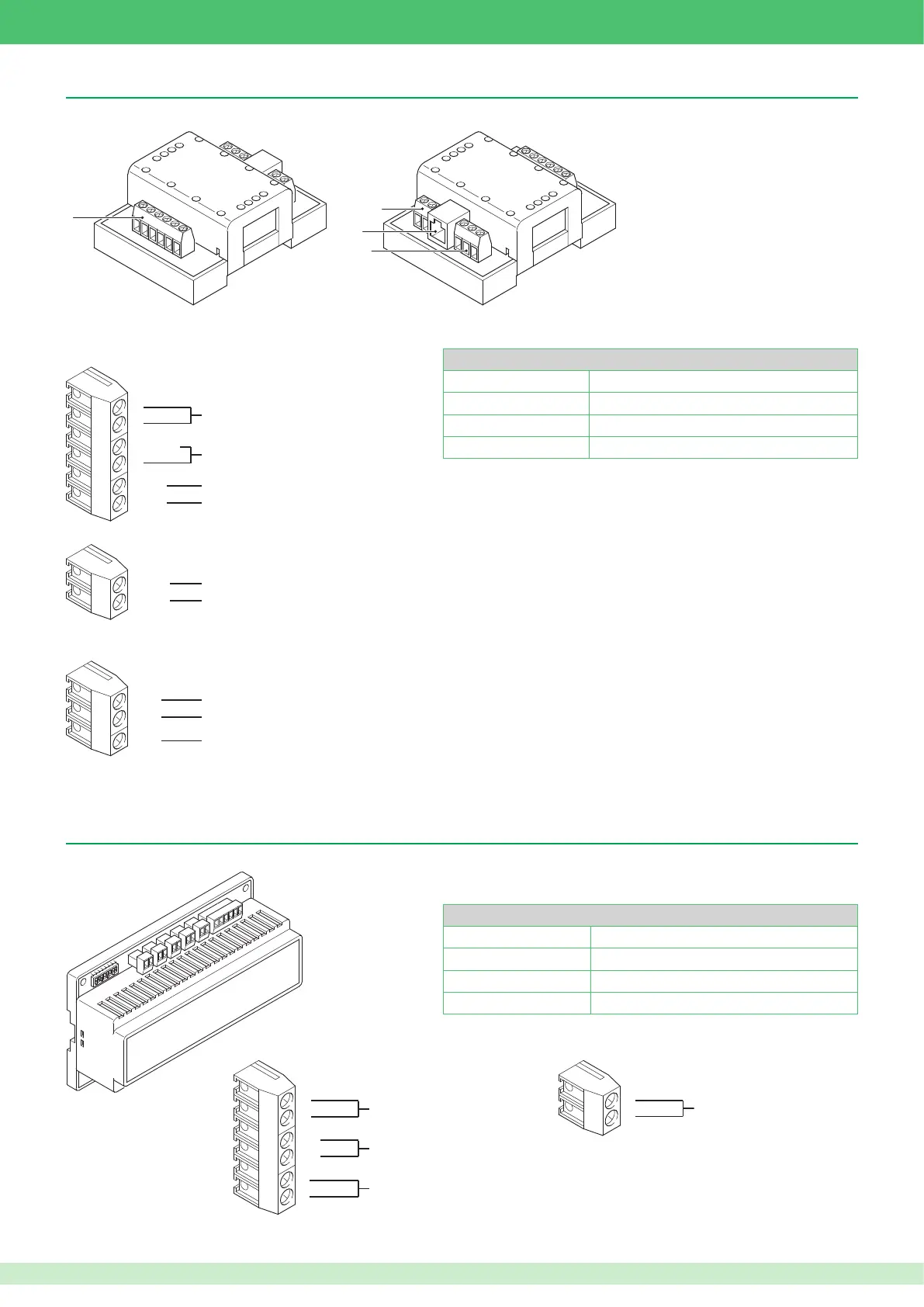

Module Art. 1446 provides an outgoing video signal from the system in PAL or NTSC format.
Tec hni cal ch ara cte ris tic s
Absorption Min. 0.7 W Max. 2.6 W
Power supply 36/57 Vdc 3A Max.
Tem per atu re t hre sho lds -30 / +55°C
Dimensions 4 DIN modules / H: 3.6 cm W: 6.5 cm D: 8.3 cm
1. Ter mi na l b lo ck fo r vi deo o utpu ts
3. Network connection Ethernet port
S-VIDEO video output terminals
CVBS video output terminals
Ter min al not us ed
Ter min al not us ed
+
-
D+
D-
A
B
Expansion module Art. SK9071 for use in conjunction with the IO module Art. 1443.
Tec hni cal ch ara cte ris tic s
Absorption Min. 0.7 W Max. 2.6 W
Power supply 12 Vdc
Tem per atu re thr esh old s -30 / +55°C
Dimensions 8 DIN modules / H: 5.5 cm W: 14 cm D: 9.5 cm
1. Connection terminal blocks
Ter min als no t u sed
Art. 1443 connection terminals
Art. 1443 12 VDC power supply terminals
A
B
J1...J10 Relay output terminals
PAL / NTSC video output module Art. 1446
Expansion module Art. SK9071
For wiring details, refer to the diagrams section at the end of this manual.
For wiring details, refer to the diagrams section at the end of this manual.
OUT 2
OUT 1
Generic open collector output terminal (in closure to GND)
Ter min al not us ed
IN2
COM
IN1
Ter min al not us ed
Ter min al not us ed
Ter min al not us ed
2. Ter mi na l b lo ck fo r op en collector outputs
4. Input terminal block
