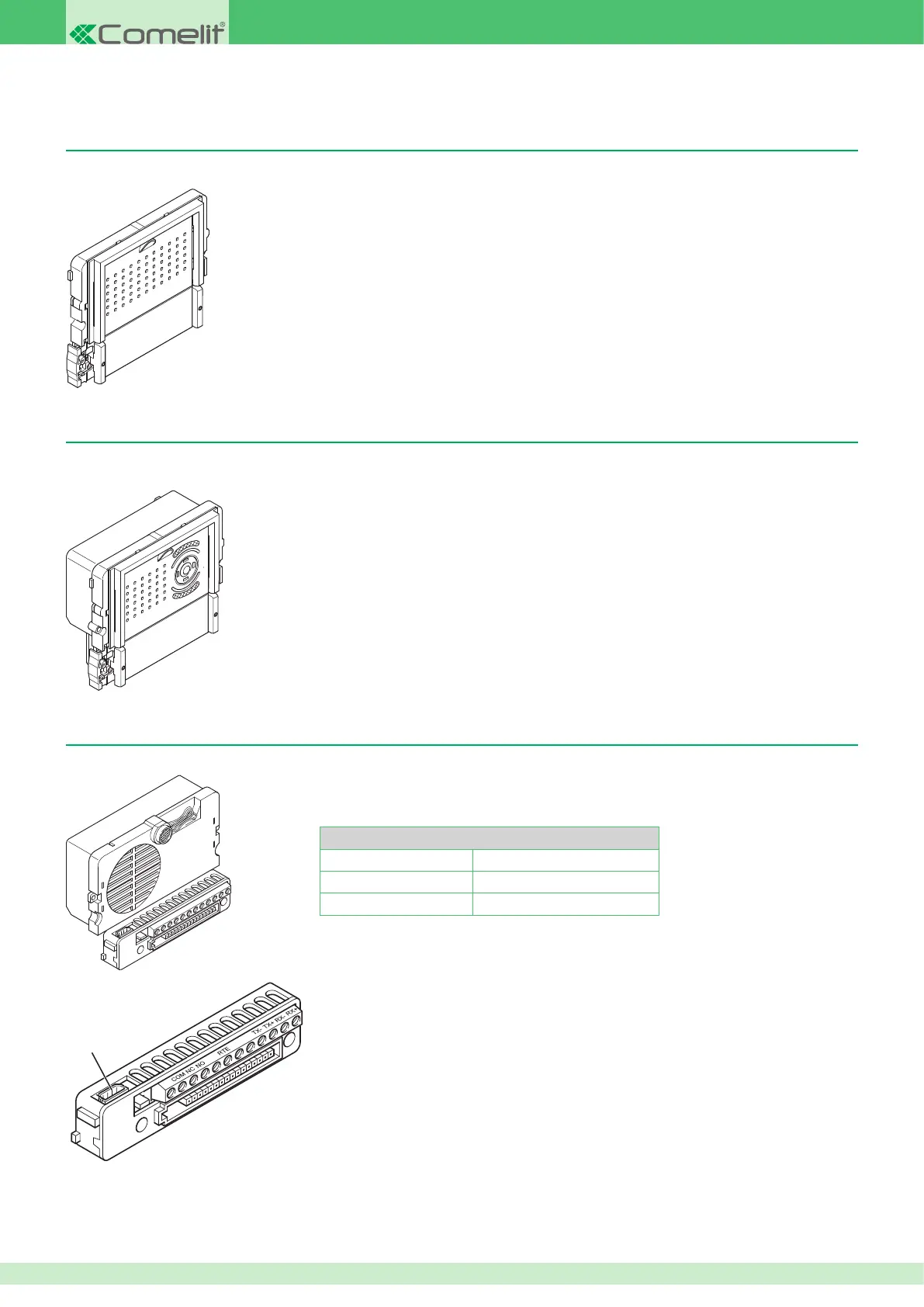

IKall series external units
Module preset for audio/video speaker units. Requires audio/video unit Art. 4682C to complete installation. Versions with 0, 1 and 2 buttons are
available.
IKall module Art. 33410 - 33411 - 33412 for audio/video units
Module with facility for audio porter units. Requires audio unit Art. 1682 to complete installation. Versions with 0, 1 and 2 buttons are available.
IKall module Art. 33400 - 33401 - 33402 for audio units
Door-entry phone porter unit for VIP system, complete with terminal block.
Tec hni cal ch ara cte ris tic s
Power supply 33 Vdc
Tem per atu re thr esh old s -30 / +55°C
Dimensions H: 10.2 cm W: 5.5 cm D: 3.5 cm
IKall series audio unit for VIP system Art. 1682
SE
GND
-V
+V
1
SE: Door lock connection terminals
NC / NO: Normally closed and normally open output terminals
COM: Common terminal
RTE / GND: Timed relay control terminals
-V +V: Power supply terminals
TX- / TX+: Ethernet transmission line terminals
RX- / RX+: Ethernet reception line terminals
For wiring details, refer to the diagrams section at the end of this manual.
1.
8-pole cable connector
