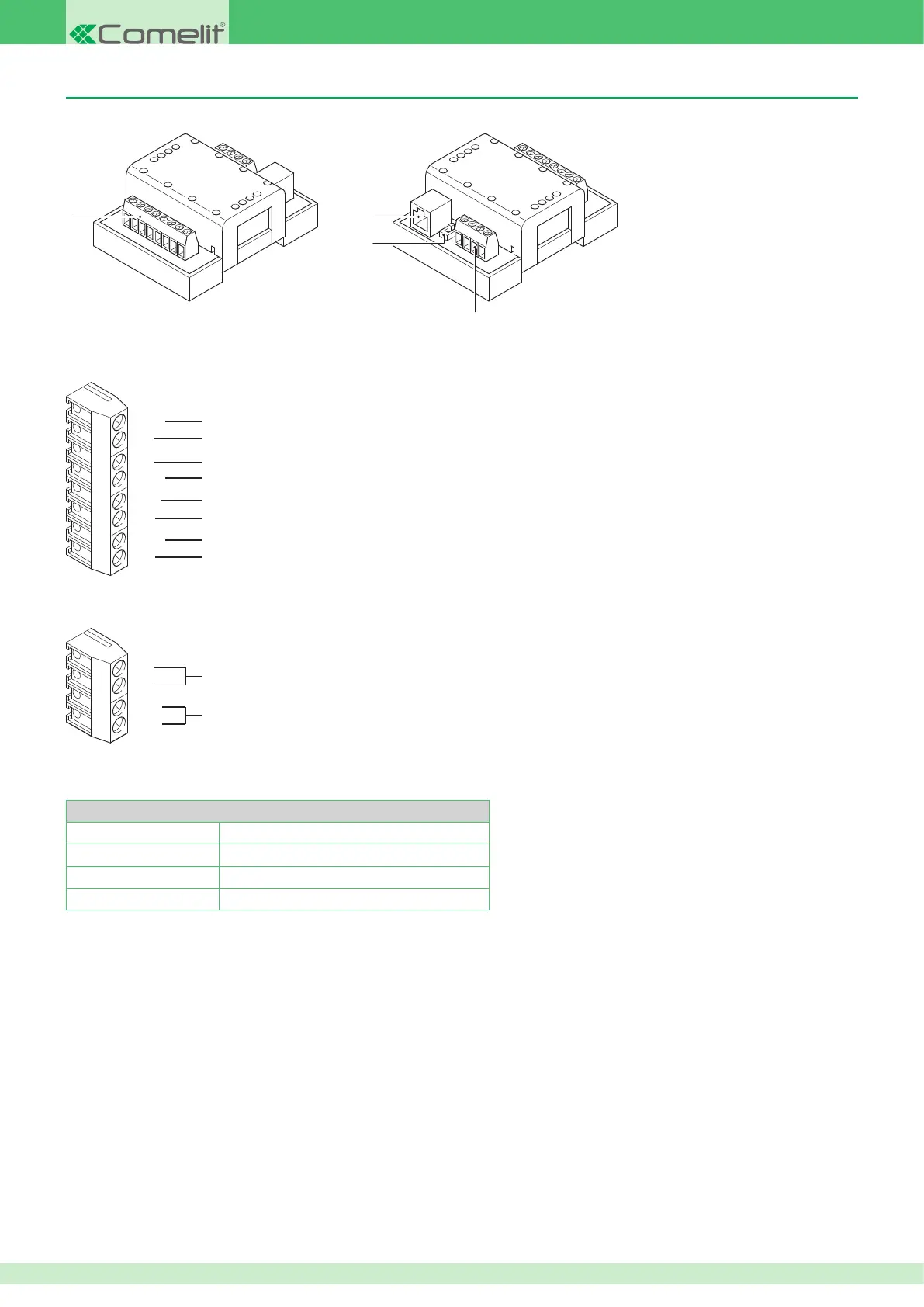

Comelit VIP System - VIP System Actuator Relay Module Art. 1443

20
NO
COM
NC
OC1
GND
IN2
IN1
GND
D-
D+
12V
GND
Art. Sk9071 12 VDC power supply terminals
1
3
2
4
1
3
2
4
IO module Art. 1443 can be used to control 1 relay on board the device itself or on board any expansion units Art. SK9071 connected to it.
Tec hni cal ch ara cte ris tic s
Absorption Min. 0.7 W Max. 2.6 W
Power supply 36/57 Vdc 3A Max.
Tem per atu re thr esh old s -30 / +55°C
Dimensions 4 DIN modules / H: 3.6 cm W: 6.5 cm D: 8.3 cm
1. Ter mi na l b lo ck fo r on -bo ar d re lay inputs and output
2. Ter mi na ls fo r con ne ct ion o f ex pa ns ion module Art. SK9071
3. Network connection Ethernet port
4. VIP - Standard POE power supply selector
Input terminal 1
Open collector output terminal
Common terminal for NC / NO
Earth terminal
Input terminal 2
On-board relay normally closed terminals
Earth terminal
Art. Sk9071 connection terminals
On-board relay normally open terminals
VIP system actuator relay module Art. 1443
For wiring details, refer to the diagrams section at the end of this manual.
