Comelit VIP System - Connection Distances from Switch Art. 1440; Repeater Art. 1447 to Door-Entry Phones; Door Entry Monitors; Connection Distances from Switch Art. 1440; Repeater Art. 1447 to Switchboard Art. 1952; Expanding a System Using Repeater Art. 1447

23
250 m
Art. 1440
Art. 1447
250 m
Art. 1440
Art. 1447
10 Mb
120 m
Art. 1440
Art. 1447
100 Mb

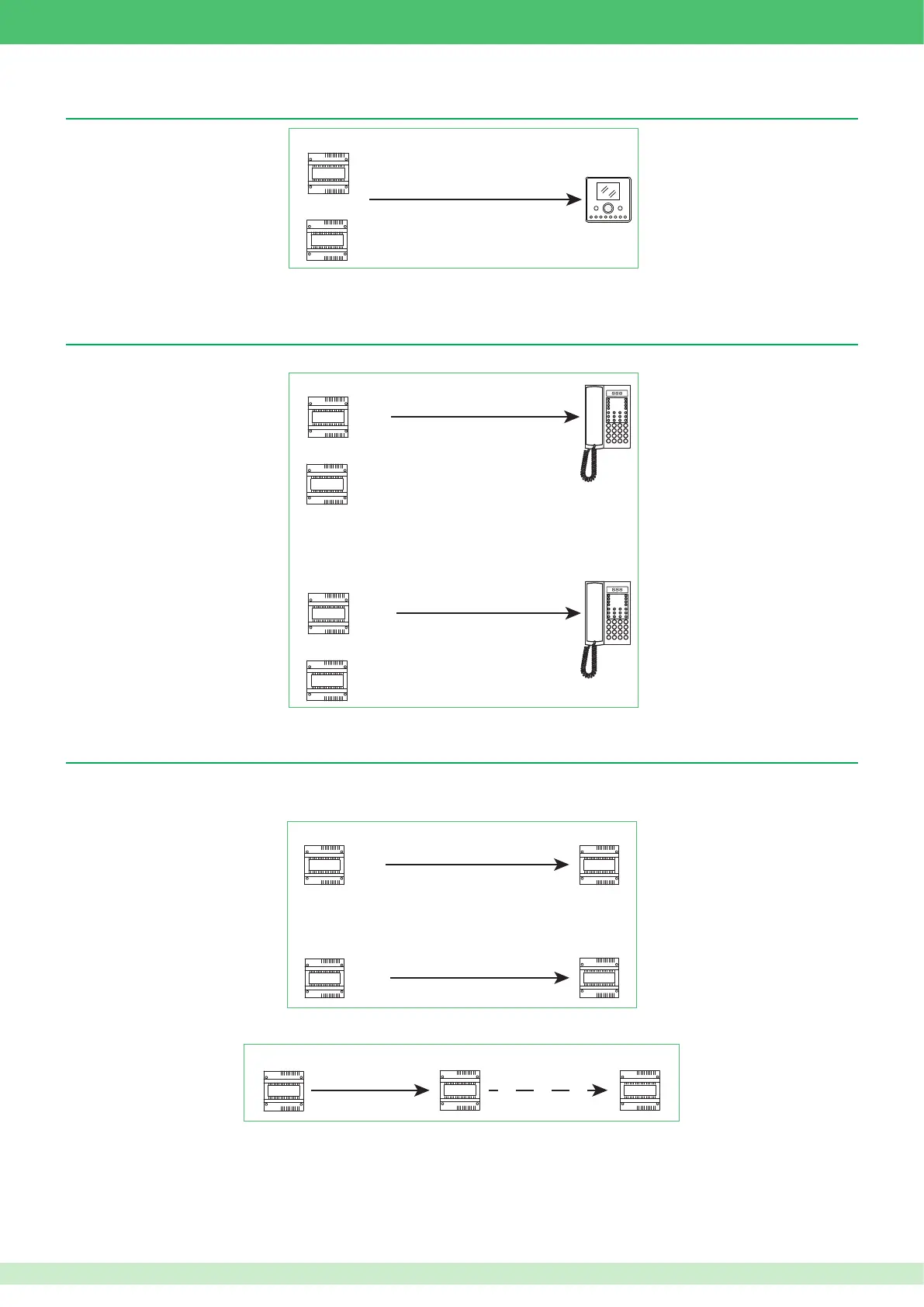

The connection distance varies depending on the port used on Switch Art. 1440.
Using the 10 Mb port
Using the 100 Mb port
Expanding a system using repeater Art. 1447
Repeaters Art. 1447 can be connected in series to increase the connection distance between two Switches Art. 1440 (Max. 8).
The connection distance between a Switch and a Repeater varies depending on the port used on Switch Art. 1440.
250 m
Art. 1440 Art. 1447
10 Mb
120 m
Art. 1440
Art. 1447
100 Mb
120 m
Art. 1447
Art. 1447
Art. 1447
120 m
The connection distance between 2 Repeaters is always 120 m.
See diagram VIP/005
Connection distances from Switch Art. 1440 / Repeater Art. 1447 to door-entry phones / door entry monitors
Connection distances from Switch Art. 1440 / Repeater Art. 1447 to switchboard Art. 1952
