Comelit VIP System - Configuring the Actuator Directory

56

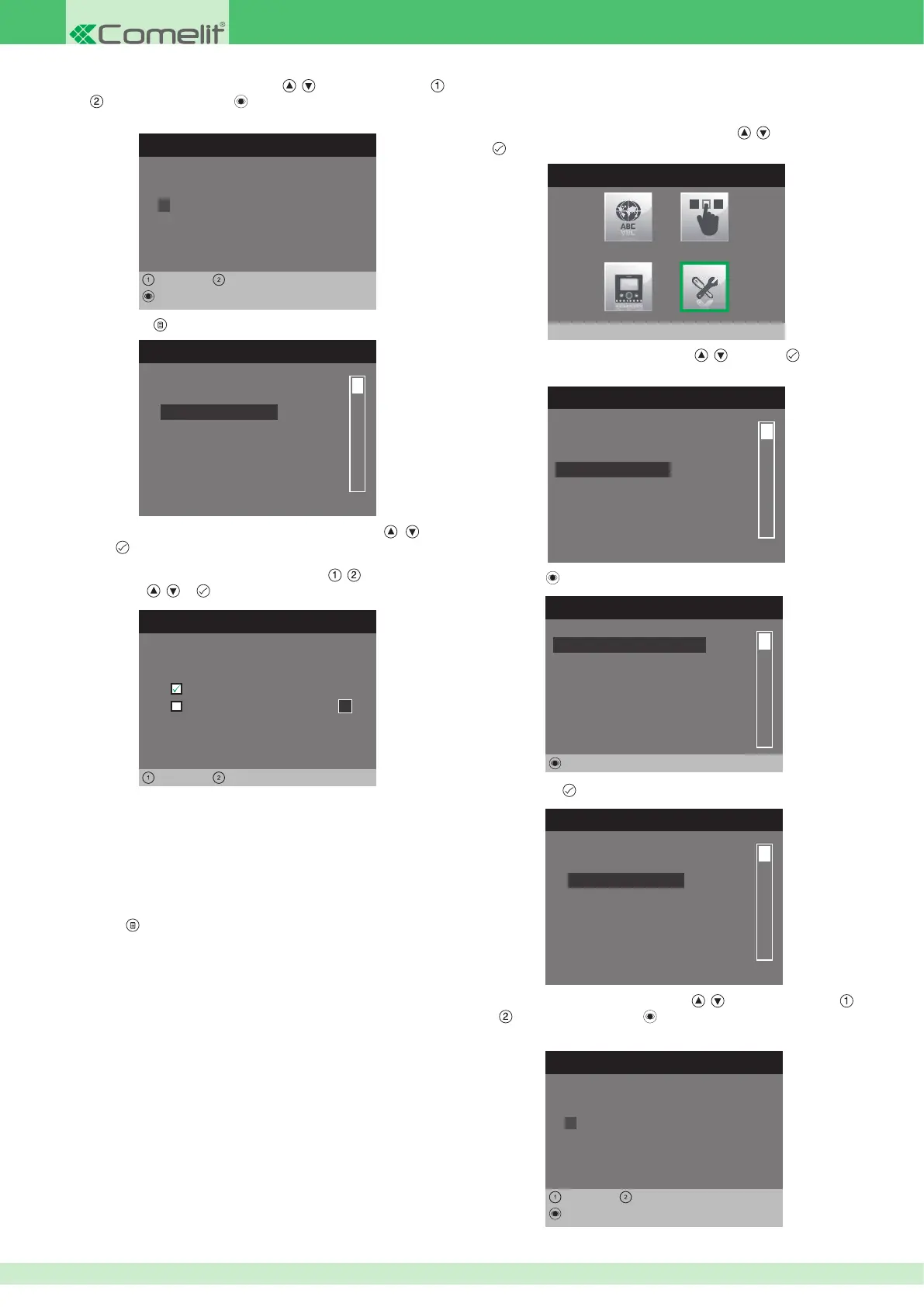

• Con guring the Actuator Directory
1. Access the installer menu.
2. Select the Special Settings menu by pressing
, and press
to access it.
INSTALLER MENU
Special Settings
3. Select the Actuator menu by pressing , and press to access
it.
SPECIAL SETTINGS MENU
Door open
Actuator
Self-ignition
Call
Alarms
Set ringtone repetition
4. Press the button.
5. Press button
to access the Con g u r e n a m e menu.
ACTUATOR DIRECTORY
Not assigned
Not assigned
Not assigned
Not assigned
Not assigned
Not assigned
Edit
6. Enter the desired name using buttons , to change the letters,
, to move right or left and to delete.
CONFIGURE DIRECTORY
Configure ViP address
Configure name
EDIT ENTRY
Configure Name
Left Right
Edit
South gate
7. Enter the desired name using buttons , to change the letters,
, to move right or left and to delete.
EDIT ENTRY
Configure Name
SMITH
Left Right
Edit
CONFIGURE DIRECTORY
Configure ViP address
Configure name
CONFIGURE VIP ADDRESS
0 0 0 0 0 1 0 1
ViP address:
Left Right
Camera number
Automatic camera
1
8. Press button to return to the previous menu.
9. Select the Con gure VIP address menu by pressing
, and
press
to access it.
10. Select the  elds which can be changed using
, and change the
value using , or .
• The VIP address functions determines the address of external unit
Art. 4662C or remote camera module Art. 1445.
• Select the Automatic camera function to link the camera for external
unit Art. 4662C.
• Select the Camera number function and enter the input number
from the 4 available when using a remote camera module Art. 1445.
11. Press
to exit and save the changes.
