Internal units

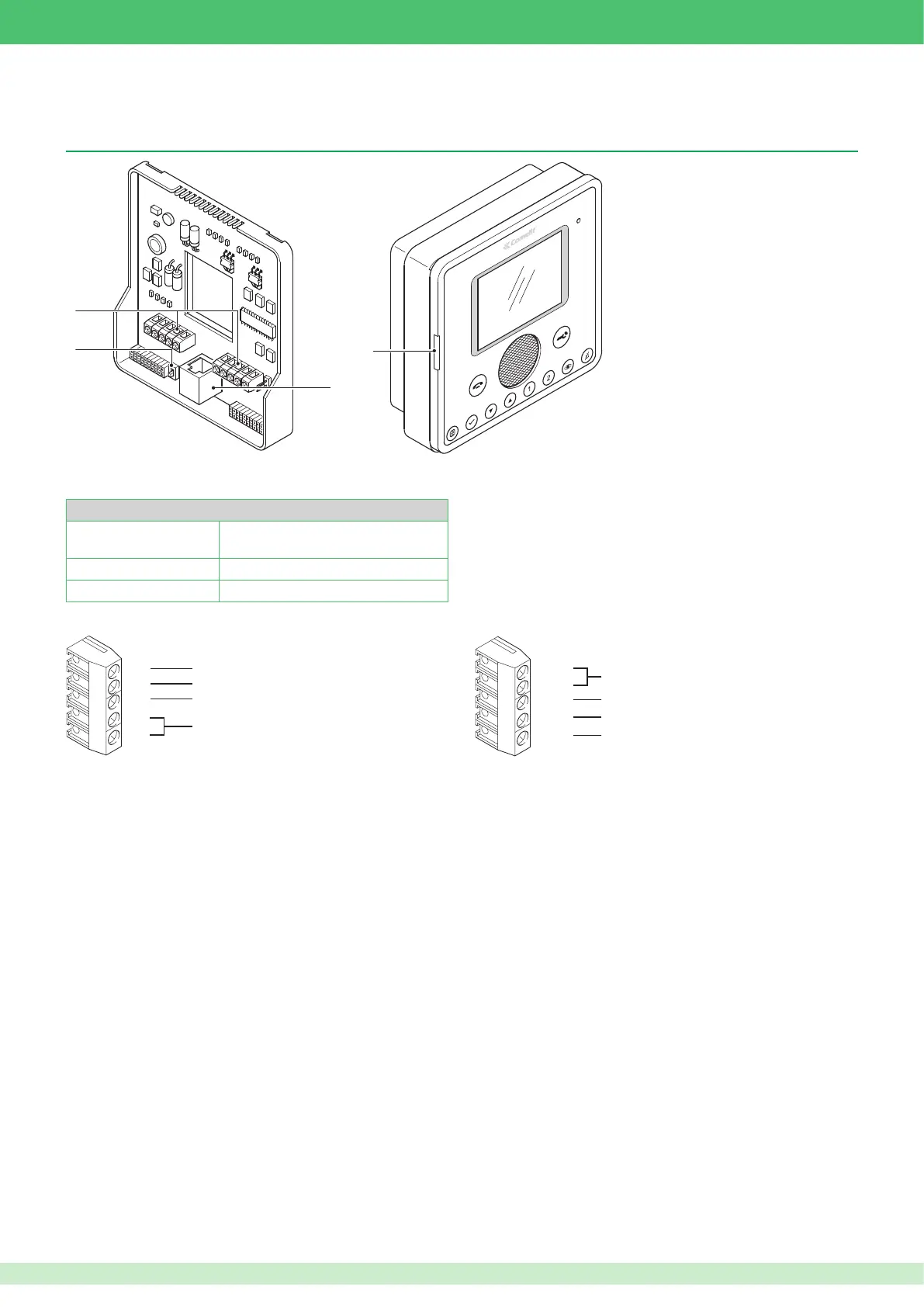

Planux backplate Art. 6231 and Planux monitor Art. 6202
1
2
3
4
0V
PAN
CFP
S+
0V
OP-
OP+
0V
AL
OUT 1
Reference for CFP and PAN terminals
Panic contact terminal
Floor door call contact terminal
Additional ringtone terminals
Optically coupled input terminals
Reference for OUT1 and AL terminals
Output terminal 12 V MAX 100 mA
Alarm contact terminal
0V
PAN
CFP
S+
0V
OP-
OP+
0V
AL
OUT 1
Tec hni cal ch ara cte ris tic s
Absorption
Min. 0.7 W Max. 2.6 W (value for
complete backplate + monitor product)
Power supply 36/57 Vdc 3A Max.
Dimensions H: 6.2 cm W: 7.2 cm D: 9 cm
1. Connection terminals
2. VIP - POE selector for tting to the latter if the internal unit is used on a standard - not VIP - PoE network
3. RJ45 Ethernet connector for connecting the internal unit to the VIP network
4. SD Card slot
For wiring details, refer to the diagrams section at the end of this manual.
We recommend using VIP Manager software Art. 1449 to congure the internal unit (see specic manual). However, the main parameters can also be
congured directly, on the device itself (see page 50).
